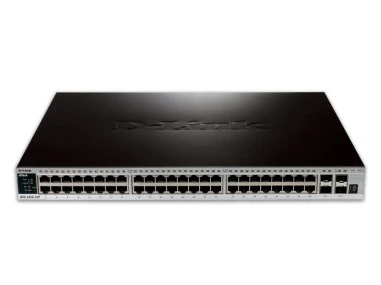

D-Link DES 3552P 10/100/1000 PoE Switch
Teknik Özellikler
| Genel Özellikler: |
| Interface |
| 48 10/100BASE-TX Ports |
| 2 10/100/1000BASE-T Ports |
| 2 Combo 10/100/1000BASE-T Ports/SFP Slots |
| RS-232 Console Port |
| PoE Support: Per 10/100BASE-TX Port3 |
| Gigabit & 100BASE-FX Fiber Support On SFP |
| Performance |
| Switching Capacity: 17.6 Gbps |
| 64-Byte Packet Forwarding Rate: 13.1 Mpps |
| Software Features |
| Diagnostic LEDs |
| 10Mbps or 100Mbps Speed (per Ethernet port) |
| 10/100Mbps or 1000Mbps Speed (per Gigabit port) |
| Link/Activity (per port) |
| Power, Console, (per device) |
| RPS (per device) |
| Stackability |
| Vir tual Stacking: |
| Supports D-Link Single IP Management (SIM) |
| Up to 32 units per Vir tual Stack |
| L2 Features |
| MAC Address Table: 16K |
| Flow Control: |
| 802.3x Flow Control |
| HOL Blocking Prevention |
| Jumbo Frames suppor t up to 9,216 bytes |
| Spanning Tree Protocol: |
| 802.1D STP |
| 802.1w RSTP |
| 802.1s MSTP |
| BPDU Filtering |
| Loopback Detection (LBD) |
| 802.3ad Link Aggregation: |
| Max. 8 groups per device, 8 por ts per group |
| Por t Mirroring: |
| One-to-one |
| Many-to-one |
| Flow-based Mirroring |
| L2 Multicasting |
| IGMP Snooping: |
| IGMP v1/v2/v3 Snooping |
| Suppor ts 256 groups |
| IGMP Snooping Fast Leave |
| Limited IP Multicasting (IGMP Filtering): |
| Up to 24 IGMP Filtering Profiles, 128 ranges per profile |
| MLD Snooping: |
| MLD v1/v2 Snooping |
| Suppor ts 256 groups |
| MLD Snooping Fast Leave |
| VLAN |
| VLAN Group: |
| Max. 4K VLAN |
| GVRP: |
| Max. 256 Dynamic VLAN |
| 802.1Q Tagged VLAN |
| Por t-based VLAN |
| 802.1v Protocol VLAN |
| Double VLAN (Q-in-Q): |
| Por t-based Q-in-Q |
| Selective Q-in-Q |
| VLAN Translation |
| MAC-based VLAN |
| ISM VLAN |
| Asymmetric VLAN |
| Quality of Service (QoS) |
| 802.1p Quality of Service |
| 8 queues per por t |
| Queue Handling: |
| Strict Priority |
| Weighted Round Robin (WRR) |
| Strict + WRR |
| CoS based on: |
| Switch Port |
| VLAN ID |
| 802.1p Priority Queues |
| MAC Address |
| IPv4/v6 Address |
| DSCP |
| Protocol Type |
| IPv6 Traffic Class |
| IPv6 Flow Label |
| TCP/UDP Por t |
| User-defined packet content |
| Actions for flows: |
| Remark 802.1p Priority Tag |
| Remark TOS/DSCP Tag |
| Bandwidth Control |
| Flow Statistics |
| Committed Information Rate (CIR), min. granularity 64Kbps |
| SRED Congestion Control |
| Bandwidth Control: |
| Por t-based (Ingress/Egress, min. granularity 64Kbps) |
| Flow-based (Ingress, min. granularity 64Kbps) |
| Time-based QoS |
| Access Control List (ACL) |
| Up to 768 Access Rules |
| ACL based on: |
| 802.1p Priority |
| VLAN ID |
| MAC Address |
| Ether Type |
| IPv4/v6 Address |
| DSCP |
| Protocol Type |
| TCP/UDP Por t Number |
| IPv6 Traffic Class |
| IPv6 Flow Label |
| User Defined packet content |
| ACL Statistics |
| Time-based ACL |
| CPU Interface Filtering |
| Security |
| SSH v2 |
| SSL v1/v2/v3 |
| Por t Security: |
| Up to 64 MAC addresses per port |
| Broadcast/Multicast/Unicast Storm Control |
| Traffic Segmentation |
| IP-MAC-Por t Binding (IMPB): |
| ARP Packet Inspection |
| IP Packet Inspection |
| DHCP Snooping |
| Supports 500 Address Binding Entries per device |
| D-Link Safeguard Engine |
| NetBIOS/NetBEUI Filtering |
| DHCP Server Screening |
| DHCP Client Filtering |
| BPDU Attack Protection |
| AAA |
| 802.1X: |
| Por t-based Access Control |
| Host-based Access Control |
| Dynamic VLAN Assignment |
| Web-based Access Control (WAC): |
| Por t-based Access Control |
| Dynamic VLAN Assignment |
| MAC-based Access Control (MAC): |
| Host-based Access Control |
| Dynamic VLAN Assignment |
| Japanese Web-based Access Contro |
| Guest VLAN |
| Suppor ts Microsoft® NAP |
| RADIUS Accounting |
| RADIUS and TACACS+ Authentication for |
| Switch Access |
| Three Level User Accounts |
| Management |
| Web-based GUI |
| Command Line Interface (CLI) |
| Telnet Server |
| TFTP Client |
| ZModem |
| SNMP v1/v2c/v3 |
| SNMP Traps |
| System Log |
| RMON v1: |
| Suppor ts 1, 2, 3, 9 groups |
| RMON v2 |
| Suppor ts ProbeConfig group |
| LLDP |
| BootP/DHCP Client |
| DHCP Auto-Configuration |
| DHCP Relay |
| DHCP Relay Option 82 |
| PPPoE Circuit-ID Tag Inser tion |
| DHCP Server |
| Dual Image |
| Dual Configuration |
| CPU Monitoring |
| NTP/SNTP |
| Password Recovery |
| Password Encryption |
| MIB |
| RFC1213 |
| RFC1493 Bridge MIB |
| RFC1907 SNMPv2 MIB |
| RFC1757, 2819 RMON MIB |
| RFC2021 RMONv2 MIB |
| RFC1643, 2358, 2665 Ether-like MIB |
| RFC2674 802.1p MIB |
| RFC2233,2863 IF MIB |
| RFC2618 RADIUS Authentication Client MIB |
| RFC2620 RADIUS Accounting Client MIB |
| RFC2925 Ping & TRACEROUTE MIB |
| D-Link Private MIB |
| IETF® Standard |
| RFC768 UDP |
| RFC783 TFTP |
| RFC791 IP |
| RFC792 ICMP |
| RFC793 TCP |
| RFC826 ARP |
| RFC854 Telnet |
| RFC951, 1542 BootP |
| RFC2068 HTTP |
| RFC2138 RADIUS |
| RFC2139,2866 RADIUS Accounting |
| RFC2474 DiffServ |
| RFC2597 DSCP AF |
| RFC2598 DSCP EF |
| RFC1492 TACACS |
| RFC1157 SNMPv1 |
| RFC1901,1908 SNMPv2c |
| RFC2570,2575 SNMPv3 |
| RFC3164,3195 Syslog |
| RFC3046 DHCP Relay Option |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
