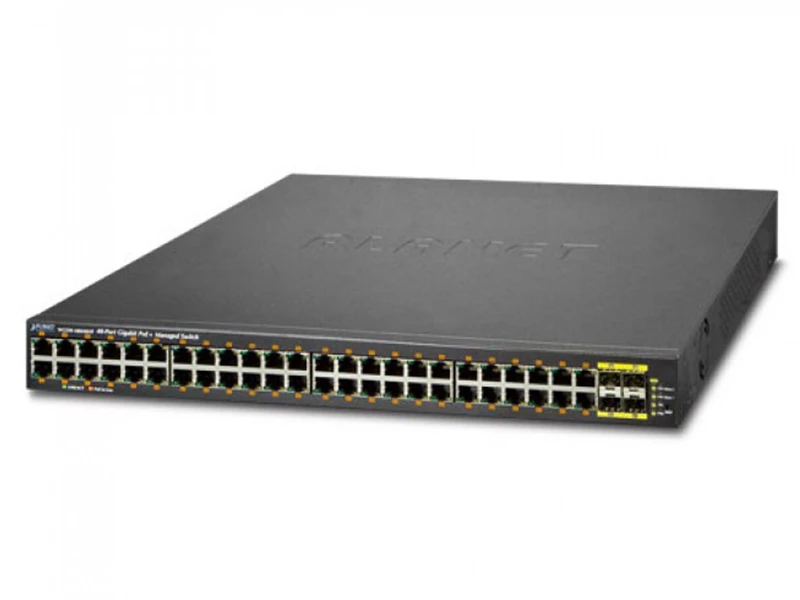

Planet PL WGSW 48040HP 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware Specifications |
| Copper Ports |
| 48 10/100/1000Base-T RJ-45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
| 4 100/1000Base-X SFP interfaces, shared with Port-45 to Port-48 |
| Compatible with 100Base-FX SFP transceiver |
| Console |
| 1 x RJ-45 to RS-232 serial port (115200, 8, N, 1) |
| Switch Architecture |
| Store-and-Forward |
| Switch Fabric |
| 96Gbps / non-blocking |
| Throughput |
| 71.4 Mpps @ 64Bytes |
| Address Table |
| 16K entries, automatic source address learning and ageing |
| Share Data Buffer |
| 16M bits |
| Flow Control |
| IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex |
| Jumbo Frame |
| 10056bytes |
| Reset Button |
| < 5 sec: System reboot |
| > 5 sec: Factory default |
| Dimensions (W x D x H) |
| 440 x 440 x 44.2 mm, 1U height |
| LED |
| System: |
| Power (Green) |
| SYS (System, Green) |
| Alert: |
| Fan Alarm 1 (Red) |
| Fan Alarm 2 (Red) |
| PoE Ethernet Interfaces (Port 1 to Port 48): |
| LNK/ACT (10/100/1000Mbps, Green) |
| PoE-in-Use (Orange) |
| 100/1000Mbps SFP Combo Interfaces (Port 45 to Port 48): |
| LNK/ACT (100/1000X, Green) |
| Power Requirements |
| 100-240V AC, 50/60Hz, 12A |
| Power Consumption |
| 722 watts / 2462 BTU |
| ESD Protection |
| 2KV DC |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3af / 802.3at PoE / PSE |
| PoE Power Supply Type |
| End-Span |
| PoE Power Output |
| Per Port 52V DC, 590mA |
| Max. 30.8 watts |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| PoE Power Budget |
| 600 watts (max.)@ 25 degrees C |
| PoE Ability |
| PD @ 11 watts: 48 units |
| PD @ 15.4 watts: 38 units |
| PD @ 30.8 watts: 19 units |
| Layer 2 Functions |
| Port Configuration |
| Port disable / enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow control disable / enable |
| Port Status |
| Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
| TX / RX / Both |
| Many-to-1 monitor |
| VLAN |
| 802.1Q Tagged-based VLAN, up to 255 VLAN groups |
| Q-in-Q tunneling |
| Private VLAN Edge (PVE) |
| MAC-based VLAN |
| Protocol-based VLAN |
| Voice VLAN |
| IP Subnet-based VLAN |
| MVR (Multicast VLAN Registration) |
| GVRP |
| Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
| IEEE 802.3ad LACP / Static Trunk |
| 24 groups of 8-Port trunk support |
| Spanning Tree Protocol |
| STP / RSTP / MSTP |
| QoS |
| Traffic classification based, Strict priority and WRR |
| 8-level priority for switching |
| - Port Number |
| - 802.1p priority |
| - 802.1Q VLAN tag |
| - DSCP/TOS field in IP Packet |
| IGMP Snooping |
| IGMP (v1/v2/v3) Snooping, up to 255 multicast groups |
| IGMP Querier mode support |
| MLD Snooping : MLD (v1/v2) Snooping, up to 255 multicast groups |
| MLD Querier mode support |
| Access Control List |
| IP-based ACL / MAC-based ACL |
| Up to 256 entries |
| Bandwidth Control |
| Per port bandwidth control |
| Ingress: 100Kbps~1000Mbps |
| Egress: 100Kbps~1000Mbps |
| Layer 3 Functions |
| IP Interfaces |
| Max. 128 VLAN interfaces |
| Routing Table |
| Max. 32 routing entries |
| Routing Protocols |
| IPv4 Static Routing |
| IPv6 Static Routing |
| Management Functions |
| Basic Management Interfaces |
| Console, Telnet, Web Browser, SNMP v1, v2c |
| Secure Management Interfaces |
| SSH, SSL, SNMP v3 |
| SNMP MIBs RFC 1213 MIB-II |
| RFC 1493 Bridge MIB |
| RFC 1643 Ethernet MIB |
| RFC 2863 Interface MIB |
| RFC 2665 Ether-Like MIB |
| RFC 2819 RMON MIB (Group 1, 2, 3 and 9) |
| RFC 2737 Entity MIB |
| RFC 2618 RADIUS Client MIB |
| RFC 2863 IF-MIB |
| RFC 3411 SNMP-Frameworks-MIB |
| RFC 4292 IP Forward MIB |
| RFC 4293 IP MIB |
| RFC 4836 MAU-MIB |
| IEEE 802.1X PAE |
| LLDP |
| PoE-Ethernet MIB |
| Standards Conformance |
| Regulation Compliance FCC Part 15 Class A, CE |
| Standards Compliance IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX/100Base-FX |
| IEEE 802.3z 1000Base-SX/LX |
| IEEE 802.3ab 1000Base-T |
| IEEE 802.3x Flow Control and Back Pressure |
| IEEE 802.3ad Port Trunk with LACP |
| IEEE 802.1D Spanning Tree protocol |
| IEEE 802.1w Rapid Spanning Tree protocol |
| IEEE 802.1s Multiple Spanning Tree protocol |
| IEEE 802.1p Class of Service |
| IEEE 802.1Q VLAN Tagging |
| IEEE 802.1x Port Authentication Network Control |
| IEEE 802.1ab LLDP |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet PLUS |
| RFC 768 UDP |
| RFC 793 TFTP |
| RFC 791 IP |
| RFC 792 ICMP |
| RFC 2068 HTTP |
| RFC 1112 IGMP version 1 |
| RFC 2236 IGMP version 2 |
| RFC 3376 IGMP version 3 |
| RFC 2710 MLD version 1 |
| FRC 3810 MLD version 2 |
