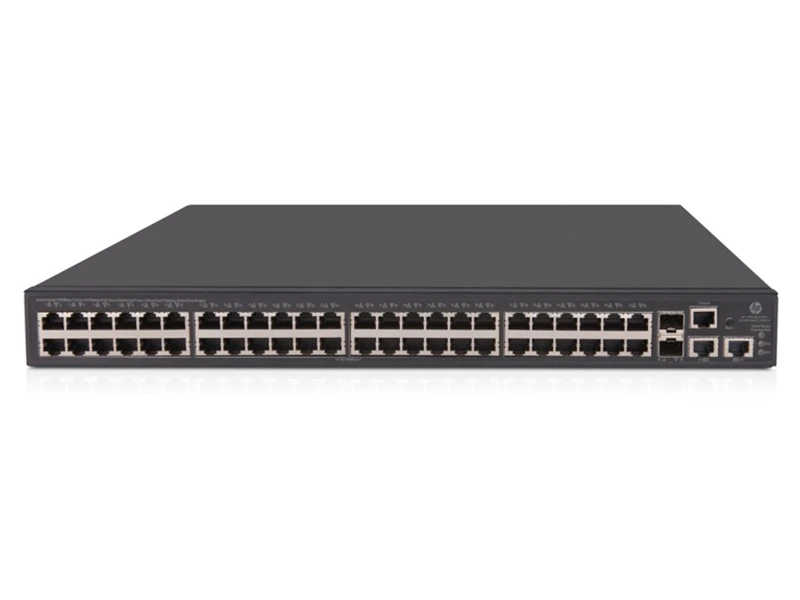

HP 1950 48G 2SFP Plus 2XGT PoE Plus JG963A 10/100/1000 PoE Switch
Teknik Özellikler
| Device Type |
| Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type |
| Rack-mountable 1U |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 10Gb Ethernet |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 370 W |
| Performance |
| Throughput (64-byte packet size): up to 130.9 Mpps ¦ Routing/switching capacity: 176 Gbps |
| Capacity |
| Static routes: 32 ¦ Virtual interfaces (VLANs): 8 ¦ IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32 |
| MAC Address Table Size |
| 16384 entries |
| Jumbo Frame Support |
| 10KB |
| Routing Protocol |
| IGMP, VRRP, static IPv4 routing, static IPv6 routing, ECMP |
| Remote Management Protocol |
| SNMP 1, RMON 2, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Features |
| Auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, Link Aggregation Control Protocol (LACP), DHCP client, packet storm protection, Class of Service(CoS) |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power |
| AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) |
| 44 cm x 42 cm x 4.4 cm |
| Weight |
| 7 kg |
HP 1950 48G 2SFP Plus 2XGT PoE Plus JG963A 10/100/1000 PoE Switch Pdf Dosyası355.11 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Güç Bütçesi : 200-400 Watt
PoE Port Sayısı :
48 Port
48 Port Aktarım Türü : 10Gbit Fiber
