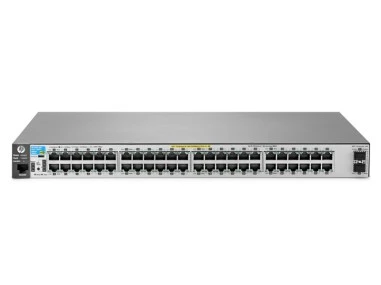

HP 2530 48 PoE Plus J9778A 10/100 PoE Switch

Teknik Özellikler

Capacity
Type:
MAC addresses
Value:
16000
Dimensions & Weight
Depth:
12.7 in
Height:
1.8 in
Weight:
10.1 lbs
Width:
17.4 in
Environmental Parameters
Humidity Range Operating:
15 - 95% (non-condensing)
Humidity Range Storage:
15 - 90% (non-condensing)
Max Operating Temperature:
113 °F
Max Storage Temperature:
158 °F
Min Operating Temperature:
32 °F
Min Storage Temperature:
-40 °F
Flash Memory
Installed Size:
128 MB
Header
Brand:
HPE
Compatibility:
PC
Country Kits:
United States
Localization:
English
Manufacturer:
ProCurve Networking
Model:
2530-48-PoESwitch
Packaged Quantity:
1
Product Line:
HPE
Interface Provided
Connector Type:
RJ-45
Interface:
Ethernet 10Base-T/100Base-TX/1000Base-T
Qty:
2
Connector Type:
SFP (mini-GBIC)
Connector Type:
RJ-45
Qty:
1
Type:
Management
Interface:
Ethernet 10Base-T/100Base-TX
Qty:
48
Miscellaneous
Authentication Method:
RADIUS , Secure Shell v.2 (SSH2) , TACACS+
Compliant Standards:
CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 , EN 60825 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Class A certified , IEC 60950-1 , IEC 61000-3-2 , IEC 61000-3-3 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC
61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , UL 60950-1 , VCCI Class A ITE
Encryption Algorithm:
SSL
Height (Rack Units):
1
Networking
Compliant Standards:
IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3at , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x
Features:
Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Class of Service (CoS) , DHCP support , Flow control , Full duplex mode , Generic Attribute Registration Protocol (GARP) , Half duplex mode , IPv6 support , LLDP support ,
Multiple Spanning Tree Protocol (MSTP) support , Port mirroring , Quality of Service (QoS) , sFlow , SNTP support , STP Root Guard , Trunking , VLAN support
Form Factor:
Desktop , Rack-mountable , Wall-mountable
Jumbo Frame Support:
9220 bytes
MAC Address Table Size:
16000 entries
Manageable:
Yes
Ports Qty:
48
Power Over Ethernet (PoE):
PoE+
Remote Management Protocol:
CLI , HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , SSH-2 , Telnet , TFTP
Subcategory:
Network hubs and switches
Subtype:
Fast Ethernet
Type:
Switch
Performance
Type:
Throughput
Value:
13 Mpps
Type:
Switching capacity
Value:
17.6 Gbps
Ports
Qty:
48
Type:
10/100
Ports (2nd)
Qty:
2
Type:
Gigabit SFP
Ports (3rd)
Qty:
2
Type:
10/100/1000
Power Device
Frequency Required:
50/60 Hz
Nominal Voltage:
AC 120/230 V
Type:
Internal power supply
Processor
Clock Speed:
800 MHz
Installed Qty:
1
Manufacturer:
ARM
RAM
Installed Size:
256 MB
Technology:
DDR3 SDRAM
Service
Support Details Full Contract Period:
Lifetime
Support Details Type:
Limited warranty
Service & Support
Type:
Limited lifetime warranty



pdfHP 2530 48 PoE Plus J9778A 10/100 PoE Switch Pdf Dosyası304.54 KB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 48 Port
Montaj Tipi : Rack Mount
Desk Mount
Wall Mount
Aktarım Türü : 10Gbit Fiber
Aktarım Port Sayısı : 4
