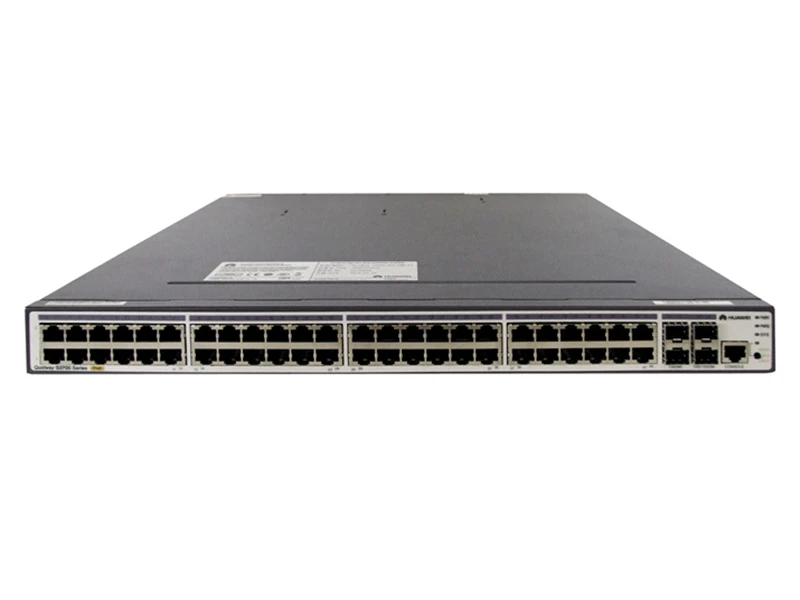

Huawei S3700 52P PWR SI 10/100 PoE Switch
Teknik Özellikler
| Ports Description |
| 48 x 10/100 Base-T |
| MAC Address Table |
| IEEE 802.1d compliance |
| 16K MAC address entries |
| MAC address learning and aging |
| Static, dynamic, and blackhole MAC address entries |
| Packet filtering based on source MAC addresses |
| VLANs |
| 4K VLANs |
| Guest VLANs, voice VLAN, and super VLAN |
| VLAN assignment based on MAC addresses, protocols, and IP subnets |
| QinQ |
| Selective QinQ |
| 1:1 VLAN mapping |
| N:1 VLAN mapping |
| Reliability |
| RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
| STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| BPDU protection, root protection, and loop protection |
| Smart Ethernet Protection (SEP) |
| IP Routing |
| Static routing, RIPv1, RIPv2, and ECMP |
| IPv6 Features |
| Neighbor Discovery (ND) |
| Path MTU (PMTU) |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet |
| Manually configured tunnel |
| 6to4 tunnel |
| ISATAP tunnel |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
| MLDv1/v2 snooping |
| Multicast |
| 1K multicast groups |
| IGMPv1/v2/v3 snooping and IGMP fast leave |
| Multicast VLAN and multicast replication between VLANs |
| Multicast load balancing among member ports of a trunk |
| Controllable multicast |
| Port-based multicast traffic statistics |
| QoS/ACL |
| Rate limiting on packets sent and received by an interface |
| Packet redirection |
| Port-based traffic policing and two-rate three-color CAR |
| Eight queues on each port |
| WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms |
| Re-marking of the 802.1p priority and DSCP priority |
| Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
| Security and Access |
| User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense |
| Binding of the IP address, MAC address, interface, and VLAN |
| Port isolation, port security, and sticky MAC |
| Blackhole MAC address entries |
| Limit on the number of learned MAC addresses |
| 802.1x authentication and limit on the number of users on an interface |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC |
| SSH v2.0 |
| CPU defense |
| Blacklist and whitelist |
| DHCP Server，DHCP Relay，DHCP Snooping，and DHCP Security |
| Surge Protection |
| 7 kV surge protection capability on service ports |
| Management and Maintenance |
| iStack |
| MAC Forced Forwarding (MFF) |
| Remote configuration and maintenance using Telnet |
| Auto-Config. |
| Virtual cable test |
| Ethernet OAM (IEEE 802.3ah and 802.1ag) |
| SNMPv1/v2c/v3 and RMON |
| MUX VLAN and GVRP |
| Web NMS |
| Operating Environment |
| Operating temperature: 0°C to 50°C (long-term); |
| Relative humidity: 10% to 90% (non-condensing) |
| Power Supply |
| AC: |
| Rated voltage range: 100V to 240V; 50/60 Hz Maximum voltage range: 90V to 264V; 50/60 Hz |
| DC: |
| Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V |
| Note: PoE-support switches do not use DC power supplies. |
| Dimensions (W x D x H) |
| 442 mm x 420 mm x 43.6 mm |
| Weight |
| 4.3 kg (without power supply) |
| Power Consumption |
| < 880W (PoE: 740W) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
