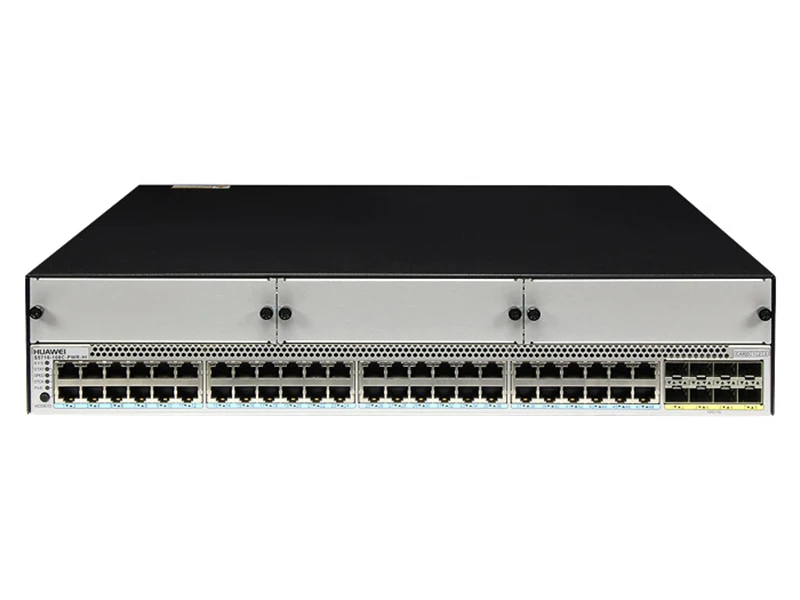

Huawei S5710 108C PWR HI 10/100/1000 PoE Switch
Teknik Özellikler
| Fixed port |
| 48*10/100/1000BASE-T, 8*10GE SFP+ |
| Extended slot |
| Three front extended slots and one rear extended slot |
| MAC address table |
| 32K MAC address entries |
| IEEE 802.1d compliance |
| MAC address learning and aging |
| Static, dynamic, and blackhole MAC address entries |
| Packet filtering based on source MAC addresses |
| VLAN |
| 4K VLANs |
| Guest VLAN and voice VLAN |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
| 1:1 and N:1 VLAN Mapping |
| Reliability |
| RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
| SEP |
| STP, RSTP, and MSTP |
| BPDU protection, root protection, and loop protection |
| BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM |
| MPLS features |
| MPLS VPLS |
| MPLS VLL |
| IP routing |
| RIPv1, RIPv2 and RIPng |
| OSPF, OSPF v3, IS-IS, IS-ISv6, BGP and BGP 4+ |
| IPv6 features |
| Neighbor Discovery (ND) |
| Path MTU (PMTU) |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
| MLD v1/v2 snooping |
| Multicast |
| IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs |
| Multicast load balancing among member ports of a trunk |
| Controllable multicast |
| Port-based multicast traffic statistics |
| IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM |
| QoS/ACL |
| Rate limiting on packets sent and received by an interface |
| Packet redirection |
| Port-based traffic policing and two-rate three-color CAR |
| Eight queues on each port |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms |
| WRED (supported by the S5700(10)-EI and S5700-HI) |
| Re-marking of the 802.1p priority and DSCP priority |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID |
| Rate limiting in each queue and traffic shaping on ports |
| Security |
| User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense |
| Binding of the IP address, MAC address, interface, and VLAN |
| Port isolation, port security, and sticky MAC |
| Blackhole MAC address entries |
| Limit on the number of learned MAC addresses |
| 802.1x authentication and limit on the number of users on an interface |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC |
| SSH v2.0 |
| Hypertext Transfer Protocol Secure (HTTPS) |
| CPU defense |
| Blacklist and whitelist |
| OAM |
| Hardware implementation |
| Software OAM |
| Management and maintenance |
| Stacking (The S5710-HI and S5700S-LI does not support this function.) |
| MAC Forced Forwarding (MFF) |
| Virtual cable test |
| Port mirroring and RSPAN (remote port mirroring) |
| Remote configuration and maintenance using Telnet |
| SNMP v1/v2/v3 |
| RMON |
| Web NMS |
| HGMP |
| System logs and alarms of different levels |
| GVRP |
| MUX VLAN |
| 802.3az EEE (supported by the S5700-LI and S5700-HI) |
| Dying gasp (supported by the S5700-LI) |
| NetStream |
| sFlow |
| Operating environment |
| Operating temperature: 0?–50? |
| Relative humidity: 10%–90% (non-condensing) |
| Input voltage |
| AC: |
| Rated voltage range: 100 V to 240 V AC, 50/60 Hz |
| Maximum voltage range: 90 V to 264 V AC, 50/60 Hz |
| DC: |
| Rated voltage range: –48 V to –60 V, DC |
| Maximum voltage range: –36 V to –72 V DC |
| Note: PoE-support switches do not use DC power supplies. |
| Dimensions (W x D x H) |
| 442x470.0x87.2 |
| Power consumption |
| <1680w |
| (PoE:1440W) |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 8
Aktarım Türü : 10Gbit Fiber
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
