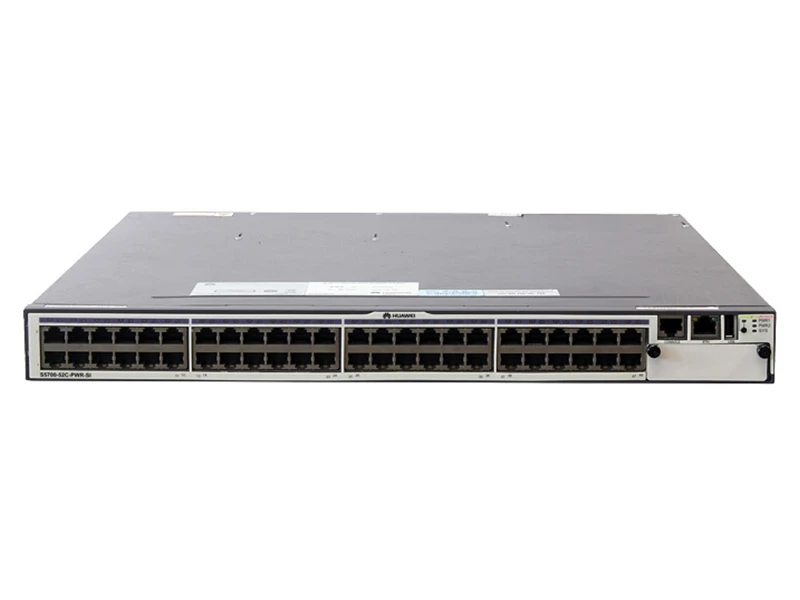

Huawei S5700 52C PWR SI 10/100/1000 PoE Switch
Teknik Özellikler
| Fixed Ports |
| 48 × 10/100/1,000 Base-T |
| Extended Slots |
| The S5700-28C and S5700-52C provide two extended slots, one for an uplink subcard and the other for a stack card. |
| MAC Address Table |
| IEEE 802.1d compliance |
| 16K MAC address entries |
| MAC address learning and aging |
| Static, dynamic, and blackhole MAC address entries |
| Packet filtering based on source MAC addresses |
| VLAN |
| 4K VLANs |
| Guest VLAN and voice VLAN |
| GVRP |
| MUX VLAN |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
| 1:1 and N:1 VLAN Mapping |
| Reliability |
| RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
| SEP |
| ERPS (G.8032) |
| STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| BPDU protection, root protection, and loop protection |
| IP Routing |
| Static route, RIPv1, RIPv2, RIPng, and ECMP |
| IPv6 Features |
| Neighbor Discovery (ND) |
| Path MTU (PMTU) |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
| MLD v1/v2 snooping |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel |
| Multicast |
| IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs |
| Multicast load balancing among member ports of a trunk |
| Controllable multicast |
| Port-based multicast traffic statistics |
| QoS/ACL |
| Rate limiting on packets sent and received by an interface |
| Packet redirection |
| Port-based traffic policing and two-rate three-color CAR |
| Eight queues on each port |
| WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms |
| Re-marking of the 802.1p priority and DSCP priority |
| Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source |
| MAC address, destination MAC address, source |
| IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID |
| Rate limiting in each queue and traffic shaping on ports |
| Security |
| User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense |
| Binding of the IP address, MAC address, interface, and VLAN |
| Port isolation, port security, and sticky MAC |
| Blackhole MAC address entries |
| Limit on the number of learned MAC addresses |
| 802.1x authentication and limit on the number of users on an interface |
| AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC |
| SSH v2.0 |
| Hypertext Transfer Protocol Secure (HTTPS) |
| CPU defense |
| Blacklist and whitelist |
| 802.1x authentication, MAC address authentication, and combined authentication on a per port basis |
| Portal authentication on a per VLANIF interface basis |
| Management and Maintenance |
| Stacking (not supported by S5700-26X-SI-12S-AC) |
| MAC Forced Forwarding (MFF) |
| Virtual cable test |
| SNMP v1/v2c/v3 |
| RMON |
| Web-based NMS |
| System logs and alarms of different levels |
| Interoperability |
| Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) |
| Supports VCMP (Similar to VTP) |
| Operating Environment |
| Operating temperature: 0°C to 50°C |
| Relative humidity: 5% to 95% (non-condensing) |
| Input Voltage |
| AC: |
| Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz |
| DC: |
| Rated voltage range: –48V to –60V, Maximum voltage range: –36V to –72V |
| Note: PoE-support switches do not use DC power supplies. |
| Dimensions (W x D x H) |
| 442 mm x 420 mm x 43.6 mm |
| Power Consumption |
| PoE model: <917w poe:="" 740w="" --917w--=""> |
Huawei S5700 52C PWR SI 10/100/1000 PoE Switch Pdf Dosyası1.12 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Türü : Gbit Fiber
Aktarım Port Sayısı : 2
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
