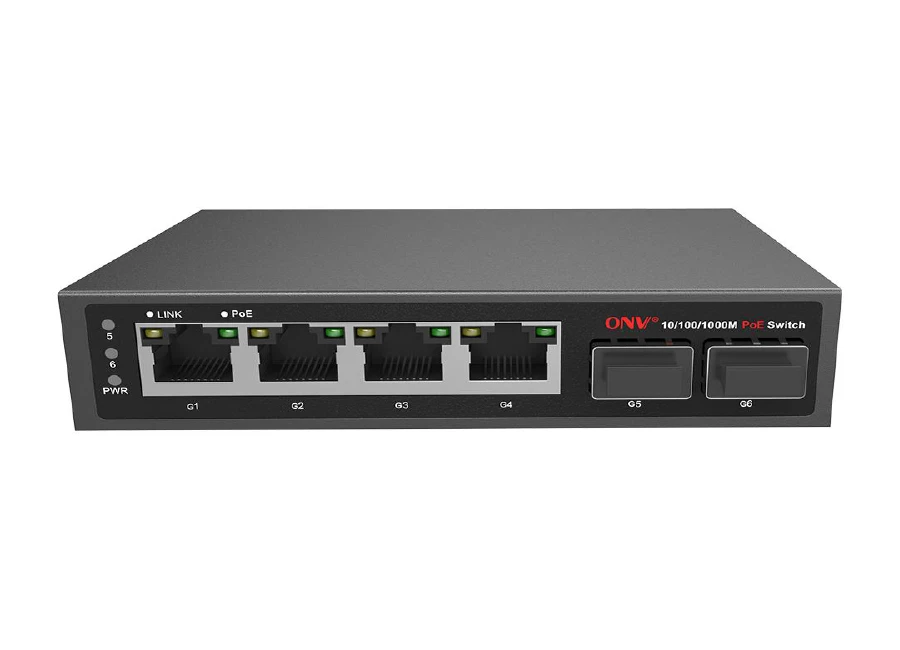

ONV ONV-POE33064PF PoE Switch
Özellikler
Teknik Özellikler
| Model | ONV-POE33064PF |
| Interface Characteristics | |
| Fixed Port | 4*10/100/1000Base-T PoE ports (Data /Power) |
| 2*1000Base-X uplink SFP slot ports (Data) | |
| Ethernet Port | Port 1-4 can support 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
| SFP Slot Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable | Multi-mode: 850nm 0 ~ 500M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 12Gbps (Non-blocking) |
Forwarding Rate@64byte | 8.93Mpps |
| MAC | 2K |
| Buffer Memory | 2M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (green), network: Link(yellow), POE: PoE (green) |
| Reset Switch | Yes, One-button factory reset |
| PoE & Power | |
| PoE Port | Port 1 to 4 IEEE802.3af/at @ POE |
| Power Supply Pin | Default 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 65W/(DC52V) |
| Power Consumption | Standby<5W, Full load<65W |
| Power Supply | External power adapter, |
| AC100~240V 50-60Hz 1.1A | |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
| Dimension (L*W*H) | 118*95*28mm |
| Net /Gross Weight | <0.35kg / <1.0kg |
| Installation | Desktop, wall-mounted |
| Certification & Warranty | |
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Certification | CCC,CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
| Warranty | 3 years, lifelong maintenance. |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Wall Mount
Desk Mount
PoE Port Sayısı :
4 Port
4 Port
