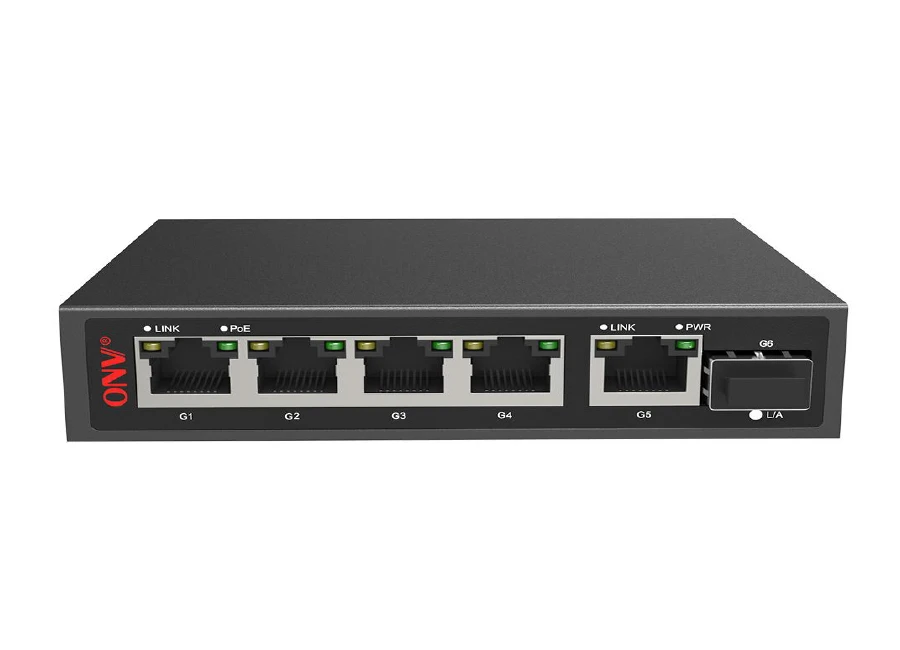

ONV ONV-POE33064PFG PoE Switch
Özellikler
Teknik Özellikler
Model | ONV-POE33064PFG |
Interface Characteristics | |
Fixed Port | 4*10/100/1000Base-T PoE ports(Data/Power) |
1*10/100/1000Base-T uplink RJ45 port (Data) | |
1*1000Base-X SFP fiber port slots (Data) | |
Ethernet Port | Port 1-5 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter) | |
1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance | Multi-mode: 850nm/0 ~ 550M, Single-mode: 1310nm/ 0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
Chip Parameter | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T | |
IEEE802.3z 1000Base-X, IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 12Gbps |
Forwarding Rate@64byte | 8.93Mpps |
MAC | 2K |
Buffer Memory | 2M |
LED Indicator | Power: PWR (green), network: Link(yellow), POE: PoE (green) |
Reset Switch | Yes, One-button factory reset |
PoE & Power Supply | |
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE |
Power Supply Pin | Default 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) |
Max Power Per Port | 30W; IEEE802.3af/at |
Total PWR / Input Voltage | 65W/(DC52V) |
Power Consumption | Standby<5W, Full load<65W |
Power Supply | External power adapter, |
AC100~240V 50-60Hz 1.1A | |
Physical Parameter | |
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
Dimension (L*W*H) | 118*95*28mm |
Net /Gross Weight | <0.35kg / <1.0kg |
Installation | Desktop, wall-mounted |
Certification & Warranty | |
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
Certification | CCC,CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B RoHS |
Warranty | 3 years, lifelong maintenance. |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
Wall Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
