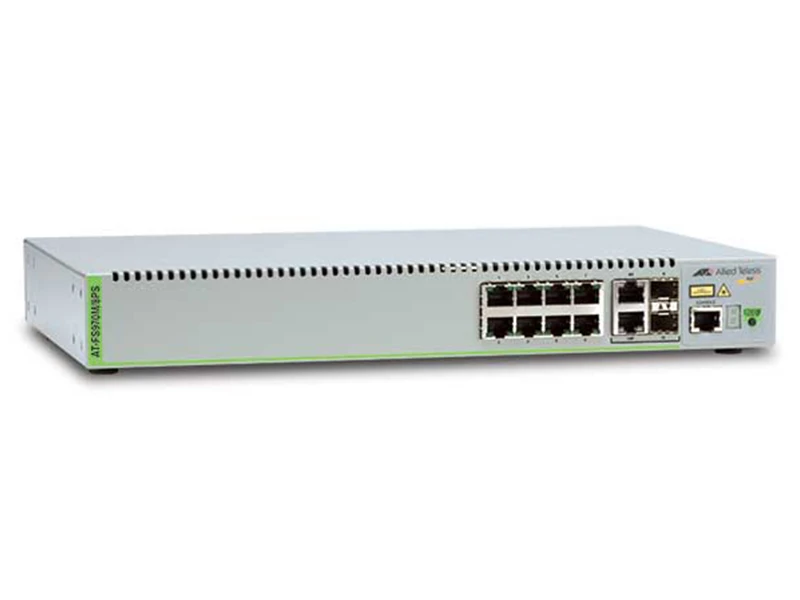

Allied Telesis AT FS970M/8PS E 10/100 PoE Plus Switch
{tab Teknik Özellikler}
| General |
| Device Type |
| Switch - 8 ports - managed |
| Subtype |
| Fast Ethernet |
| Ports |
| 8 x 10/100 + 2 x combo Gigabit Ethernet/Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 185 |
| Performance |
| Switching capacity : 5.6 Gbps |
| Forwarding performance : 4.1 Mpps |
| Jumbo Frame Support |
| 9198 bytes |
| Authentication Method |
| Extensible Authentication Protocol (EAP), RADIUS, TACACS+ |
| RAM |
| 128MB |
| Flash Memory |
| 16MB |
| MAC Address Table Size |
| 16K entries |
| Authentication Method |
| RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Power Over Ethernet (PoE) |
| PoE+ |
| Encryption Algorithm |
| LEAP, TLS, SSL 3.0, PEAP, TTLS |
| Routing Protocol |
| RIP-1, RIP-2, IGMPv2, IGMP, static IP routing |
| Jumbo Frame Support |
| 9198 bytes |
| PoE Budget |
| 185 W |
| Manufacturer |
| Allied Telesyn |
| Networking |
| MAC Address Table Size |
| 16K entries |
| Subcategory |
| network hubs and switches |
| Subtype |
| Fast Ethernet |
| Form Factor |
| desktop, rack-mountable |
| Type |
| switch |
| Features |
| 802.1x authentication, ARP support, GARP VLAN Registration Protocol (GVRP), IPv4 support, IPv6 support, LACP support, LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Network Access Control (NAC), Network Access |
| Protection (NAP), PoS (Packet over SONET), Access Control List (ACL) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, STP Root Guard, Spanning Tree Protocol (STP) support, Syslog support, VLAN support, VoIP support, |
| auto-negotiation, auto-uplink (auto MDI/MDI-X), BOOTP support, event log, flow control, front to back airflow, full duplex mode, packet storm protection, port mirroring, sFlow, tagged VLAN, uplink, Broadcast Storm Control, DHCP client, DHCP relay, DHCP snooping, DiffServ |
| Code Point (DSCP) support, Dynamic VLAN Support (GVRP) |
| Compliant Standards |
| IEEE 802.1AX, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac |
| Jumbo Frame Support |
| 9198 bytes |
| Ports Qty |
| 8 |
| Manageable |
| Yes |
| Routing Protocol |
| IGMP, IGMPv2, RIP-1, RIP-2, static IP routing |
| PoE Budget |
| 185 |
| Remote Management Protocol |
| CLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet |
| Power Over Ethernet (PoE) |
| PoE+ |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 47 - 63 Hz |
| Power Consumption Operational |
| 230 Watt |
| Type |
| internal power supply |
| Camera |
| Installed Size |
| 16 MB |
| Interface Provided |
| Qty |
| 2, 8 |
| PoE Power |
| 30 |
| Comments |
| PoE+ |
| Miscellaneous |
| Compliant Standards |
| FCC Class A certified, TUV, C-Tick, CISPR 22 Class A, EN55024, EN55022 Class A, RoHS, UL 60950-1, EN 60950-1, EN 60825, cULus, VCCI Class A |
| Rack Mounting Kit |
| included |
| Encryption Algorithm |
| LEAP, PEAP, SSL 3.0, TLS, TTLS |
| Color Category |
| white |
| Height (Rack Units) |
| 1 m |
| Processor |
| Clock Speed |
| 266 MHz |
| RAM |
| Installed Size |
| 128 MB |
| Environmental Parameters |
| Min Operating Temperature |
| 32 °F |
| Max Operating Temperature |
| 122 °F |
| Min Storage Temperature |
| -13 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Operating |
| 5 - 90% (non-condensing) |
| Header |
| Brand |
| Allied Telesis |
| Product Line |
| Allied Telesis AT |
| Model |
| FS970M/8PS-E |
| Country Kits |
| United States |
| Packaged Quantity |
| 1 |
| Compatibility |
| PC |
| Dimensions & Weight |
| Depth |
| 8 in |
| Width |
| 13 in |
| Height |
| 1.7 in |
| Weight |
| 5.07 lbs |
| Cable Details |
| Type |
| network cable |
| Included Qty |
| 1 |
| Included accessories |
| Cables Included |
| 1 x network cable |
| Ports |
| Type |
| 10/100 |
| Qty |
| 8 |
| Performance |
| Type |
| forwarding performance, switching capacity |
| Value |
| 4.1 Mpps, 5.6 Gbps |
| Ports (2nd) |
| Type |
| combo Gigabit Ethernet/Gigabit SFP |
| Qty |
| 2 |
| General |
| Manufacturer |
| Allied Telesyn |
{/tabs
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
Aktarım Türü : Combo
