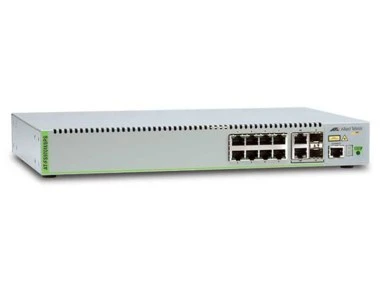

Allied Telesis AT 8000 8POE 10/100 PoE Switch
Teknik Özellikler
Environmental Parameters |
Humidity Range Operating: |
10 - 90% |
Max Operating Temperature: |
113 °F |
Min Operating Temperature: |
32 °F |
Header |
Brand: |
Allied Telesis |
Compatibility: |
PC |
Country Kits: |
United States |
Manufacturer: |
Allied Telesis |
Model: |
8000/8POE |
Packaged Quantity: |
1 |
Product Line: |
Allied Telesis AT |
Interface Provided |
Comments |
PoE |
Connector Type |
RJ-45 |
Qty |
8 |
Type |
100Base-TX |
Comments |
Management |
Connector Type |
DB-9 |
Qty |
1 |
Type |
Console |
Type |
1000Base-T |
Connector Type |
SFP (mini-GBIC) |
Miscellaneous |
Authentication Method |
RADIUS |
Compliant Standards |
cUL , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Class A certified , UL 1950 , VCCI Class A ITE |
Height (Rack Units) |
1 |
Rack Mounting Kit |
Included |
Networking |
Auxiliary Network Ports |
1x10/100/1000Base-T/SFP (mini-GBIC) |
Cabling Type |
Ethernet 100Base-TX , Ethernet 10Base-T |
Communication Mode |
Full-duplex , Half-duplex |
Compliant Standards |
IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.1x , IEEE 802.3ab , IEEE 802.3ac , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3i , IEEE 802.3u , IEEE 802.3x |
Connectivity Technology |
Wired |
Features |
Auto-negotiation , Auto-sensing per device , BOOTP support , Broadcast Storm Control , DHCP support , IGMP snooping , Layer 2 switching , Port mirroring , Store and forward , Syslog support , VLAN support |
Form Factor |
Desktop |
MAC Address Table Size |
8K entries |
Manageable |
Yes |
Ports Qty |
8 |
Remote Management Protocol |
HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2 , Telnet |
Status Indicators |
Link activity , Port status |
Subcategory |
Network hubs and switches |
Subtype |
Fast Ethernet |
Switching Protocol |
Ethernet |
Type |
Switch |
Power Device |
Frequency Required |
50/60 Hz |
Nominal Voltage |
AC 120/230 V |
Type |
Internal power supply |
Slot Required |
Type |
None |
Dimensions & Weight |
Depth |
9 in |
Height |
1.7 in |
Weight |
4.85 lbs |
Width |
13 in |
Ports |
Qty |
8 |
Type |
10/100 (PoE) |
Ports (2nd) |
Qty |
1 |
Type |
Combo Gigabit SFP |
RAM |
Installed Size |
20 MB |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
