Açıklama

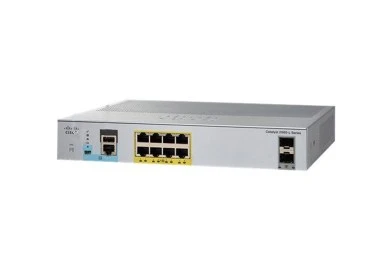

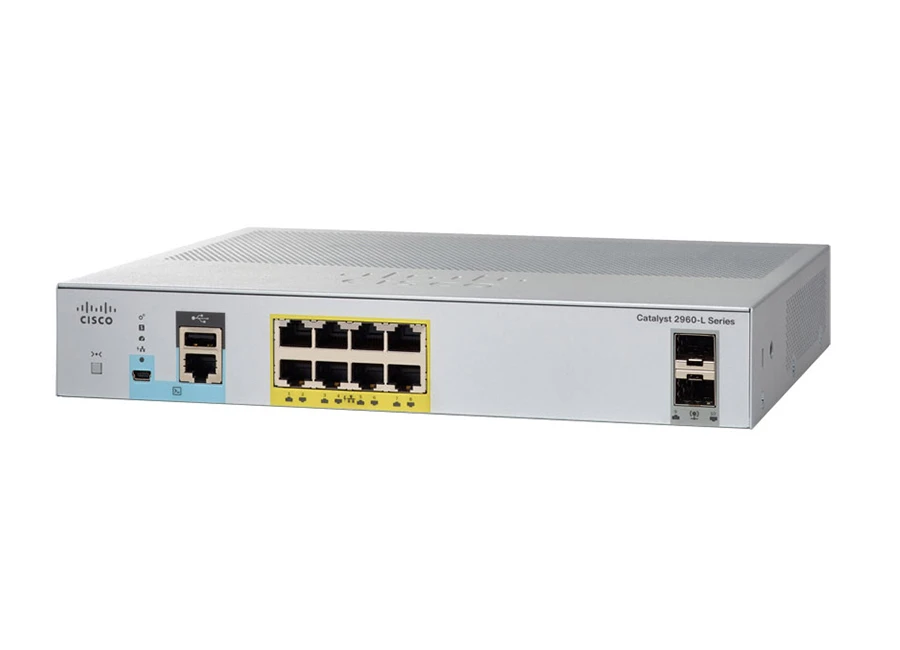

Cisco Catalyst 2960L SM 8PS PoE Switch

Teknik Özellikler

Product Description	Cisco Catalyst 2960L-SM-8PS - switch - 8 ports - smart - rack-mountable
Device Type	Switch - 8 ports - L3 - smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	67 W
Performance	Switching bandwidth: 20 Gbps
	Forwarding bandwidth: 10 Gbps
	Forwarding rate: 14.88 Mpps
Capacity	VLANs supported: 4094
	Active VLANs: 256
	VLAN IDs: 4094
	IPv4 routes (static): 16
	IPv6 routes (static): 16
	STP instances: 64
	SPAN sessions: 4
MAC Address Table Size	16000 entries
Jumbo Frame Support	10240 bytes
Routing Protocol	IGMP, MLDv2, MLD
Remote Management Protocol	SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Features	DHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), SNMP support, IGMP filtering, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Power	AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)	26.8 cm x 24 cm x 4.4 cm
Weight	2.04 kg
Manufacturer Warranty	Limited lifetime warranty
