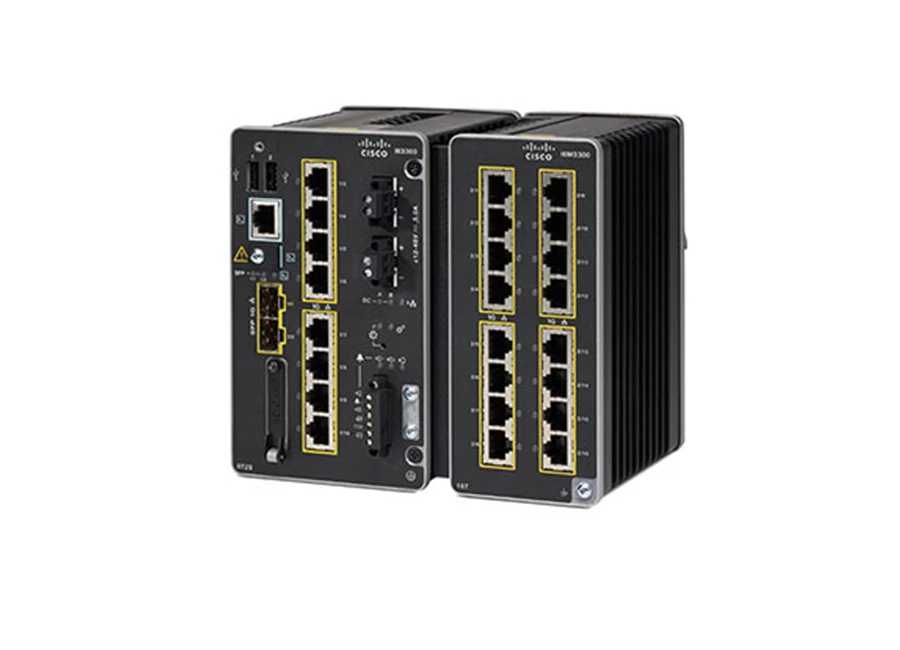

Cisco Catalyst IE 3300 8P2S E PoE Switch

Actual Weight
- 3.80 lbs
Contents
- Switch, documentation
General
- Color: Black
General Information
- Number of queues: 8
- Unicast MAC addresses: 8K
- Internet Group Management Protocol IGMP multicast groups: 1K
- VLAN IDs: 256
- Spanning Tree Protocol STP instances: 128
- Access Control Lists PACL: 1.5K
Memory
- RAM installed: 2 GB
- RAM Technology: DRAM
Memory Notes
- 2GB DRAM
- 1.5GB Flash
Operating System
- OS Provided: Cisco IOS XE
Physical Dimensions
- 6"h x 3.6"w x 5.3"d
Ports/Connectors
- 8 100/1000 Copper PoE+
- 2 100/1000 Fiber SFP
- 1 RS-232 via RJ-45
- 1 USB mini Type B
- 1 open SD slot for optional SD card max 4GB
Power Notes
- PoE Budget including expansion module: 360W
- Inputs: Dual DC
- Voltage range: Redundant DC input voltage: nominal 9.6 to 60VDC
- 48VDC is required for PoE and 54VDC is required for PoE+
- Max input current: 10.6A
- Consumption: 35W
Protocols
- Networking Protocol: Gigabit Ethernet, PoE+
- Remote Management Protocol: DHCP, NTP, SCP, SNMP, SNMP 3, SSH
- Routing Protocol: IGMP, IGMPv2, IGMPv3
