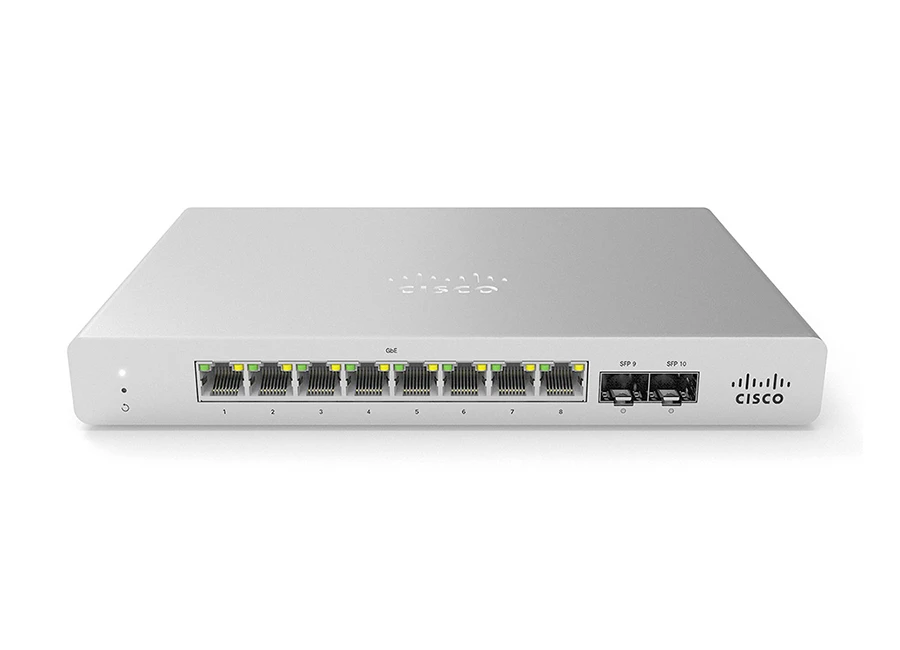

Cisco Meraki MS120 8FP HW PoE Switch

Teknik Özellikler

MS120-8FP-HW
Interfaces	- 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
Interfaces	- 2 x 1GbE SFP uplink
Switching capacity	20 Gbps
Forwarding rate	14.88mpps with standard packet size
Available PoE+ Power	124 W
Idle / Full Load Power	9 / 161 W
Power Supply Configuration	Fixed internal
Power Supply/Model Number	DC 56V/2.7A, 150W
What’s included	1 x Mounting screw kit and anchor
Dimensions	1.75 x 8.97 x 8.58” (4.4 x 22.7 x 23cm)
Weight	3.42 lb (1.55 kg)
Management	- Managed via the Web with the Meraki cloud management platform
	- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
	- Zero-touch remote provisioning (no staging needed)
	- Detailed historical per-port and per-client usage statistics
	- DHCP, client, and hostname fingerprinting
	- SNMPd and SYSLOG support for integration with other network management solutions
	- Automatic firmware upgrades with scheduling control
Layer 3	- DHCP Relay
Remote Diagnostics	- Email, SMS and Mobile push notification alerts
	- Cable testing and link failure detection with alerting
	- Live remote packet capture
	- Dynamic and interactive network discovery and topology
	- Combined event and configuration change logs with instant search
Stacking	Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Power	- Power input: 100 - 240 VAC, 47-63 Hz
Power	- Power consumption: 5 - 161W
Mounting	-Wall or utility board mountable with included mount hardware
	-Desktop-mountable with included feet
	-Kensington lock slot included
Ethernet Switching Capabilities	- 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
	- 802.1Q VLAN and trunking support for up to 4,094 VLANs
	- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
	- Broadcast storm control
	- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
	- 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
	- Port mirroring
	- IGMP snooping for multicast filtering
	- MAC forwarding entries: 16K
Environment	- Operating temperature: 0°C to 45°C
	- Humidity: 5 to 95% non-condensing
	- Fanless operation
Regulatory	- CSA-US (US, Canada)
	- FCC (USA)
	- IC (Canada)
	- CE (Europe)
	- RCM (Australia/New Zealand)
	- RoHS
Security	- Integrated two-factor authentication for Dashboard management
	- Role-based access control (RBAC) with granular device and configuration control
	- Corporate wide password policy enforcement
	- IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
	- Multi-Domain/Multi-Host/Multi Authentication
	- Port security: Sticky MAC, MAC whitelisting
	- DHCP snooping, detection and blocking, Dynamic ARP Inspection
	- STP Enhancements: BPDU guard, Root guard, Loop guard
	- IPv4 and IPv6 ACLs
MTBF Ratings	347,479
