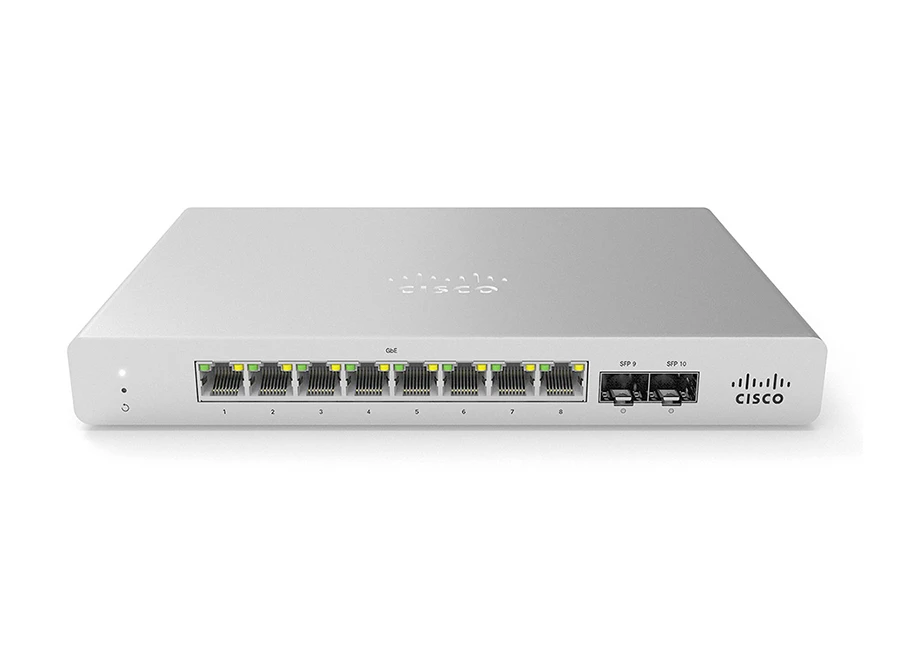

Cisco Meraki MS120 8LP HW PoE Switch
Teknik Özellikler
MS120-8FP-HW | |
Interfaces | - 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) |
- 2 x 1GbE SFP uplink | |
Switching capacity | 20 Gbps |
Forwarding rate | 14.88mpps with standard packet size |
Available PoE+ Power | 124 W |
Idle / Full Load Power | 9 / 161 W |
Power Supply Configuration | Fixed internal |
Power Supply/Model Number | DC 56V/2.7A, 150W |
What’s included | 1 x Mounting screw kit and anchor |
Dimensions | 1.75 x 8.97 x 8.58” (4.4 x 22.7 x 23cm) |
Weight | 3.42 lb (1.55 kg) |
Management | - Managed via the Web with the Meraki cloud management platform |
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions | |
- Zero-touch remote provisioning (no staging needed) | |
- Detailed historical per-port and per-client usage statistics | |
- DHCP, client, and hostname fingerprinting | |
- SNMPd and SYSLOG support for integration with other network management solutions | |
- Automatic firmware upgrades with scheduling control | |
Layer 3 | - DHCP Relay |
Remote Diagnostics | - Email, SMS and Mobile push notification alerts |
- Cable testing and link failure detection with alerting | |
- Live remote packet capture | |
- Dynamic and interactive network discovery and topology | |
- Combined event and configuration change logs with instant search | |
Stacking | Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration |
Power | - Power input: 100 - 240 VAC, 47-63 Hz |
- Power consumption: 5 - 161W | |
Mounting | -Wall or utility board mountable with included mount hardware |
-Desktop-mountable with included feet | |
-Kensington lock slot included | |
Ethernet Switching Capabilities | - 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) |
- 802.1Q VLAN and trunking support for up to 4,094 VLANs | |
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) | |
- Broadcast storm control | |
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) | |
- 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches | |
- Port mirroring | |
- IGMP snooping for multicast filtering | |
- MAC forwarding entries: 16K | |
Environment | - Operating temperature: 0°C to 45°C |
- Humidity: 5 to 95% non-condensing | |
- Fanless operation | |
Regulatory | - CSA-US (US, Canada) |
- FCC (USA) | |
- IC (Canada) | |
- CE (Europe) | |
- RCM (Australia/New Zealand) | |
- RoHS | |
Security | - Integrated two-factor authentication for Dashboard management |
- Role-based access control (RBAC) with granular device and configuration control | |
- Corporate wide password policy enforcement | |
- IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing | |
- Multi-Domain/Multi-Host/Multi Authentication | |
- Port security: Sticky MAC, MAC whitelisting | |
- DHCP snooping, detection and blocking, Dynamic ARP Inspection | |
- STP Enhancements: BPDU guard, Root guard, Loop guard | |
- IPv4 and IPv6 ACLs | |
MTBF Ratings | 347,479 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
