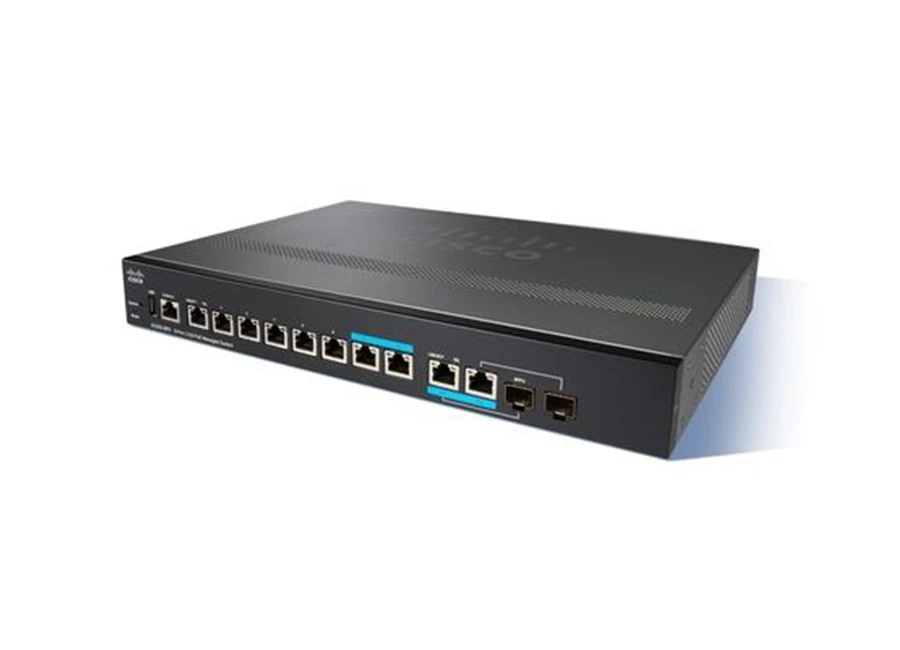

Cisco SG350 8PD PoE Switch
Özellikler
Teknik Özellikler
General | |
Device Type | Switch - 8 ports - L3 - Managed |
Enclosure Type | Desktop 1U |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE) + 2 x combo Gigabit GBIC |
Performance | Switching capacity (64-byte packet size): 46.13 Mpps ¦ Switching capacity: 62 Gbps |
Capacity | MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ ACL entries: up to 2000 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, TACACS, TACACS+ |
Features | Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | System, link/speed, master, stack |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 124 W ¦ 2 x 2.5Gbit LAN RJ-45 ¦ 2 x 1000Base-T RJ-45/SFP ¦ 1 x USB management ¦ 1 x console RJ-45 |
Power | |
Power Device | External power adapter |
Voltage Required | AC 120/230 V (50/60 Hz) |
Electric Current Required | 700 mA |
Miscellaneous | |
Cables Included | 1 x console cable |
Rack Mounting Kit | Included |
Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2, USGv6 |
Localisation | Kuwait, Qatar, Saudi Arabia, Hong Kong, Malaysia, Singapore, United Kingdom |
Dimensions & Weight | |
Width | 34.44 cm |
Depth | 25.25 cm |
Height | 4.4 cm |
Weight | 2.5 kg |
Manufacturer Warranty | |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 - 90% (non-condensing) |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Desk Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
