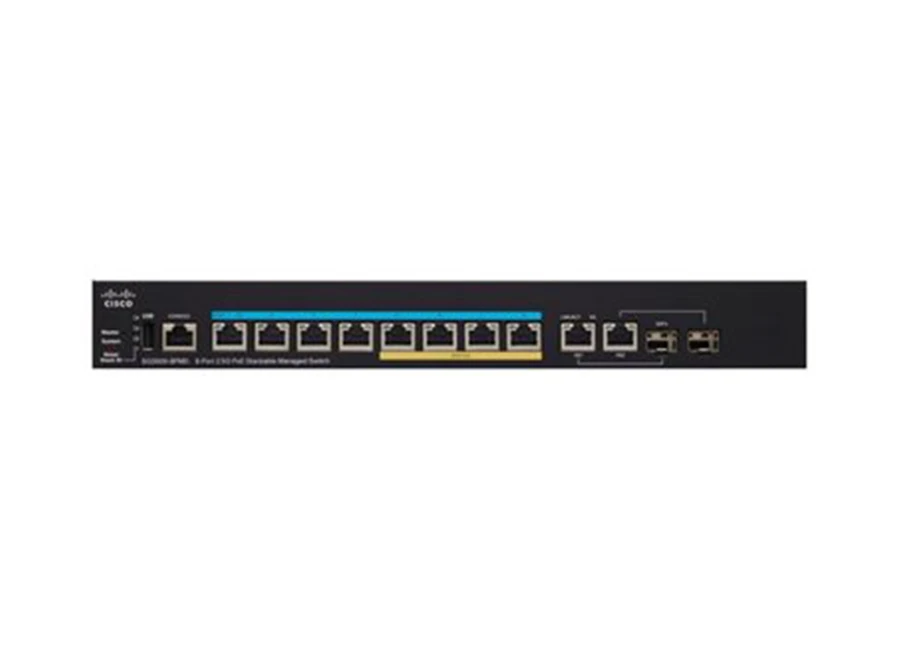

Cisco SG350X 8PMD PoE Switch
Özellikler
Product Description
- Cisco Small Business SG350X-8PMD - switch - 8 ports - managed - rack-mountable
Device Type
- Switch - 8 ports - managed - stackable
Enclosure Type
- Rack-mountable 1U
Subtype
- Gigabit Ethernet
Ports
- 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+
- PoE+
PoE Budget
- 240 W
Performance
- Switching capacity (64-byte packet size): 29.76 Mpps ¦ Switching capacity: 80 Gbps
Capacity
- MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ ACL entries: up to 2000
MAC Address Table Size
- 64K entries
Jumbo Frame Support
- 9000 bytes
Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Remote Management Protocol
- SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Features
- Flow control, layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), 12MB packet buffer, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, 1 fan, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard
Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power
- AC 120/230 V (47 - 63 Hz)
Dimensions (WxDxH)
- 13.6 in x 9.9 in x 1.7 in
Weight
- 6.04 lbs
Localization
- North America
Manufacturer Warranty
- Limited lifetime warranty
Teknik Özellikler
Miscellaneous | |
Cables Included | 1 x serial cable |
Rack Mounting Kit | Included |
MTBF | 474,265 hours |
Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2, USGv6 |
Localization | North America |
Dimensions & Weight | |
Width | 13.6 in |
Depth | 9.9 in |
Height | 1.7 in |
Weight | 6.04 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
General | |
Device Type | Switch - 8 ports - managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 240 W |
Performance | Switching capacity (64-byte packet size): 29.76 Mpps ¦ Switching capacity: 80 Gbps |
Capacity | MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ ACL entries: up to 2000 |
MAC Address Table Size | 64K entries |
Jumbo Frame Support | 9000 bytes |
Max Units In A Stack | 4 |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR |
Remote Management Protocol | SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, TACACS, TACACS+ |
Features | Flow control, layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), 12MB packet buffer, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, 1 fan, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | System, link/speed, master, stack |
Expansion / Connectivity | |
Interfaces | 4 x 2.5Gbit LAN RJ-45 30 W ¦ 4 x 2.5Gbit LAN RJ-45 60 W ¦ 2 x 10Gbit LAN RJ-45/SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB Type A |
Power | |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (47 - 63 Hz) |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 200-400 Watt
