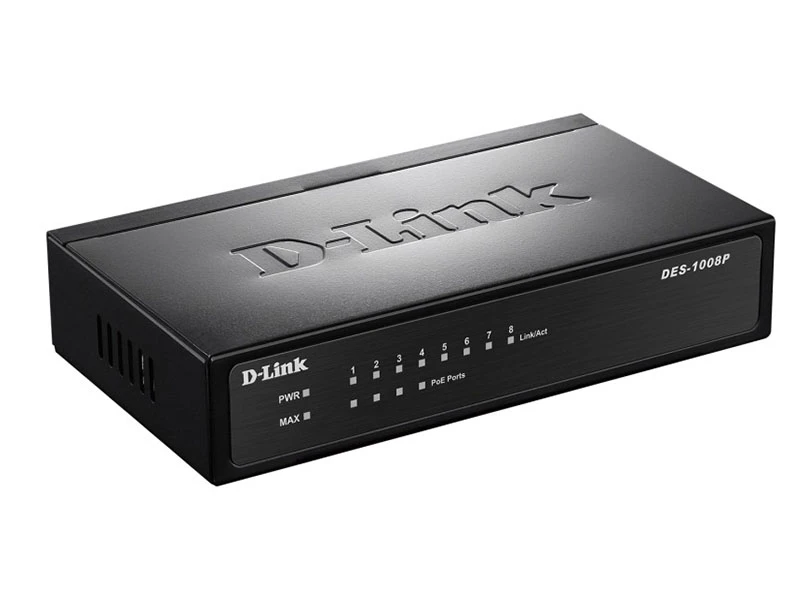

D-link DES 1008P C1 PoE Switch
Özellikler
The D-Link® DES-1008P 8-Port Desktop Switch with 4 PoE Ports enables both home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates quietly, making it ideal for use in virtually any room or office.
Teknik Özellikler
| Standards |
| • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
| • ANSI/IEEE 802.3 NWay auto-negotiation |
| • IEEE 802.3x flow control |
| • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| Switching Fabric |
| • 1.6 Gbps switching fabric |
| Data Transfer Rates |
| • Ethernet |
| • 10 Mbps (half duplex) |
| • 20 Mbps (full duplex) |
| • Fast Ethernet |
| • 100 Mbps (half duplex) |
| • 200 Mbps (full duplex) |
| Media Interface Exchange |
| • Auto MDI/MDIX adjustment for all ports |
| Network Cables |
| • 10BASE-T: |
| • UTP CAT 3/4/5/5e (100 m max.) |
| • EIA/TIA-586 100-ohm STP (100 m max.) |
| • 100BASE-TX |
| • UTP CAT 5/5e (100 m max.) |
| • EIA/TIA-568 100-ohm STP (100 m max.) |
| LED Indicators |
| • Per unit: Power/ PoE Max |
| • Per port: Activity/ Link and Speed |
| • Per port: Power / Status |
| Transmission Method |
| • Store-and-forward |
| MAC Address Table |
| • 2K entries per device |
| Packet Filtering/Forwarding Rates |
| • Ethernet: 14,880 pps per port |
| • Fast Ethernet: 148,800 pps per port |
| RAM Buffer |
| • 96 KB per device |
| Physical |
| Dimensions |
| • 5.5” x 3.0” x 1.06” (140 mm x 77 mm x 27 mm) |
| DC Input |
| • External 51 V / 1.25 A power adapter |
| Power Consumption |
| • 62 Watts maximum |
| • PoE up to 15.4 Watts per port (ports 1-4 only) |
| Temperature |
| • Operating: 0 to 40 °C (32 to 104 °F) |
| • Storage: -10 to 70 °C (14 to 158 °F) |
| Humidity |
| • Operating: 5% to 90% RH non-condensing |
| Certifications |
| CE / KCC / C-Tick |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
Çalışma Mesafesi : 100Mt.
