Açıklama

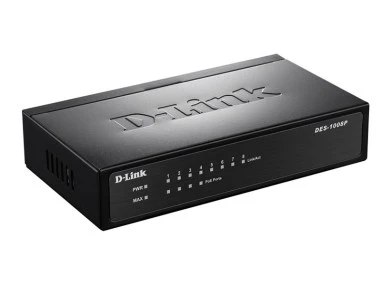

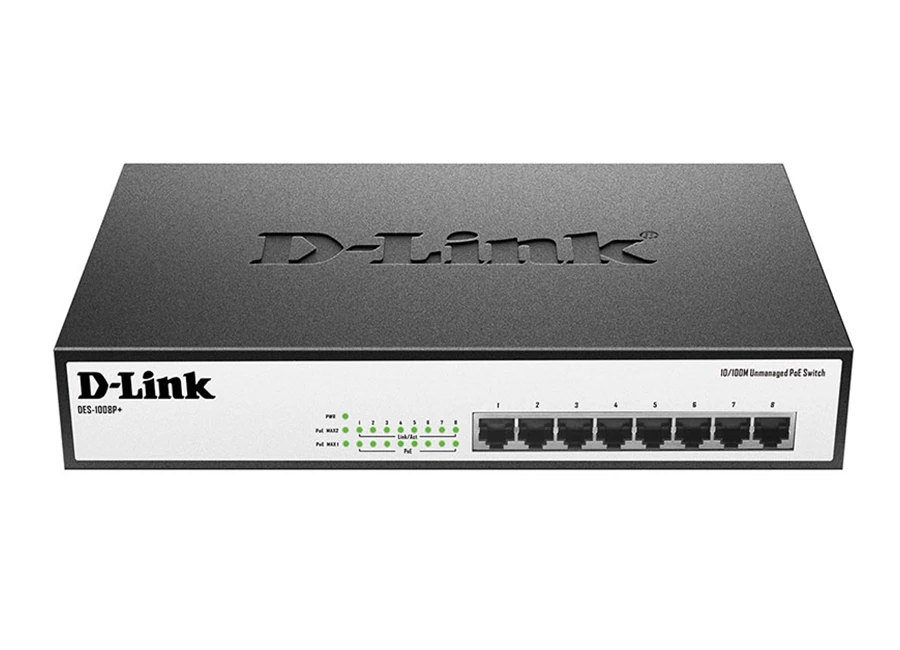

D-link DES 1008P POE Switch
Özellikler
The D-Link DES-1008P+ 8-Port 10/100 Unmanaged Desktop or Rackmount PoE+ Switch enables IT managers and Security System Integrators to easily connect and supply power to devices such as IP cameras, IP phones and wireless Access Points (APs), while adding more Ethernet devices like computers, printers, and Network Video Recorders (NVRs) onto a network. Built with demanding applications in mind, this switch supports a generous PoE budget and provides ample PoE power to any device that needs it.
Teknik Özellikler
| Standards |
| - IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
| - ANSI/IEEE 802.3 NWay auto-negotiation |
| - IEEE 802.3x flow control |
| - IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| Ports |
| - 8 10/100 Mbps PoE ports |
| Switching Fabric |
| - 1.6 Gbps switching fabric |
| Data Transfer Rates |
| - Ethernet |
| -10 Mbps (half duplex) |
| -20 Mbps (full duplex) |
| - Fast Ethernet |
| -100 Mbps (half duplex) |
| -200 Mbps (full duplex) |
| Media Interface Exchange |
| - Auto MDI/MDIX adjustment for all ports |
| Network Cables |
| - 10BASE-T |
| -UTP CAT 3/4/5/5e (100 m max.) |
| - EIA/TIA-586 100-ohm STP (100 m max.) |
| - 100BASE-TX |
| -UTP CAT 5/5e (100 m max.) |
| -EIA/TIA-568 100-ohm STP (100 m max.) |
| LED Indicators |
| - Per port: |
| -Link/Activity |
| -PoE Status |
| - Per device: |
| -Power |
| -PoE Max 1 |
| -PoE Max 2 |
| Transmission Method |
| - Store-and-forward |
| MAC Address Table |
| - 2K entries per device |
| Packet Filtering/Forwarding Rates |
| - Ethernet: 14,880 pps per port |
| - Fast Ethernet: 148,800 pps per port |
| RAM Buffer |
| - 96 KB per device |
| Physical & Environmental |
| Dimensions |
| - 11.02” x 7.05” x 1.75” (280mm x 179mm x 44.5mm) |
| Heat Dissipation |
| - Standby: |
| -22.67 BTU/h |
| - Maximum: |
| -486.7 BTU/h |
| Power Input |
| - 100 to 240 VAC, 50/60 Hz, Internal Universal Power Supply |
| Power Consumption |
| - Standby: |
| -6.9W |
| - Maximum: |
| -146W |
| Weight |
| - 3.6 lbs (1.65 Kg) |
| Temperature |
| - Operating: 32 to 104˚ F (0 to 40˚ C) |
| - Storage: -40 to 158˚ F (-40 to 70˚ C) |
| Humidity |
| - Operating: 5% to 95% RH non-condensing |
| - Storage: 5% to 95% RH non-condensing |
| Certifications |
| - FCC Class B |
| - CE |
| - RoHS |
| - cUL |
| Power over Ethernet |
| PoE capable ports |
| - Ports 1 - 8 |
| PoE standard |
| - IEEE 802.3af and IEEE 802.3at |
| PoE power budget |
| - 140W total |
| -Ports 1-4: 70W |
| -Ports 5-8: 70W |
| Warranty Information |
| Warranty |
| -Limited Lifetime |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
