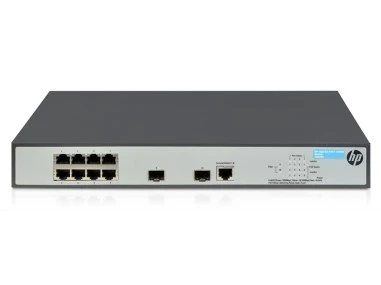

HP 1920 8G PoE Plus JG921A 10/100/1000 PoE Switch
Teknik Özellikler
| Capacity |
| Type: |
| IPv4 routing table entries |
| Value: |
| 32 |
| Type: |
| IPv6 routing table entries |
| Dimensions & Weight |
| Depth: |
| 9.1 in |
| Height: |
| 1.7 in |
| Weight: |
| 6.5 lbs |
| Width: |
| 13 in |
| Environmental Parameters |
| Humidity Range Operating: |
| 10 - 90% (non-condensing) |
| Humidity Range Storage: |
| 10 - 95% (non-condensing) |
| Max Operating Temperature: |
| 104 °F |
| Max Storage Temperature: |
| 158 °F |
| Min Operating Temperature: |
| 32 °F |
| Min Storage Temperature: |
| -40 °F |
| Flash Memory |
| Installed Size: |
| 32 MB |
| Header |
| Brand: |
| HPE |
| Compatibility: |
| PC |
| Manufacturer: |
| ProCurve Networking |
| Model: |
| 1920-8G-PoE+ |
| Packaged Quantity: |
| 1 |
| Product Line: |
| HPE |
| Interface Provided |
| Comments: |
| PoE+ |
| Connector Type: |
| RJ-45 |
| Qty: |
| 8 |
| Type: |
| 1000Base-T |
| Connector Type: |
| SFP |
| Qty: |
| 2 |
| Type: |
| 1000Base-X |
| Comments: |
| Management |
| Qty: |
| 1 |
| Type: |
| Console |
| Miscellaneous |
| Authentication Method: |
| RADIUS , Secure Shell (SSH) |
| Color Category: |
| Gray |
| Compliant Standards: |
| CAN/CSA C22.2 No. 60950-1-03 , CISPR 22 Class A , EN 60950-1 , EN 61000-3-2:2000 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Part 15 A , ICES-003 Class A , IEC 60950-1 , RoHS , UL 60950 , VCCI Class A , WEEE |
| Encryption Algorithm: |
| SSL |
| Height (Rack Units): |
| 1 |
| MTBF: |
| 76,33 year(s) |
| Rack Mounting Kit: |
| Included |
| Networking |
| Advanced Switching: |
| Layer 3 |
| Compliant Standards: |
| IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3at , IEEE 802.3az , IEEE 802.3i , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z |
| Features: |
| Access Control List (ACL) support , ARP support , Auto-negotiation , Auto-uplink (auto MDI/MDI-X) , Cable Diagnostics Function , Class of Service (CoS) , DHCP client , DHCP relay , Dual firmware images , Flow control , IGMP snooping , IPv6 support , Jumbo Frames support , Layer 2 switching , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Port isolation , Port mirroring , Port Security , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , Single IP Management (SIM) , Spanning Tree Protocol (STP) support , Static routing , STP Root Guard , Strict Priority Queuing (SPQ) , Syslog support , VLAN support , Weighted Round Robin (WRR) queuing |
| Form Factor: |
| Desktop , Rack-mountable |
| Jumbo Frame Support: |
| 10KB |
| MAC Address Table Size: |
| 8192 entries |
| Manageable: |
| Yes |
| PoE Budget: |
| 65 W |
| Ports Qty: |
| 8 |
| Power Over Ethernet (PoE): |
| PoE+ |
| Remote Management Protocol: |
| CLI , HTTP , HTTPS , RMON 2 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet , TFTP |
| Routing Protocol: |
| Static IPv4 routing , Static IPv6 routing |
| Subcategory: |
| Network hubs and switches |
| Subtype: |
| Gigabit Ethernet |
| Type: |
| Switch |
| Performance |
| Type: |
| Throughput |
| Value: |
| 14.8 Mpps |
| Type: |
| Routing/switching capacity |
| Value: |
| 20 Gbps |
| Ports |
| Qty: |
| 8 |
| Type: |
| 10/100/1000 (PoE+) |
| Ports (2nd) |
| Qty: |
| 2 |
| Type: |
| Gigabit SFP |
| Power Device |
| Frequency Required: |
| 50/60 Hz |
| Nominal Voltage: |
| AC 120/230 V |
| Power Consumption Operational: |
| 94 Watt |
| Processor |
| Clock Speed: |
| 500 MHz |
| Installed Qty: |
| 1 |
| Manufacturer: |
| MIPS |
| RAM |
| Installed Size: |
| 128 MB |
| Technology: |
| SDRAM |
| Service |
| Support Details Full Contract Period: |
| Lifetime |
| Support Details Service Included: |
| Advance parts replacement |
| Support Details Type: |
| Limited warranty |
| Support Details Full Contract Period: |
| 3 years |
| Support Details Service Included: |
| Phone consulting |
| Support Details Type: |
| Product info support |
| Service & Support |
| Type: |
| Limited lifetime warranty |
| Service & Support Details |
| Response Time: |
| Next business day |
HP 1920 8G PoE Plus JG921A 10/100/1000 PoE Switch Pdf Dosyası404.28 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Desk Mount
Rack Mount
