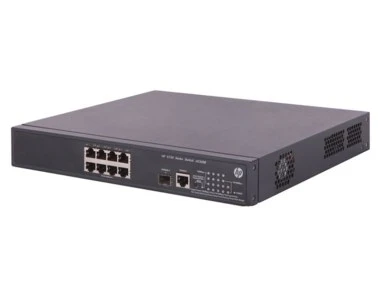

HP 5120 8G PoE Plus SI JG310B 10/100/1000 PoE Switch
Teknik Özellikler
| Device Type |
| Switch - 8 ports - Managed |
| Enclosure Type |
| Rack-mountable 1U |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 8 x 10/100/1000 (PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 65 W |
| Performance |
| Latency (1 Gbps): 3 µs ¦ Throughput: up to 13.4 Mpps ¦ Routing/switching capacity: 18 Gbps |
| Capacity |
| IPv4 routing table entries: 32 |
| MAC Address Table Size |
| 8192 entries |
| Routing Protocol |
| OSPF, RIP, static IP routing |
| Remote Management Protocol |
| SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| Features |
| Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, STP Root Guard |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad |
| Power |
| AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) |
| 30 cm x 26 cm x 4.4 cm |
| Weight |
| 3 kg |
| Localisation |
| English / Europe |
| Extended Specification |
| General |
| Authentication Method |
| RADIUS, Secure Shell v.2 (SSH2) |
| Capacity |
| IPv4 routing table entries: 32 |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad |
| Device Type |
| Switch - 8 ports - Managed |
| Enclosure Type |
| Rack-mountable 1U |
| Encryption Algorithm |
| SSL |
| Features |
| Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, STP Root Guard |
| Flash Memory |
| 128 MB |
| MAC Address Table Size |
| 8192 entries |
| Performance |
| Latency (1 Gbps): 3 µs ¦ Throughput: up to 13.4 Mpps ¦ Routing/switching capacity: 18 Gbps |
| PoE Budget |
| 65 W |
| Ports |
| 8 x 10/100/1000 (PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE+ |
| RAM |
| 128 MB - SDRAM |
| Remote Management Protocol |
| SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
| Routing Protocol |
| OSPF, RIP, static IP routing |
| Subtype |
| Gigabit Ethernet |
| Dimensions & Weight |
| Depth |
| 26 cm |
| Height |
| 4.4 cm |
| Weight |
| 3 kg |
| Width |
| 30 cm |
| Environmental Parameters |
| Humidity Range Operating |
| 10 - 90% (non-condensing) |
| Humidity Range Storage |
| 5 - 95% (non-condensing) |
| Max Operating Temperature |
| 45 °C |
| Max Storage Temperature |
| 70 °C |
| Min Operating Temperature |
| 0 °C |
| Min Storage Temperature |
| -40 °C |
| Expansion / Connectivity |
| Interfaces |
| 8 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 - management ¦ 1 x Gigabit LAN - SFP |
| Miscellaneous |
| Compliant Standards |
| FCC Class A certified, CISPR 22 Class A, GOST, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, FCC Part 15, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, |
| EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, ANATEL, EN 60825-1 |
| Localisation |
| English / Europe |
| Power |
| Power Consumption Operational |
| 93 Watt |
| Power Device |
| Internal power supply |
| Voltage Required |
| AC 120/230 V ( 50/60 Hz ) |
HP 5120 8G PoE Plus SI JG310B 10/100/1000 PoE Switch Pdf Dosyası338.03 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Rack Mount
