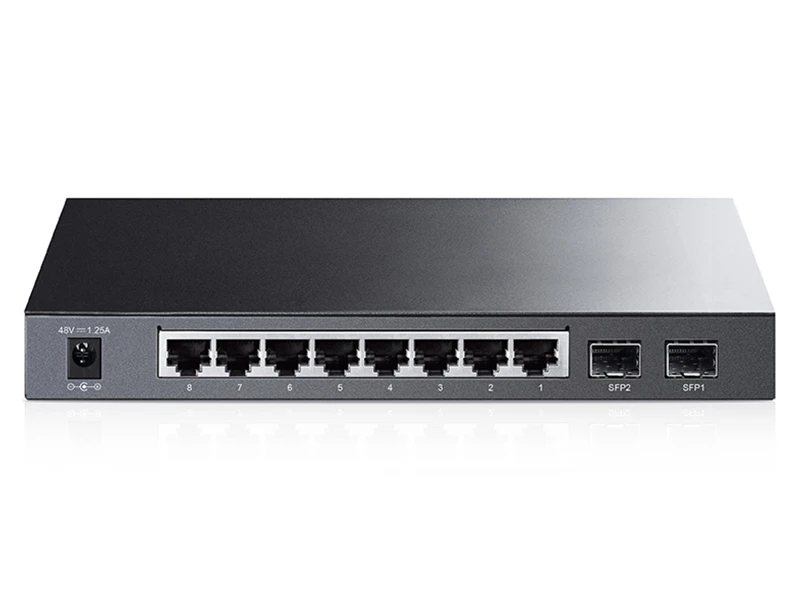

TP-LINK TL SG2210P 10/100/1000 PoE Switch
Özellikler
PoE Features
- Standard: 802.3af compliant
- PoE Ports: 8 Ports
- Power Supply: 53W
Layer 2 Features
- Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP(LLDP-MED)
Quality of Service
- 4 priority queues
- Support IEEE 802.1P
- DSCP QoS
- Rate limit feature
Security Strategies
- Access Control List (L2~L4 ACL)
- IP-MAC-Port Binding
- 802.1x and Radius Authentication
- Port Security
- Storm Control
- SSL and SSH encryptions
- Dos Defend
Management
- Web-based GUI
- Command Line Interface(Telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
Teknik Özellikler
| Standards and Protocols |
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, |
| IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, |
| IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface |
| 8 10/100/1000Mbps RJ45 Ports |
| 2 1000Mbps SFP Slots |
| (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media |
| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| 1000BASE-X: MMF, SMF |
| Fan Quantity |
| Fanless |
| Power Supply |
| 100~240VAC, 50/60Hz |
| External Power Adapter(Output: 48VDC/1.25A) |
| Power Consumption |
| Maximum (PoE on): 63.4W (220V/50Hz) |
| Maximum (PoE off): 10.4W (220V/50Hz) |
| PoE Ports (RJ45) |
| Standard: 802.3af compliant |
| PoE Ports: 8 Ports |
| Power Supply: 53W |
| Dimensions ( W x D x H ) |
| 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| PERFORMANCE |
| Bandwidth/Backplane |
| 20Gbps |
| Packet Forwarding Rate |
| 14.9Mpps |
| MAC Address Table |
| 8k |
| Packet Buffer Memory |
| 512KB |
| Jumbo Frame |
| 9216 Bytes |
| Environment |
| Operating Temperature: |
| ℃~40℃ (32℉~104℉); |
| Storage Temperature: |
| -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: |
| 10%~90% non-condensing |
| Storage Humidity: |
| 5%~90% non-condensing |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Çalışma Mesafesi : 100Mt.
Aktarım Türü : Gbit Fiber
Aktarım Port Sayısı : 2
