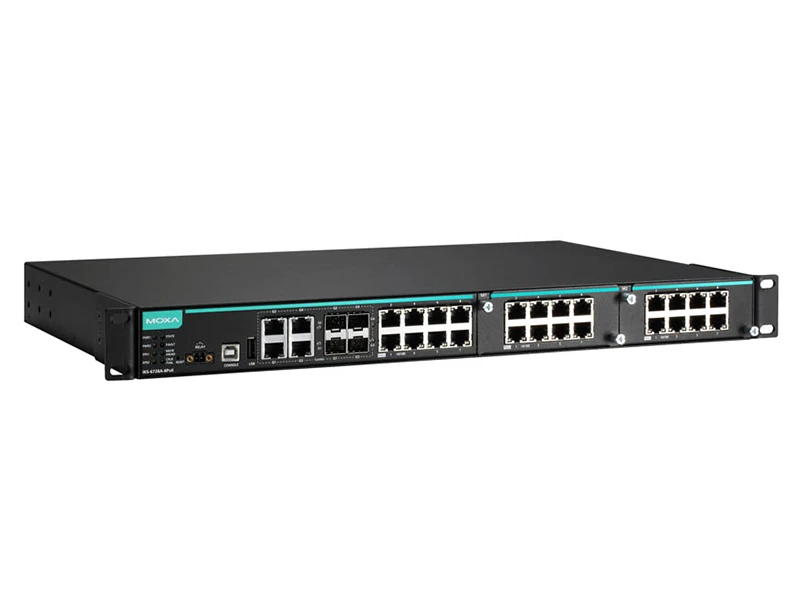

MOXA IKS 6728A 8PoE 4GTXSFP 48 T 10/100 PoE Switch
Özellikler
- 8 built-in PoE+ ports compliant with IEEE 802.3af/at
- Up to 36 W output per PoE+ port
- 3 kV LAN surge protection for extreme outdoor environments
- PoE diagnostics for powered-device mode analysis
- 4 Gigabit combo ports for high bandwidth communication
- -40 to 75°C operating temperature range at 720 W full loading
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
Teknik Özellikler
Technology | |
Standards | IEEE 802.3af/at for PoE/PoE+ output |
IEEE 802.3 for 10BaseT | |
IEEE 802.3u for 100BaseT(X) and 100BaseFX | |
IEEE 802.3ab for 1000BaseT(X) | |
IEEE 802.3z for 1000BaseX | |
IEEE 802.3x for Flow Control | |
IEEE 802.1D-2004 for Spanning Tree Protocol | |
IEEE 802.1w for Rapid STP | |
IEEE 802.1s for Multiple Spanning Tree Protocol | |
IEEE 802.1Q for VLAN Tagging | |
IEEE 802.1p for Class of Service | |
IEEE 802.1X for Authentication | |
IEEE 802.3ad for Port Trunk with LACP | |
Software Features | |
Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
Security | RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock, MAC ACL, MAC Sticky, NTP Authentication, SMTP with TLS |
Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
Industrial Protocols | EtherNet/IP, Modbus/TCP, PROFINET |
MIB | MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
Switch Properties | |
Priority Queues | 4 |
Max. Number of VLANs | 64 |
VLAN ID Range | VID 1 to 4094 |
IGMP Groups | 2048 |
MAC Table Size | 16 K |
Packet Buffer Size | 12 Mbit |
Jumbo Frame Size | 9.6 KB |
Interface | |
Fast Ethernet | 8-port 10/100BaseT(X) or PoE+ 10/100BaseT(X) 2 modular slots for any 8-, or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base SFP, or PoE+ 10/100BaseT(X) |
Note | See the IM-6700A datasheet for Fast Ethernet module and PoE+ module product information. |
Gigabit Ethernet | 4-port 10/100/1000BaseT(X) or 100/1000Base SFP |
Console Port | USB-serial console (Type B connector) |
Storage Port | USB storage (Type A connector for ABC-02-USB) |
Alarm Contact | 1 relay output with current carrying capacity of 2 A @ 30 VDC |
Power Requirements | |
Input Voltage | HV models: |
• 110/220 VAC for switch system | |
• 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices) | |
48 VDC models: | |
• 48 VDC (46 to 57 VDC) for switch and PoE system | |
Operating Voltage | HV models: |
• 85 to 264 VAC for switch system | |
• 46 to 57 VDC for PoE system | |
48 VDC models: | |
• 46 to 57 VDC for Switch and PoE system | |
Input Current | HV models: |
• PWR input current (switch system): | |
Max. 0.33 A @ 110 VAC | |
Max. 0.24 A @ 230 VAC | |
• EPS input current (PoE system): | |
Max. 0.29 A @ 48 VDC (excluding power consumption of PoE devices) | |
48 VDC models: | |
• PWR/EPS input current (switch and PoE systems): | |
Max. 0.53 A @ 48 VDC (excluding power consumption of | |
PoE devices) | |
Max. 17.81 A @ 46-57 VDC (including power consumption | |
of PoE devices in high power mode) | |
Overload Current Protection | Present |
Reverse Polarity Protection | Present |
Physical Characteristics | |
IP Rating | IP30 protection |
Dimensions | 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) |
Weight | IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 4250 g (9.38 lb)IKS-6728A-8PoE-4GTXSFP-HV-T: 4150 g (9.15 lb) |
IKS-6728A-8PoE-4GTXSFP-48-48-T: 4250 g (9.38 lb) | |
IKS-6728A-8PoE-4GTXSFP-48-T: 4150 g (9.15 lb) | |
Installation | 19-inch rack mounting |
Environmental Limits | |
Operating Temperature | -40 to 75°C (-40 to 167°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
Note | Please check Moxa’s website for the most up-to-date certification status. |
Safety | UL 60950-1, EN 60950-1 |
EMC | EN 55032/24 |
EMI | FCC Part 15 Subpart B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV |
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m | |
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV | |
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV | |
IEC 61000-4-6 CS: Signal: 10 V | |
IEC 61000-4-8 | |
Rail Traffic | EN 50121-4 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
MTBF (mean time between failures) | |
Time | IKS-6728A-8PoE-4GTXSFP-48-T: 224,420 hrs |
IKS-6728A-8PoE-4GTXSFP-48-48-T: 215,994 hrs | |
IKS-6728A-8PoE-4GTXSFP-HV-T: 159,173 hrs | |
IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 120,731hrs | |
Standard | Telcordia (Bellcore), GB |
Video
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 400-800 Watt
