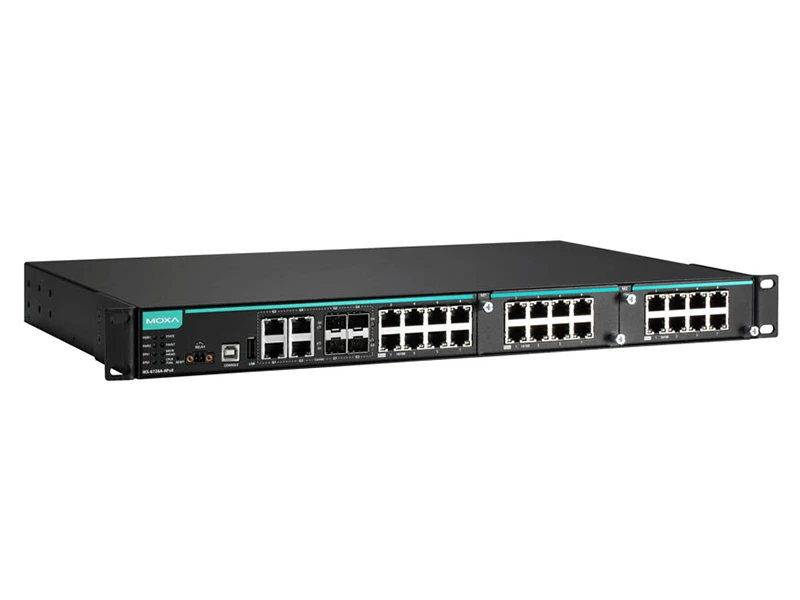

MOXA IKS 6728A 8PoE 4GTXSFP HV HV T 10/100 PoE Switch

Üretici:MOXA

Kullanılabilirlik:stokta 70 öğe(ler)

Ürün Kodu:MOXA IKS 6728A 8PoE 4GTXSFP HV HV T

MOXA IKS 6728A 8PoE 4GTXSFP HV HV T, Modular managed rackmount Ethernet PoE+ switch with 8 built-in 10/100BaseT(X) PoE+ ports, 4 Gigabit Copper/SFP combo ports, and 2 slots for Fast Ethernet PoE+ modules. Support up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, 2 isolated power supplies ( 85-264 VAC), -40 to 75°C operating temperature, PoE Switch

Açıklama

MOXA IKS 6728A 8PoE 4GTXSFP HV HV T 10/100 PoE Switch

Özellikler

8 built-in PoE+ ports compliant with IEEE 802.3af/at
Up to 36 W output per PoE+ port
3 kV LAN surge protection for extreme outdoor environments
PoE diagnostics for powered-device mode analysis
4 Gigabit combo ports for high bandwidth communication
-40 to 75°C operating temperature range at 720 W full loading
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

Teknik Özellikler

Technology
Standards	IEEE 802.3af/at for PoE/PoE+ output
	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X) and 100BaseFX
	IEEE 802.3ab for 1000BaseT(X)
	IEEE 802.3z for 1000BaseX
	IEEE 802.3x for Flow Control
	IEEE 802.1D-2004 for Spanning Tree Protocol
	IEEE 802.1w for Rapid STP
	IEEE 802.1s for Multiple Spanning Tree Protocol
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1p for Class of Service
	IEEE 802.1X for Authentication
	IEEE 802.3ad for Port Trunk with LACP
Software Features
Management	IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter	802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Redundancy Protocols	STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security	RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock, MAC ACL, MAC Sticky, NTP Authentication, SMTP with TLS
Time Management	SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols	EtherNet/IP, Modbus/TCP, PROFINET
MIB	MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues	4
Max. Number of VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	2048
MAC Table Size	16 K
Packet Buffer Size	12 Mbit
Jumbo Frame Size	9.6 KB
Interface
Fast Ethernet	8-port 10/100BaseT(X) or PoE+ 10/100BaseT(X) 2 modular slots for any 8-, or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base SFP, or PoE+ 10/100BaseT(X)
Note	See the IM-6700A datasheet for Fast Ethernet module and PoE+ module product information.
Gigabit Ethernet	4-port 10/100/1000BaseT(X) or 100/1000Base SFP
Console Port	USB-serial console (Type B connector)
Storage Port	USB storage (Type A connector for ABC-02-USB)
Alarm Contact	1 relay output with current carrying capacity of 2 A @ 30 VDC
Power Requirements
Input Voltage	HV models:
	• 110/220 VAC for switch system
	• 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)
	48 VDC models:
	• 48 VDC (46 to 57 VDC) for switch and PoE system
Operating Voltage	HV models:
	• 85 to 264 VAC for switch system
	• 46 to 57 VDC for PoE system
	48 VDC models:
	• 46 to 57 VDC for Switch and PoE system
Input Current	HV models:
	• PWR input current (switch system):
	Max. 0.33 A @ 110 VAC
	Max. 0.24 A @ 230 VAC
	• EPS input current (PoE system):
	Max. 0.29 A @ 48 VDC (excluding power consumption of PoE devices)
	48 VDC models:
	• PWR/EPS input current (switch and PoE systems):
	Max. 0.53 A @ 48 VDC (excluding power consumption of
	PoE devices)
	Max. 17.81 A @ 46-57 VDC (including power consumption
	of PoE devices in high power mode)
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristics
IP Rating	IP30 protection
Dimensions	440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
Weight	IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 4250 g (9.38 lb)IKS-6728A-8PoE-4GTXSFP-HV-T: 4150 g (9.15 lb)
	IKS-6728A-8PoE-4GTXSFP-48-48-T: 4250 g (9.38 lb)
	IKS-6728A-8PoE-4GTXSFP-48-T: 4150 g (9.15 lb)
Installation	19-inch rack mounting
Environmental Limits
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Note	Please check Moxa’s website for the most up-to-date certification status.
Safety	UL 60950-1, EN 60950-1
EMC	EN 55032/24
EMI	FCC Part 15 Subpart B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
	IEC 61000-4-6 CS: Signal: 10 V
	IEC 61000-4-8
Rail Traffic	EN 50121-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF (mean time between failures)
Time	IKS-6728A-8PoE-4GTXSFP-48-T: 224,420 hrs
	IKS-6728A-8PoE-4GTXSFP-48-48-T: 215,994 hrs
	IKS-6728A-8PoE-4GTXSFP-HV-T: 159,173 hrs
	IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 120,731hrs
Standard	Telcordia (Bellcore), GB
