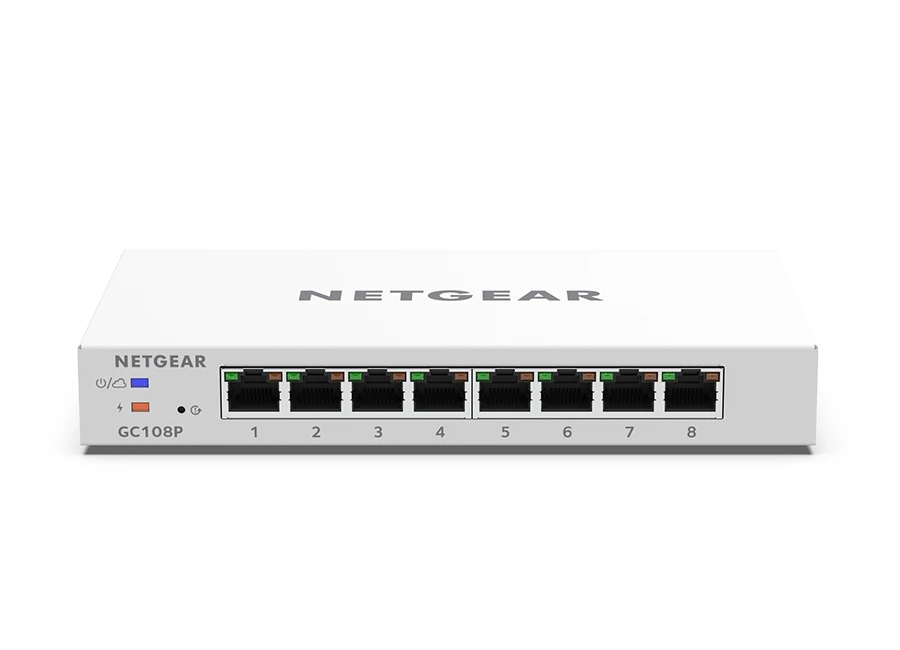

Netgear GC108PP PoE Switch

Teknik Özellikler

Model Description
Insight Managed 8-Port Gigabit Ethernet Hi-Power PoE+ Smart Cloud Switch with NETGEAR FlexPoE Power (126W)
Gigabit copper ports
8
Gigabit SFP ports
N/A
Number of PoE/PoE+ ports
8 PoE+ (802.3at)
Total PoE power budget (watts)
126W‡ FlexPoE
Bandwidth (full-duplex)
16 Gbps
Buffer size (dynamically shared across ports in use)
512 KB
MAC address database size (48-bit MAC addresses)
8K
VLAN (number supported)
64
VLAN routing
Yes
Dynamic VLAN assignment
Yes
MLD Snooping
Yes
Static routes
32 (IPv4-only)
Link Aggregation / Port Trunking
LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG
Number of LAGs & number of members
8 LAGS with max 8 members in each LAG
Number of priority queues
8
Supported multicast groups
256
DoS prevention
Yes
Loop detection/prevention
Yes
Jumbo frame support
Up to 10,000 packets
EEE (IEEE 802.3az)
Yes
Power supply
External: Input 54V/2.4A (power cord localized to country of sale)
Max power consumption (Watts)
4.9 W (no PoE)
128.4 W (with PoE max)
Fan(s)
0 (fanless)
Acoustic noise level @ 25°C (dBA)
N/A
Operating temperature
° to 45°C (32° to 113°F)
MTBF (@ 25°C)
2,635,395 hrs (301 yrs)
Electromagnetic compliance (A or B)
Class A
Dimensions (W x D x H)
188 x 110 x 27 mm (7.4 x 4.3 x 1.1 in)
Weight
0.52 kg (1.14 lb)

pdfNetgear GC108PP PoE Switch Pdf Dosyası1.03 MB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Montaj Tipi : Desk Mount
Wall Mount
PoE Port Sayısı : Tooltip 8 Port
PoE Güç Bütçesi : 50-130 Watt
