Açıklama

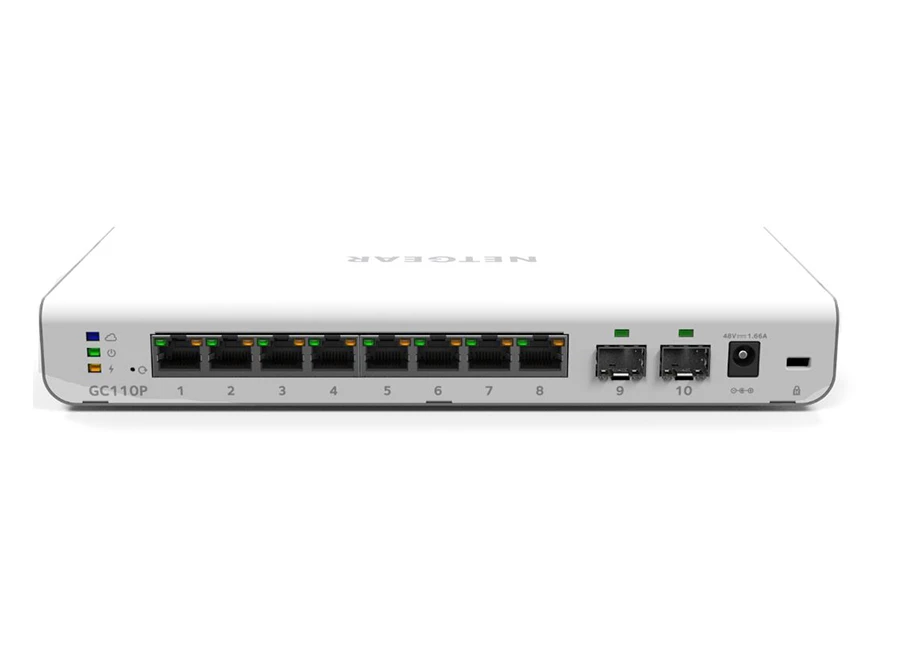

Netgear GC110P PoE Switch
Teknik Özellikler
Model Description |
Insight Managed gigabit switch, ethernet switch, poe switch, poe switch,poe switch bağlantısı, planet switch, endüstriyel Ethernet switch, omurga switch, indüstrial switch,Desktop Switch w/2 SFP Fiber Ports (62W) |
Gigabit copper ports |
8 |
Gigabit SFP ports |
2 (dedicated) |
Number of PoE/PoE+ ports |
8 PoE (802.3af) |
Total PoE power budget (watts) |
62W |
Bandwidth (full-duplex) |
20 Gbps |
Buffer size (dynamically shared across ports in use) |
1.5 MB |
MAC address database size (48-bit MAC addresses) |
16K |
VLAN (number supported) |
256 |
VLAN routing |
Yes |
Dynamic VLAN assignment |
Yes |
MLD Snooping |
Yes |
Static routes |
32 (IPv4) / 31 (IPv6) |
Link Aggregation / Port Trunking |
LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG |
Number of LAGs & number of members |
5 LAGS with max 8 members in each LAG |
Number of priority queues |
8 |
Supported multicast groups |
512 |
DoS prevention |
Yes |
Loop detection/prevention |
Yes |
Jumbo frame support |
Up to 9,216 packets |
EEE (IEEE 802.3az) |
Yes |
Power supply |
External: Input 48V/1.67A (power cord localized to country of sale) |
Max power consumption (Watts) |
10.3 W (no PoE) 74.4 W (with PoE max) |
Fan(s) |
0 (fanless) |
Acoustic noise level @ 25°C (dBA) |
N/A |
Operating temperature |
° to 45°C (32° to 113°F) |
MTBF (@ 25°C) |
2,976,994 hours (340 years) |
Electromagnetic compliance (A or B) |
Class A |
Dimensions (W x D x H) |
245 x 123 x 33 mm (9.6 x 4.8 x 1.3 in) |
Weight |
0.77 kg (1.70 lb) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
Wall Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
