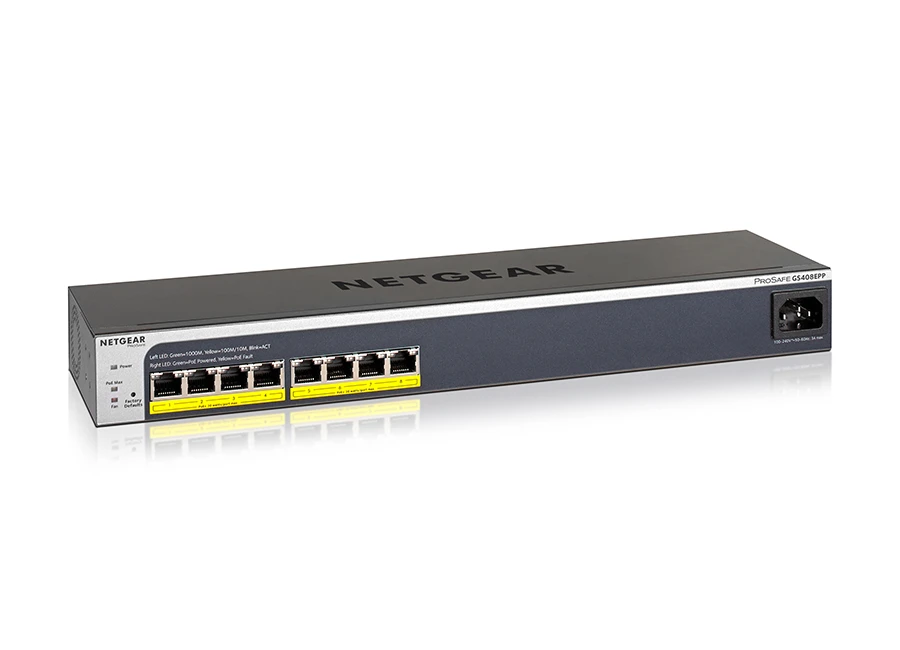

Netgear GS408EPP PoE Switch
Özellikler
Hardware
- 8-port Gigabit Ethernet Ports
- 8 PoE PoE/ ports (802.3af, 802.3at) with 124W PoE/PoE+ Budget
- Virtually AnywhereTM Easy-Mount system allows for:
1. On a Wall.
2. Under a Tabletop/Desktop.
3. On a rectangular or round pole.
4. Up in the ceiling.
5. In a standard 19-inch rack
- Multi-directional power cable can be routed outwards or downwards
- Internal power supply (simple power cord from switch to outlet)
- LED lights can be turned off for non-distracting placement next to a TV
Performance
- 192KB packet buffer memory (dynamically shared across only used ports)
- 16 Gbps non-blocking fabric (bandwidth)
- 4 Priority queues
- Weighted Round Robin (WRR) priority queuing
- 4K Media Access Control (MAC) addresses with 48-bit MAC address
- 128 Multicast groups
- 64 VLANs
- Jumbo frames up to 9K packet size supported
VLANs
- IEEE 802.1Q VLAN tagging
- Port-based VLANs (physical)
Multicast
- IGMP snooping, v1, v2 and v3
- Blocking of unknown multicast traffic
Link Aggregation
- IEEE 802.3ad - Static LAGs
- 2 LAGs with max 4 members in each LAG
Quality of Service (QoS)
- Port-based rate limiting (ingress and egress)
- Port-based QoS
- IEEE 802.1p COS
- IPv4 DSCP
- IPv4 ToS
- Weighted Round Robin (WRR)
Network Security
- Broadcast, multicast, unknown unicast storm control
- DoS attacks prevention
Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast storm control
- Cable diagnostics
- Loop detection
- Energy Efficient Ethernet (IEEE 802.3az) compliant
- Broadcast, multicast, unknown unicast storm control
Management
- Password management
- Web browser-based graphical user interface (GUI) for advanced configuration and management
- ProSAFE Plus Configuration Utility (PCU) for multi-switch management (requires Windows PC)
- Firmware upgrade via HTTP (Web GUI) or TFTP (Plus Utility)
- Config file transfers (backup, restore) using web browser-based management GUI or Plus Utility
- Port mirroring; many-to-one port mirroring
- Energy Efficient Ethernet (EEE) IEEE 802.3az (deactivated by default)
- Short cable power reduction
- Auto power-down
- Broadcast, multicast, unknown unicast storm control
- DHCP client
Teknik Özellikler
Product Number | GS408EPP |
Model Description | 8-port Gigabit Web Managed Easy-Mount Switch w/8-port PoE/PoE+ |
Gigabit ports | 8 |
PoE/PoE+ Ports / PoE Budget | 8 PoE/PoE+, 124W PoE Budget |
Max MAC entries | 4K |
Buffer size | 192 KB |
Link Aggregation / Port Trunking | Manual Static LAG |
Number of LAGs & Number of Members | 2 LAGS with max 4 members in each LAG |
Supported Multicast Groups | 128 |
Auto Denial-of-Service Prevention | Yes |
Port Mirroring Max Number of Source Ports Allowed (Many to 1) | 1 |
Jumbo Frame Support | Up to 9K packets |
Max Power Consumption (Watts) | 5.8W (non-PoE) 148W (PoE) |
Acoustic Noise Level @ 25° C (dBA) | 26.9 dBA |
VLAN (# supported) | 64 |
Number of priority queues | 4 |
Power supply | Internal: 100-240VAC, 50-60Hz, 2A max (power cord localized to country of sale) |
Fan(s) | Active Fan |
Operating Temperature | ° to 50° C |
MTBF (hours) | 2,715,369 hours |
Electromagnetic compliance (A or B) | A |
Dimensions (W x D x H) | 380 x 100 x 43.2 mm (15 x 3.9 x 1.7 in) |
Weight | 1.6 kg(3.53 lb) |
Video
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
