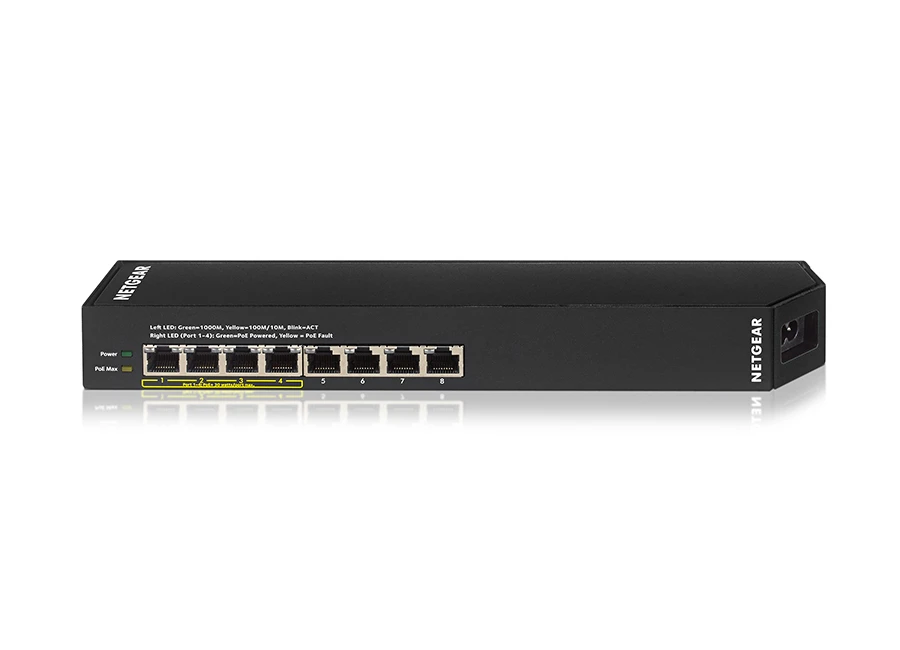

Netgear GSS108EPP PoE Switch

Özellikler

Hardware
  • "Virtually Anywhere" Click Mounting system allows for:
    • Vertical/side mount
    • Vertical/rear mount
    • Horizontal/side mount
    • Horizontal/rear mount
  • Multi-directional power cable can be routed outwards or downwards
  • Internal power supply (simple power cord from switch to outlet)
  • LED lights can be turned off for non-distracting placement next to a TV
  • Fanless for silent operation
  • 2 Quick access USB charging ports for tablets or smartphones (GSS108E only)
  • 4 PoE PoE ports with 47W PoE Budget (GSS108EPP only)
Traffic Management
  • Auto-negotiation of speed and duplex modes
  • 802.3x Flow Control
  • DHCP clientDynamic MAC address management
  • IEEE 802.1Q-based or port-based VLAN
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 802.1p-based QoS
  • QoS based on ToS (Type-of-Service)
  • DSCP support
  • Rate limiting
Multicast Efficiency
Link Aggregation (GSS116 and GSS108EPP only)
  • Manual Static LAGs
  • 2 LAGs with max 4 members in each LAG
  • 2 LAGs with max 8 members in each LAG
  • Reliability, Performance and Troubleshooting
  • Port mirroring both on ingress and egress traffic
  • Jumbo frame support
  • Broadcast storm control
  • Cable diagnostics
  • Loop detection
  • DoS prevention (GSS108EPP and GSS116E only)
  • Energy Efficient Ethernet (IEEE 802.3az) compliant
Switch Management
  • Advanced configuration and management using web browser-based GUI
  • Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
  • Firmware Upgrade through ProSAFE Plus Utility (TFTP)
  • Configuration upload (to Server)
  • System password protection

pdfNetgear GSS108EPP PoE Switch Pdf Dosyası1.22 MB

Teknik Kısa

PoE : Hibrid
Yönetilebilirlik : Yönetilebilir
PoE Port Sayısı : Tooltip 4 Port
PoE Güç Bütçesi : 0-50 Watt
