Açıklama

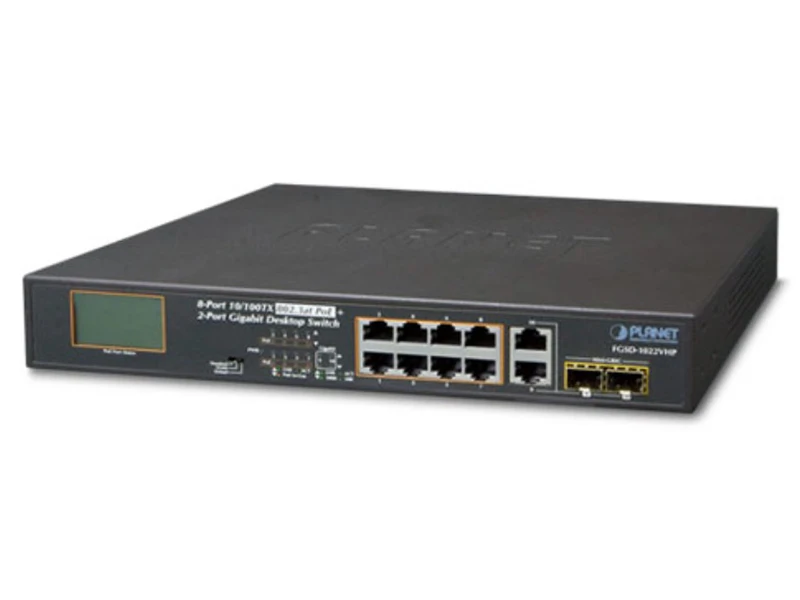

Planet FGSD 1022VHP 10/100 PoE Switch
Teknik Özellikler
| Hardware Specifications | |
| 802.3af/802.3at PoE Injector Port | 8 |
| 10/100BASE-TX MDI/MDIX Ports | 8 |
| 10/100/1000BASE-T MDI/MDIX Ports | 2 (Combo Port) |
| 1000BASE-X SFP/mini-GBIC Slots | 2 (Combo Port) |
| DIP Switch | 1 for standard mode/VLAN mode/extend mode operation |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 5.6Gbps/non-blocking |
| Switch Throughput@64 bytes | 4.16Mpps@64Bytes |
| MAC Address Table | 4K entries |
| Maximum Frame Size | 1536 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED | System: |
| Power (Green) | |
| 10/100BASE-TX RJ45 Interfaces: | |
| 10/100Mbps LNK/ACT (Green) | |
| PoE-in-Use (Orange) | |
| 10/100/1000BASE-T RJ45/SFP Interfaces: | |
| LNK/ACT (Green) | |
| 100/1000 (Green) | |
| LCD Monitor | Total PoE budget |
| Total PoE usage | |
| Per port PoE usage | |
| PD light load protection/PD over load protection | |
| Short-circuit protection(SCP) | |
| Power supply Low voltage alarm/High voltage alarm | |
| Dimensions (W x D x H) | 180 x 280 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 1.8kg |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/Dissipation | Max. 130 watts/443 BTU |
| Thermal Fan | 1 |
| ESD Protection | Contact Discharge of ±4KV DC |
| Air Discharge of ±6KV DC | |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 53V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per port 53V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at High Power over Ethernet Plus | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
