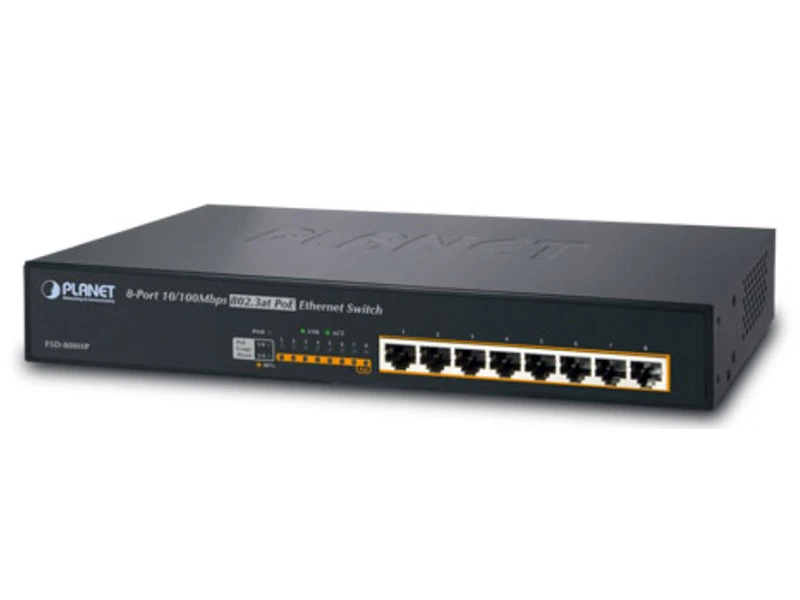

Planet FSD 808HP 10/100 PoE Switch

Hardware Specification
Network Connector	8-Port RJ-45 for 10/100Base-TX
PoE Inject Port	8-Port with 802.3af / 802.3at PoE injector function
LED Display	System: Power (Green)
	PoE Usage Alarm:
	• 1-4 (Orange)
	• 5-8 (Orange)
	Per port:
	• PoE in-use (Green)
	• LNK/ACT (Green)
Switch Architecture	Store and Forward switch architecture
MAC Address	2K MAC address table with auto learning function
Switch Fabric	1.6Gbps
Switch Throughput	1.19Mpps@64Bytes
Power Requirements	AC 100~240V, 50/60Hz, 2A max.
Power Consumption	Max.150 watts / 511 BTU
Dimensions (W x D x H)	280 x 180 x 44 mm
Weight	1.65kg
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Standard	IEEE 802.3at Enhancement Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 52V DC max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	140 watts
Environment
Operating Temperature	0 ~ 50 degrees C
Storage Temperature	-40 ~ 70 degrees C
Operating Humidity	5 ~ 95%, relative humidity, non-condensing
Storage Humidity	5 ~ 95%, relative humidity, non-condensing
Standard Conformance
Standard Compliance	IEEE 802.3　Ethernet
	IEEE 802.3u　Fast Ethernet
	IEEE 802.3x　Flow Control
	IEEE 802.3af　Power over Ethernet
	IEEE 802.3at　Enhancement Power over Ethernet
	IEEE 802.3az　Energy-Efficient Ethernet
EMI Safety	FCC Class B, CE
