Açıklama

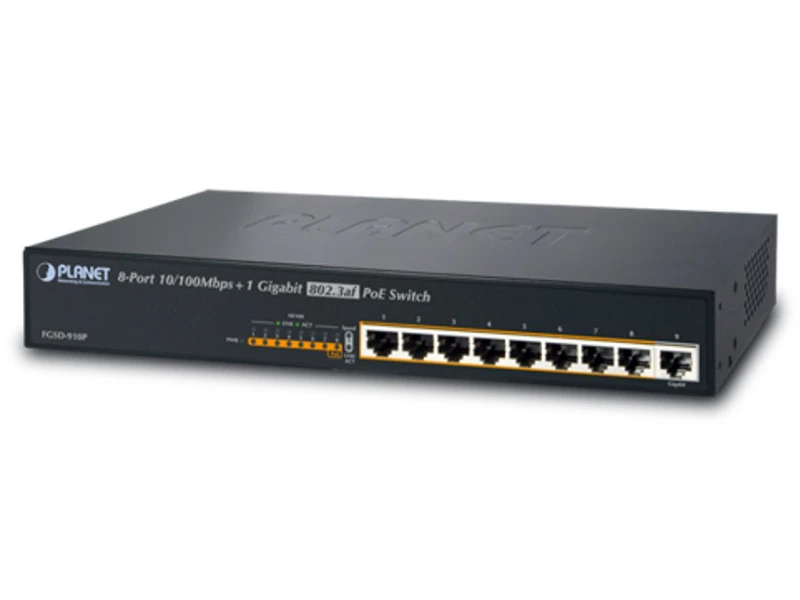

Planet FGSD 910P 10/100 PoE Switch
Teknik Özellikler
| Hardware Specification |
| Network Connector |
| 8-Port RJ-45 for 10/100Base-TX (Port 1 to Port 8) |
| 1-Port RJ-45 for 10/100/1000Base-T (Port 9) |
| PoE Inject Port |
| 8-Port with 802.3af PoE injector function |
| LED Display |
| System: Power (Green) |
| Per PoE port: |
| PoE (Orange) |
| LNK/ACT (Green) |
| Gigabit port: |
| Speed (Green) |
| LNK/ACT (Green) |
| Switch Architecture |
| Store and Forward switch architecture |
| MAC Address Table |
| 4K MAC address table with Auto learning function |
| Switch Fabric |
| 3.6Gbps |
| Switch Throughput |
| 2.67Mpps @ 64Bytes |
| Flow Control |
| Back pressure for Half-Duplex. IEEE 802.3x pause frame for full-duplex |
| Power Requirements |
| AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption |
| 130 watts / 443BTU |
| Dimensions (W x D x H) |
| 280 x 180 x 43 mm, 1U height |
| Weight |
| 1.7kg |
| Power over Ethernet |
| PoE Standard |
| IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
| End-Span |
| PoE Power Output |
| Per Port 48V DC, 350mA. max. 15.4 watts |
| Power Pin Assignment |
| 1/2(+), 3/6(-) |
| PoE Power Budget |
| 120 watts (at room temperature) |
| Max. number of Class 1 PD |
| 8 |
| Max. number of Class 2 PD |
| 8 |
| Max. number of Class 3 PD |
| 8 |
| Standard Conformance |
| EMI Safety |
| FCC Class A, CE |
| Standard Compliance |
| IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3x Flow Control |
| IEEE 802.3af Power over Ethernet |
| Environment |
| Operating Environment |
| 0 ~ 50 degrees C |
| Storage Environment |
| -10 ~ 70 degrees C |
| Operating Humidity |
| 5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity |
| 5 ~ 95%, Relative Humidity, non-condensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Güç Bütçesi : 50-130 Watt
PoE Port Sayısı :
8 Port
8 Port
