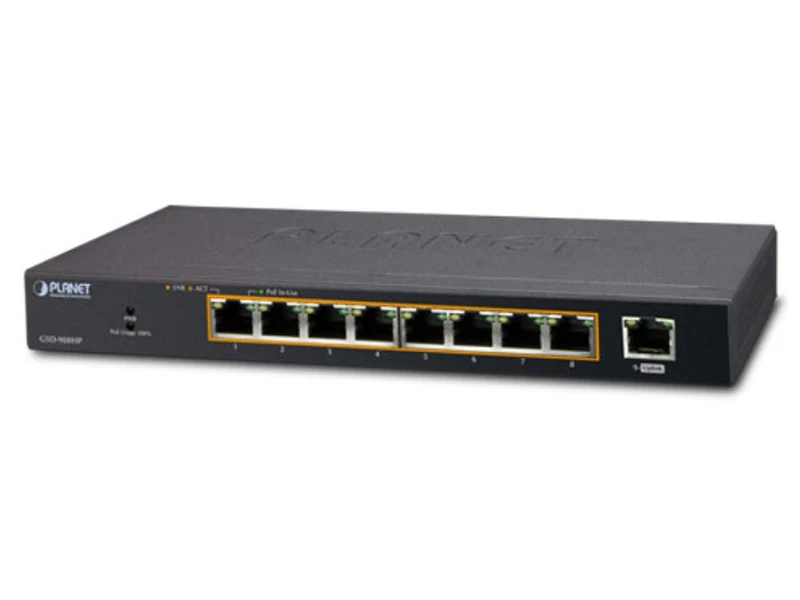

Planet GSD 908HP 10/100/1000 PoE Switch
Özellikler
RJ45 Interface
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- 9-Port 10/100/1000Mbps Gigabit Ethernet Switch
- 8-Port supports 51V DC power to PoE Powered Device (Port 1 to port 8)
- Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
- Up to 8 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE port
- Up to 4 IEEE 802.3at devices powered
- Supports PoE Power up to 30 watts for each PoE port
- 100-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 4K absolute MAC addresses
- 192 KB packet buffer
- 9K Jumbo frame supports at 1000Mbps duplex mode
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Hardware
- Made of metal, desktop size and wall-mount design
- LED indicators for system power, PoE usage 100%, per port PoE In-Use (Port 1 to port 8), per port Link/Act (10/100/1000Mbps, port 1 to port 9)
- 51V DC, 2A external power adapter
- FCC, CE Class A compliant
Teknik Özellikler
| Hardware Specifications | |
| Network Connector | 9-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 8-Port with 802.3af/802.3at PoE injector function |
| LED Display | System: |
| Power (Green), PoE Usage 100% (Green) | |
| Per PoE port: | |
| PoE (Green), port 1 to port 8 | |
| LNK/ACT (Orange), port 1 to port 9 | |
| Switch Architecture | Store and forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Data Buffer | 192 KB |
| Switch Fabric | 18Gbps |
| Switch Throughput | 13.3Mpps@64bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Power Requirements | DC 51V, 2A max. |
| Power Consumption | 100 watts/341BTU |
| Dimensions (W x D x H) | 103 x 235 x 27 mm |
| Weight | 628g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per port 51V DC, 350mA. max. 15.4 watts |
| Per port 51V DC, 600mA. max. 30 watts | |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 100 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 7 |
| Max. Number of Class 4 PDs | 3 |
| Standard Conformance | |
| EMI Safety | FCC Class A, CE |
| Standard Compliance | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| Ethernet | |
| Fast Ethernet | |
| Gigabit Ethernet | |
| Flow Control | |
| Power over Ethernet | |
| Power over Ethernet Plus | |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Storage Humidity | 5 ~ 95%, relative humidity (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Wall Mount
