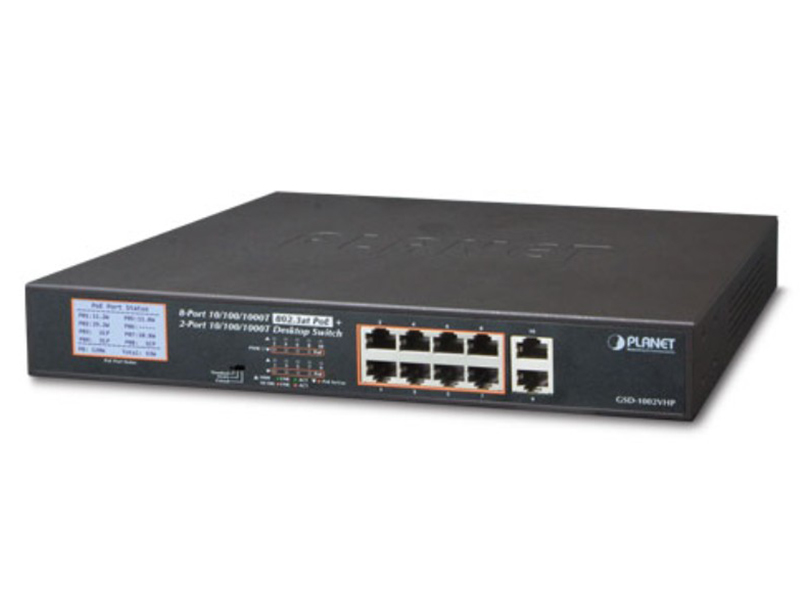

Planet GSD 1002VHP 10/100/1000 PoE Switch
Teknik Özellikler
| Physical Port |
| 10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper |
| Power over Ethernet |
| Complies with IEEE 802.3af/at Power over Ethernet end-span PSE |
| Up to 8 ports of IEEE 802.3af/802.3at devices powered |
| Supports PoE Power up to 30.8 watts for each PoE port |
| Each port supports 52V DC power to PoE Powered Device |
| 120-watt PoE budget |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100m with standard mode, 250m with extended mode |
| Switching |
| Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X |
| Flow control for full duplex operation and back pressure for half duplex operation |
| IEEE 802.1Q VLAN transparency |
| Hardware DIP switch for “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation |
| Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing |
| Hardware |
| 12-inch desktop size, 1U height, rack mountable |
| LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act |
| LCD monitor for system status and PoE usage status display |
| 1 silent fan to provide stable and efficient power performance |
| Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) |
Planet GSD 1002VHP 10/100/1000 PoE Switch Pdf Dosyası1.05 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
