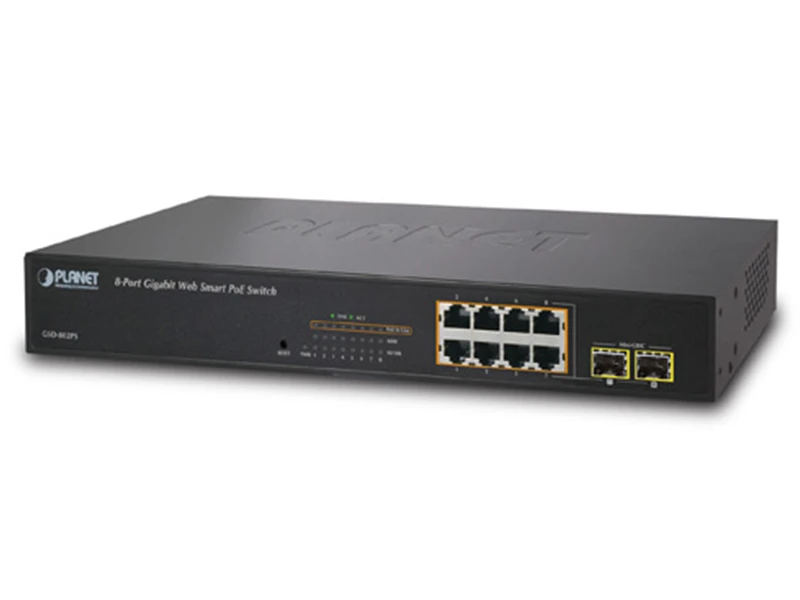

Planet GSD 802PS 10/100/1000 PoE Switch
Teknik Özellikler
| Donanım Özellikleri | |
| Bakır Portlar | 8 10/ 100/1000Base-T RJ-45 Auto-MDI / MDI-X ports |
| SFP / mini-GBIC Slot | 2 SFP interfaces, shared with Port-7 and Port-8 |
| PoE Power Output | 48V DC, 15.4W, 350mA (Pin 1, 2, 3, 6) |
| PoE Power Budget | 123.2 watts |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps |
| Address Table | 8K MAC address table with Auto learning function |
| Share Data Buffer | Built-in 176K bytes chip buffer |
| Akış Kontrolü | Back pressure for Half-Duplex |
| IEEE 802.3x Pause Frame for Full-Duplex | |
| Jumbo Frame | Up to 9K Bytes (Disable, 4K, 9K) |
| LED | Power, 1000 Link / Act, 10/100 Link / Act per port |
| Ölçüler | 330 x 155 x 43.5 mm |
| Ağırlık | 1.8 kg |
| Güç Gereksinimi | 100 - 240VAC, 50 - 60Hz, Auto-sensing |
| Güç Tüketimi | 140 watts / 477.4 BTU |
| Çalışma | Operating: 0~50 Degree C |
| Storage: -40~70 Degree C | |
| Nem | Operating:10~90%, Storage: 5~95% (Non-condensing) |
| Layer 2 Fonksiyonu | |
| Management Interface | Web Browser, SNMPv1, v2c monitor and SNMP Trap |
| Port Konfigürasyonu | -Port disable / enable. Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| -Flow Control disable / enable | |
| -Bandwidth control on each port | |
| VLAN | Port-Based / IEEE 802.1Q Tagged Based VLAN |
| Up to 64 VLAN groups | |
| Link Aggregation | Supports 4 groups of 8-Port trunk |
| IEEE 802.3ad LACP | |
| QoS | Traffic classification based on 802.1p priority, DSCP field in IP Packet |
| IGMP Snooping | IGMP (v1 / v2) Snooping, up to 64 multicast Groups |
| SNMP MIBs | RFC-1213 MIB-2 |
| RFC-1573-Interface MIB | |
| RFC-2819 RMON MIB (Group 1) | |
| Standart Uygunluğu | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standart Uygunluğu | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX | |
| IEEE 802.3ab Gigabit 1000Base-T | |
| IEEE 802.3z Gigabit 1000Base-SX / LX | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3ad Port trunk with LACP | |
| IEEE 802.1d Spanning tree protocol | |
| IEEE 802.1w Rapid spanning tree protocol | |
| IEEE 802.1p Class of service | |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.3af Power over Ethernet | |
| Network Media | 10Base-T-UTP / STP category 3, 4 or 5 cable |
| 100Base-TX-UTP / STP category 5 cable | |
| 1000Base-T-UTP / STP category 5e / 6 cable | |
| 1000Base-SX/LX | |
| 62.5 / 125µm multi-mode fiber optic cable, up to 220m | |
| 50 / 125µm multi-mode fiber optic cable, up to 550m 1000Base-LX | |
| 9 / 125µm single-mode fiber optic cable, up to 120km (Vary on SFP Module) | |
Planet GSD 802PS 101001000 PoE Switch Pdf Dosyası289.05 KBTeknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Türü : Gbit Fiber
Aktarım Port Sayısı : 2
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
