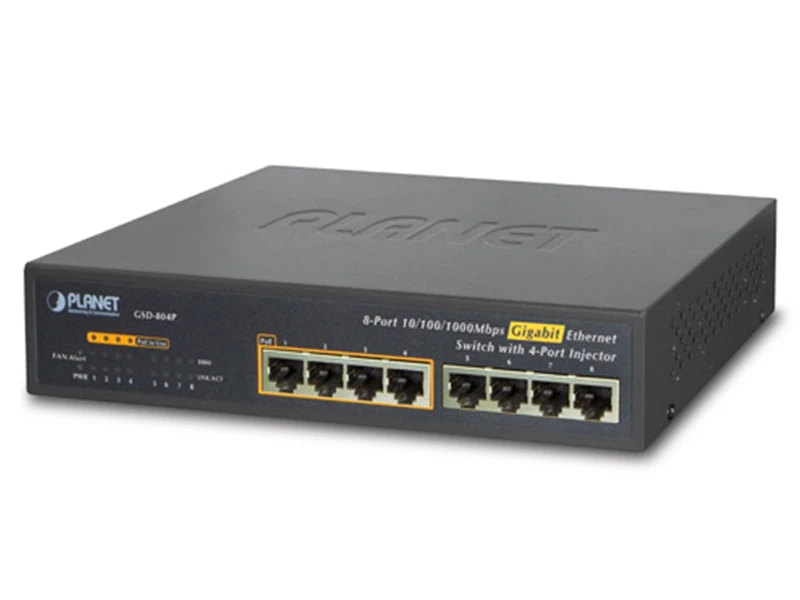

Planet GSD 804P 10/100/1000 Gigabit PoE Switch
Teknik Özellikler
| Physical Port |
| 8-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper |
| 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4) |
| Power over Ethernet |
| Complies with IEEE 802.3af/at Power over Ethernet end-span PSE |
| Up to 4 ports of IEEE 802.3af/802.3at devices powered |
| Supports PoE Power up to 30.8 watts for each PoE port |
| Each port supports 53V DC power to PoE powered device |
| 60-watt PoE budget |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100m with standard mode, 200m with extended mode |
| Switching |
| Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X |
| Flow control for full duplex operation and back pressure for half duplex operation |
| IEEE 802.1Q VLAN transparency |
| Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps (Only for Port1 – Port4) |
| Hardware |
| 8.5-inch desktop size, 1U height, rack mountable |
| LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act |
| Fanless design |
| Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) |
| Supports 4000VDC Ethernet ESD protection |
Planet GSD 804P 10/100/1000 Gigabit PoE Switch Pdf Dosyası1.05 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Desk Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
