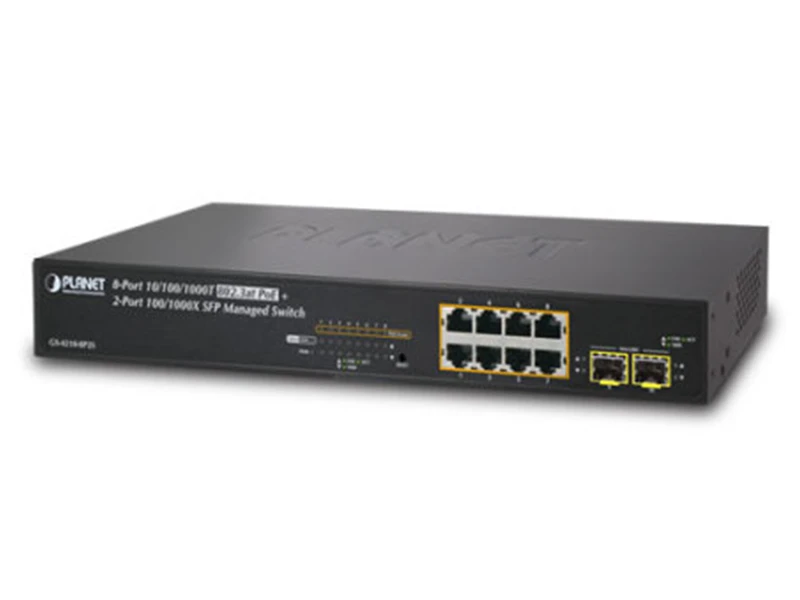

Planet PL GS 4210 8P2S PoE Switch
Özellikler
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
SFP/mini-GBIC Slots | 2 x 100/1000BASE-X SFP interface |
Supports 100/1000Mbps dual mode and DDM | |
PoE Injector Port | 8 ports with 802.3at / af PoE injector function with port-1 to port-8 |
Switch Architecture | Store-and-Forward |
Switch Fabric | 20Gbps / non-blocking |
Switch Throughput@64Bytes | 14.88Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10K bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
LED | PWR, LNK/ACT, PoE-in-use, 1000, fan alert |
Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
Dimensions (W x D x H) | 330 x 155 x 43.5 mm, 1U height |
ESD Protection | Contact Discharge 4KV DC |
Air Discharge 8KV DC | |
Enclosure | Metal |
Weight | 1687g |
Power Consumption / Dissipation | 165 watts (max.) / 563 BTU |
Fan | 1 x smart fan |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 52V DC, 36 watts (max.) |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 120 watts (max.) @ 25 degrees C |
100 watts (max.) @ 50 degrees C | |
PoE Ability PD @ 9 watts | 8 units |
PoE Ability PD @ 15 watts | 8 units |
PoE Ability PD @ 30 watts | 4 units |
Layer 2 Functions | |
Port Mirroring | TX / RX / both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged-based VLAN |
Up to 256 VLAN groups, out of 4094 VLAN IDs | |
802.1ad Q-in-Q tunneling | |
Voice VLAN | |
Protocol VLAN | |
Private VLAN (Protected port) | |
GVRP | |
Link Aggregation | IEEE 802.3ad LACP and static trunk |
Supports 8 groups of 8-port trunk | |
Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol |
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol | |
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | |
IGMP Snooping | IGMP (v2/v3) snooping |
IGMP querier | |
Up to 256 multicast groups | |
MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
QoS | 8 mapping ID to 8 level priority queues |
- Port number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP field in IP packet | |
Traffic classification based, strict priority and WRR | |
Security | IEEE 802.1X port-based authentication |
Built-in RADIUS client to co-operate with RADIUS server | |
RADIUS / TACACS+ user access authentication | |
IP-MAC port binding | |
MAC filtering | |
Static MAC address | |
DHCP Snooping and DHCP Option82 | |
STP BPDU guard, BPDU filtering and BPDU forwarding | |
DoS attack prevention | |
ARP inspection | |
IP source guard | |
Management Functions | |
Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c |
Firmware upgrade by HTTP / TFTP protocol through Ethernet network | |
Remote / Local Syslog | |
System log | |
LLDP protocol | |
SNTP | |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
SNMP MIBs | RFC 1213 MIB-II |
RFC 1215 Generic Traps | |
RFC 1493 Bridge MIB | |
RFC 2674 Bridge MIB Extensions | |
RFC 2737 Entity MIB (Version 2) | |
RFC 2819 RMON (1, 2, 3, 9) | |
RFC 2863 Interface Group MIB | |
RFC 3635 Ethernet-like MIB | |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE, LVD |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3ab Gigabit 1000T | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree protocol | |
IEEE 802.1w Rapid Spanning Tree protocol | |
IEEE 802.1s Multiple Spanning Tree protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP version 1 | |
RFC 2236 IGMP version 2 | |
RFC 3376 IGMP version 3 | |
RFC 2710 MLD version 1 | |
RFC 3810 MLD version 2 | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -20 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
Çalışma Mesafesi : 90 Mt.
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
