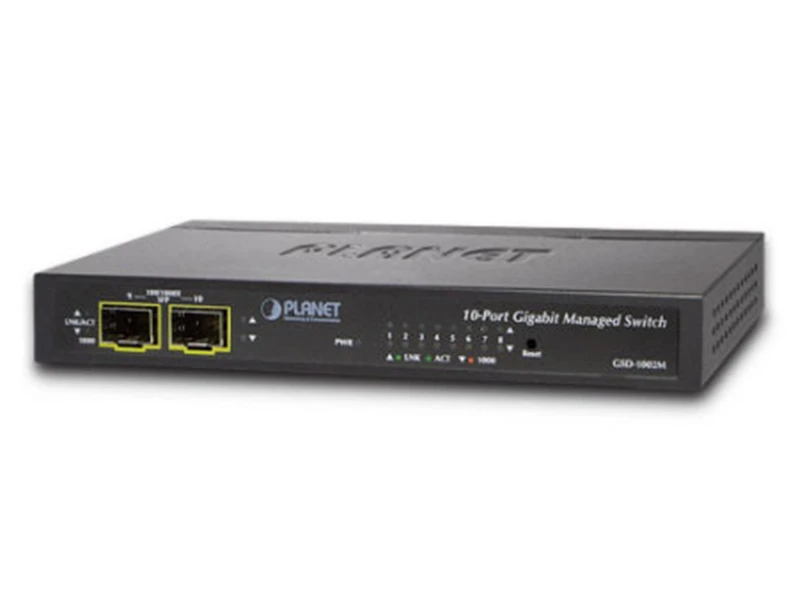

Planet PL GSD 1002M PoE Switch
Özellikler
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 8 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X port |
SFP/mini-GBIC Slots | 2 100/1000Base-X SFP interfaces |
Supports 100/1000Mbps dual mode and DDM | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 20Gbps / non-blocking |
Switch Throughput@64Bytes | 14.8Mpps |
Address Table | 8K entries |
Share Data Buffer | 512K Bytes |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10K bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory Default | |
LED | System: |
Power (Green) | |
10/100/1000T RJ45 Interfaces (Port 1 to Port 8): | |
1000Mbps (Orange), LNK/ACT (Green) | |
100/1000Mbps SFP Interfaces (Port 9 to Port 10): | |
1000Mbps (Orange), LNK/ACT (Green) | |
Power Requirements | IEEE 802.3af / at PoE 48V ~ 56V DC in-line power |
12V DC power adapter | |
ESD Protection | 6KV DC |
Power Consumption / Dissipation | 10.9 watts / 37.2 BTU |
Dimensions (W x D x H) | 191 x 86 x 26 mm |
Weight | 396g |
Enclosure | Metal |
Layer 2 Functions | |
Port Mirroring | TX / RX / Both |
Many-to-1 monitor | |
VLAN | 802.1Q Tagged-based VLAN |
Up to 256 VLAN groups, out of 4094 VLAN IDs | |
802.1ad Q-in-Q tunneling | |
Voice VLAN | |
Protocol VLAN | |
Private VLAN (Protected port) | |
GVRP | |
Link Aggregation | IEEE 802.3ad LACP and static trunk |
Supports 8 groups of 8-port trunk | |
Spanning Tree Protocol | STP / RSTP / MSTP |
IGMP Snooping | IGMP (v2 / v3) Snooping |
IGMP Querier | |
Up to 256 multicast groups | |
MLD Snooping | MLD (v1 / v2) Snooping, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
QoS | 8 mapping ID to 8 level priority queues |
- Port Number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP field in IP Packet | |
Traffic classification based, Strict priority and WRR | |
Security | IEEE 802.1x – Port-based authentication |
Built-in RADIUS client to co-operate with RADIUS server | |
RADIUS / TACACS+ user access authentication | |
IP-MAC port binding | |
MAC Filter | |
Static MAC Address | |
DHCP Snooping and DHCP Option 82 | |
STP BPDU Guard, BPDU Filtering and BPDU Forwarding | |
DoS Attack Prevention | |
ARP Inspection | |
IP Source Guard | |
Management Functions | |
Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c |
Firmware upgrade by HTTP / TFTP protocol through Ethernet network | |
Remote / Local Syslog | |
System log | |
LLDP protocol | |
SNTP | |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
SNMP MIBs | RFC 3635 Ethernet-like MIB |
RFC 2863 Interface Group MIB | |
RFC 2819 RMON (1, 2, 3, 9) | |
RFC 1493 Bridge MIB | |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class B, CE |
Standards Compliance | IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX/100Base-FX | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3ab Gigabit 1000T | |
IEEE 802.3x Flow Control and Back Pressure | |
IEEE 802.3ad Port Trunk with LACP | |
IEEE 802.1D Spanning Tree protocol | |
IEEE 802.1w Rapid Spanning Tree protocol | |
IEEE 802.1s Multiple Spanning Tree protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN Tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af (Power over Ethernet) | |
IEEE 802.3at (High Power over Ethernet) | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP version 1 | |
RFC 2236 IGMP version 2 | |
RFC 3376 IGMP version 3 | |
RFC 2710 MLD version 1 | |
RFC 3810 MLD version 2 | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -20 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
