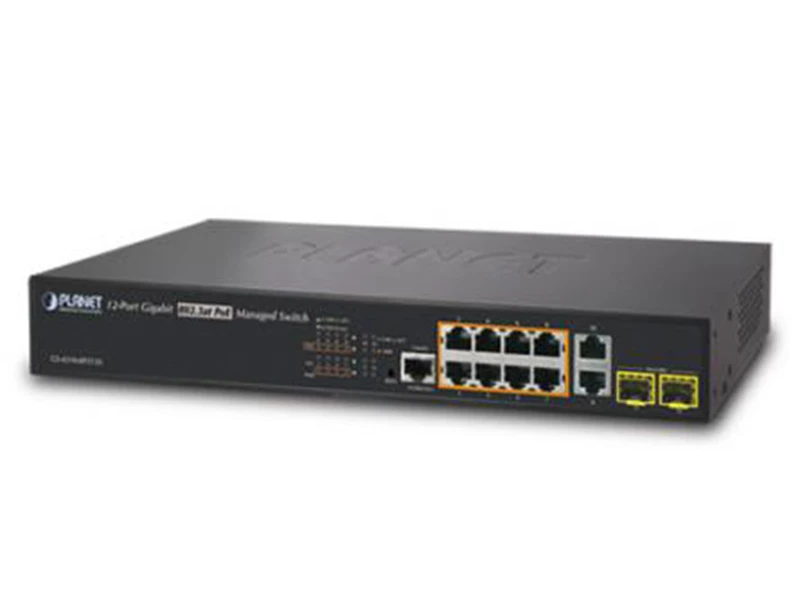

Planet PL GS 4210 8P2T2S 10/100/1000 PoE Switch
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 10 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2 x 100/1000Base-X SFP interfaces with Port-11 to Port-12. |
Supports 100/1000Mbps dual mode and DDM | |
PoE Injector Port | 8 ports with 802.3at / af PoE injector function with Port-1 to Port-8 |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Switch Architecture | Store-and-Forward |
Switch Fabric | Switch Fabric 24Gbps / non-blocking |
Switch Throughput@64Bytes | 17.76Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10K bytes |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |
LED | PWR, SYS, LNK/ACT, PoE In-Use, 1000 |
Dimensions (W x D x H) | 330 x 200 x 44.5 mm, 1U height |
Weight | 2kg |
Power Requirements | AC 100~240V, 50/60Hz, auto-sensing |
ESD Protection | 6KV DC |
Power Consumption / Dissipation | 320 watts (max.) / 1091.8 BTU |
Enclosure | Metal |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per Port 56V DC, 30.8 watts (max.) |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 240 watts (max.) @ 25 degrees C |
200 watts (max.) @ 50 degrees C | |
PoE Ability PD @ 15.4 watts | 8 units |
PoE Ability PD @ 30 watts | 8 units |
Layer 2 Functions | |
Port Mirroring | TX / RX / both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged-based VLAN |
Up to 256 VLAN groups, out of 4094 VLAN IDs | |
802.1ad Q-in-Q tunneling | |
Voice VLAN | |
Protocol VLAN | |
Private VLAN (Protected port) | |
GVRP | |
Link Aggregation | IEEE 802.3ad LACP and static trunk |
Supports 8 groups of 8-port trunk | |
Spanning Tree Protocol | STP / RSTP / MSTP |
IGMP Snooping | IGMP (v2/v3) Snooping |
IGMP Querier | |
Up to 256 multicast groups | |
MLD Snooping | MLD (v1/v2) Snooping, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
QoS | 8 mapping ID to 8 level priority queues |
- Port number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP field in IP packet | |
Traffic classification based, strict priority and WRR | |
Security | IEEE 802.1X – Port-based authentication |
Built-in RADIUS client to co-operate with RADIUS server | |
RADIUS / TACACS+ user access authentication | |
IP-MAC port binding | |
MAC filter | |
Static MAC address | |
DHCP Snooping and DHCP Option82 | |
STP BPDU guard, BPDU filtering and BPDU forwarding | |
DoS attack prevention | |
ARP inspection | |
IP source guard | |
Management Functions | |
Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c |
Firmware upgrade by HTTP / TFTP protocol through Ethernet network | |
Remote / Local Syslog | |
System log | |
LLDP protocol | |
SNTP | |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
SNMP MIBs | RFC 1213 MIB-II |
RFC 1215 Generic Traps | |
RFC 1493 Bridge MIB | |
RFC 2674 Bridge MIB Extensions | |
RFC 2737 Entity MIB (Version 2) | |
RFC 2819 RMON (1, 2, 3, 9) | |
RFC 2863 Interface Group MIB | |
RFC 3635 Ethernet-like MIB | |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX/100Base-FX | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3ab Gigabit 1000T | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree protocol | |
IEEE 802.1w Rapid Spanning Tree protocol | |
IEEE 802.1s Multiple Spanning Tree protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at High Power over Ethernet | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP version 1 | |
RFC 2236 IGMP version 2 | |
RFC 3376 IGMP version 3 | |
RFC 2710 MLD version 1 | |
RFC 3810 MLD version 2 | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -20 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Planet PL GS 4210 8P2T2S 10/100/1000 PoE Switch Pdf Dosyası1.99 MB
Teknik Kısa
PoE : PoE Plus
Yönetilebilirlik : Yönetilebilir Layer 2
Port Hızı : 1 GBit
Aktarım Türü : Combo
Aktarım Port Sayısı : 4
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 200-400 Watt
Çalışma Mesafesi : 100Mt.
