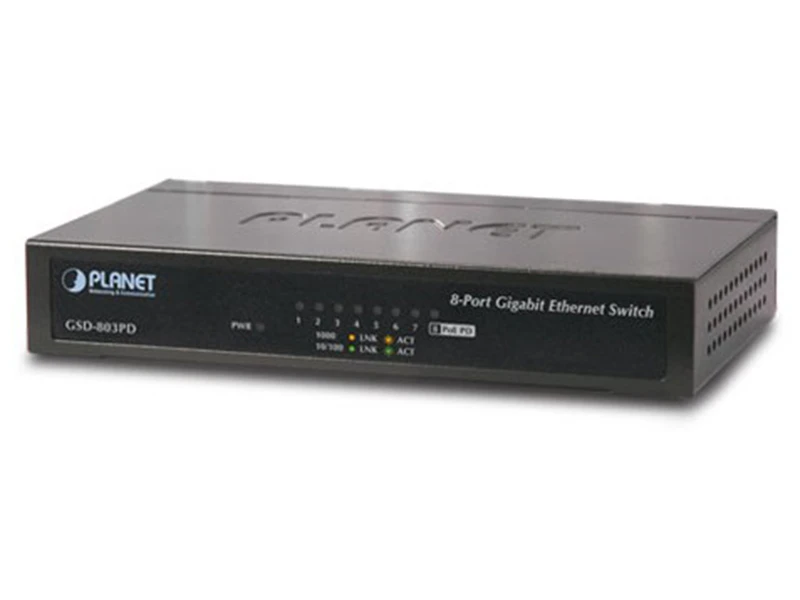

Planet PL GSD 803PD 10/100/1000 PoE Switch

Teknik Özellikler

Hardware Specifications
10/100/1000Base-T Ports
8 auto MDI/MDIX ports
Enclosure
Metal
LED Indication
System: Power (Green)
Per Port:
 • 1000 LNK/ACT (Orange)
 • 10/100 LNK/ACT (Green)
Dimensions (W x D x H)
155 x 86 x 26 mm
Weight
378g
Power Requirements
802.3af / at PoE 48V ~ 56V DC in-line power
DC 5V power adapter (Not included in standard package)
Power Consumption / Dissipation
3.3 watts / 11 BTU
Switch Specifications
Switch Processing Scheme
Store-and-Forward
MAC Address Table
8K entries
Flow Control
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric
16Gbps / non-blocking
Throughput (packet per second)
11.9Mpps @ 64Bytes
Network Cables
Cat. 3, 4, 5, 5e, 6 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.)
Standards Conformance
Regulation Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 (Ethernet), 10Base-T
IEEE 802.3u (Fast Ethernet), 100Base-TX
IEEE 802.3ab (Gigabit Ethernet), 1000Base-T
IEEE 802.3x (Full-Duplex Flow Control)
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High Power over Ethernet)
Environment
Temperature
Operating:
0~50 degrees C
Storage:
-10~70 degrees C
Humidity
Operating:
5~95%
Storage:
5~95% (non-condensing)



pdfPlanet PL GSD 803PD 10/100/1000 PoE Switch Pdf Dosyası554.19 KB



Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Çalışma Mesafesi : 200 Mt.
PoE Port Sayısı : Tooltip 1 Port
PoE Güç Bütçesi : 0-50 Watt
PoE : Hibrid
