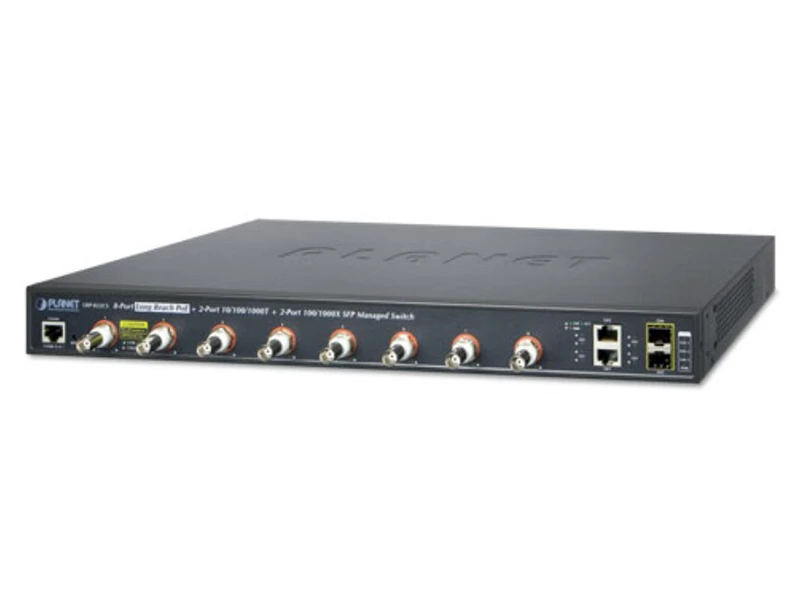

Planet PL LRP 822CS 10/100/1000 PoE Switch
Teknik Özellikler
Hardware Specifications | ||||
Ethernet Interfaces | ■ Copper: | |||
• 2 x 10/100/1000BASE-T RJ45 | ||||
• Auto-negotiation/ Auto-MDI/MDI-X | ||||
■ Fiber Optic: | ||||
• 2 x 100/1000BASE-X SFP slot | ||||
• Supports 100/1000Mbps dual mode and DDM | ||||
■ Jumbo Frame: | ||||
• 10Kbytes with GE1 to GE4 | ||||
Long Reach PoE Interfaces | ■ Connectivity: | |||
• 8 x BNC female connectors | ||||
Long Reach PoE over coaxial PSE (Power Source Equipment) | ||||
- BNC center pole : DC+ / Hi | ||||
- BNC shield : DC - / Lo | ||||
■ Power Output: | ||||
• Per port 54V DC, 36 watts max. | ||||
■ Total Power Budget: | ||||
• 240 watts (max.) @ 25 degrees C | ||||
• 200 watts (max.) @ 50 degrees C | ||||
■ Cabling: | ||||
• Coaxial cable: 75 ohm | ||||
• RG-6/U cable (Recommended) | ||||
■ Maximum Distance: | ||||
• Max. 200m with PoE+ output (1,640ft.) | ||||
• Max. 400m with PoE output (2,624ft.) | ||||
• Max. 1200m without PoE output (3,937ft.) | ||||
■ Long Reach Ethernet Standard: | ||||
• IEEE 1901 | ||||
■ Modulation Type: | ||||
• Wavelet-OFDM | ||||
■ Security: | ||||
• 128-bit AES encryption | ||||
■ Frequency Band: | ||||
• 2 ~ 28MHz | ||||
■ Performance: | ||||
RG-6/U | Data Rate* | LRP-101CE | ||
Distance | TX** | RX** | PoE Output@25 degrees C* | |
200m | 93.2Mbps | 92.0Mbps | 22.9W | |
400m | 82.4Mpbs | 73.6Mbps | 18.7W | |
600m | 77.2Mbps | 62.3Mbps | 15.0W | |
800m | 60.2Mbps | 54.3Mbps | 10.4W | |
1000m | 38.1Mbps | 38.1Mbps | 7.8W | |
1200m | 25.6Mbps | 25.0Mbps | --- | |
* The actual data rate and PoE output vary on the quality of the copper wire and environmental factors. The performance result above is based on the testing via the RG-6/U coaxial cable. | ||||
** TX: LRP-822CS to LRP-101CE; RX: LRP-101CE to LRP-822CS. | ||||
■ Multiple Nodes: | ||||
Up to 4 LRP extenders within 1km RG-6/U coaxial cable* | ||||
* The actual extender nodes vary on the quality of the copper wire and environmental factors. | ||||
■ LRP Compatibility: | ||||
LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender | ||||
Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | |||
Switch Architecture | Store-and-Forward | |||
Switch Fabric | 9.6Gbps / non-blocking | |||
Address Table | 8K entries | |||
Shared Data Buffer | 4.1 megabits | |||
Flow Control | IEEE 802.3x pause frame for full-duplex | |||
Back pressure for half-duplex | ||||
Reset Button | < 5 sec: System reboot | |||
> 5 sec: Factory default | ||||
LED | PWR, SYS, LNK, PoE-in-Use, 1000, LNK/ACK, Fan 1 Alert, Fan 2 Alert, | |||
PoE PWR Alert | ||||
Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height | |||
Weight | 3878g | |||
Power Requirements | AC 100~240V, 50/60Hz, auto-sensing | |||
ESD Protection | 6KV DC | |||
Power Consumption | 320 watts / 1091.8 BTU | |||
Enclosure | Metal | |||
Layer 2 Functions | ||||
Port Mirroring | TX / RX / both | |||
Many-to-1 monitor | ||||
VLAN | 802.1Q tagged-based VLAN | |||
Up to 256 VLAN groups, out of 4094 VLAN IDs | ||||
802.1ad Q-in-Q tunneling | ||||
Voice VLAN | ||||
Protocol VLAN | ||||
Private VLAN (Protected port) | ||||
GVRP | ||||
Link Aggregation | IEEE 802.3ad LACP and static trunk | |||
Supports 4 groups of 4-port trunk | ||||
Spanning Tree Protocol | STP / RSTP / MSTP | |||
IGMP Snooping | IGMP (v2/v3) Snooping | |||
IGMP Querier | ||||
Up to 256 multicast groups | ||||
MLD Snooping | MLD (v1/v2) Snooping, up to 256 multicast groups | |||
Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL | |||
QoS | 8 mapping ID to 8 level priority queues | |||
- Port number | ||||
- 802.1p priority | ||||
- 802.1Q VLAN tag | ||||
- DSCP field in IP packet | ||||
Traffic classification based, strict priority and WRR | ||||
Security | IEEE 802.1X – Port-based authentication | |||
Built-in RADIUS client to co-operate with RADIUS server | ||||
RADIUS / TACACS+ user access authentication | ||||
IP-MAC port binding | ||||
MAC filter | ||||
Static MAC address | ||||
DHCP Snooping and DHCP Option82 | ||||
STP BPDU guard, BPDU filtering and BPDU forwarding | ||||
DoS attack prevention | ||||
ARP inspection | ||||
IP source guard | ||||
Management Functions | ||||
Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c | |||
Firmware upgrade by HTTP / TFTP protocol through Ethernet network | ||||
Remote / Local Syslog | ||||
System log | ||||
LLDP protocol | ||||
SNTP | ||||
Secure Management Interfaces | SSH, SSL, SNMP v3 | |||
SNMP MIBs | RFC 1213 MIB-II | |||
RFC 1215 Generic Traps | ||||
RFC 1493 Bridge MIB | ||||
RFC 2674 Bridge MIB Extensions | ||||
RFC 2737 Entity MIB (Version 2) | ||||
RFC 2819 RMON (1, 2, 3, 9) | ||||
RFC 2863 Interface Group MIB | ||||
RFC 3635 Ethernet-like MIB | ||||
Standards Conformance | ||||
Regulation Compliance | FCC Part 15 Class A, CE | |||
Standards Compliance | IEEE 1901 Broadband Power Line | |||
IEEE 802.3 10BASE-T | ||||
IEEE 802.3u 100BASE-TX/100BASE-FX | ||||
IEEE 802.3z Gigabit SX/LX | ||||
IEEE 802.3ab Gigabit 1000T | ||||
IEEE 802.3x flow control and back pressure | ||||
IEEE 802.3ad port trunk with LACP | ||||
IEEE 802.1D Spanning Tree Protocol | ||||
IEEE 802.1w Rapid Spanning Tree Protocol | ||||
IEEE 802.1s Multiple Spanning Tree Protocol | ||||
IEEE 802.1p Class of Service | ||||
IEEE 802.1Q VLAN tagging | ||||
IEEE 802.1X Port Authentication Network Control | ||||
IEEE 802.1ab LLDP | ||||
RFC 768 UDP | ||||
RFC 793 TFTP | ||||
RFC 791 IP | ||||
RFC 792 ICMP | ||||
RFC 2068 HTTP | ||||
RFC 1112 IGMP version 1 | ||||
RFC 2236 IGMP version 2 | ||||
RFC 3376 IGMP version 3 | ||||
RFC 2710 MLD version 1 | ||||
RFC 3810 MLD version 2 | ||||
Environment | ||||
Operating | Temperature: 0 ~ 50 degrees C | |||
Relative Humidity: 5 ~ 95% (non-condensing) | ||||
Storage | Temperature: -10 ~ 70 degrees C | |||
Relative Humidity: 5 ~ 95% (non-condensing) |
Planet PL LRP 822CS 10/100/1000 PoE Switch Pdf Dosyası1.43 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 200-400 Watt
