Açıklama

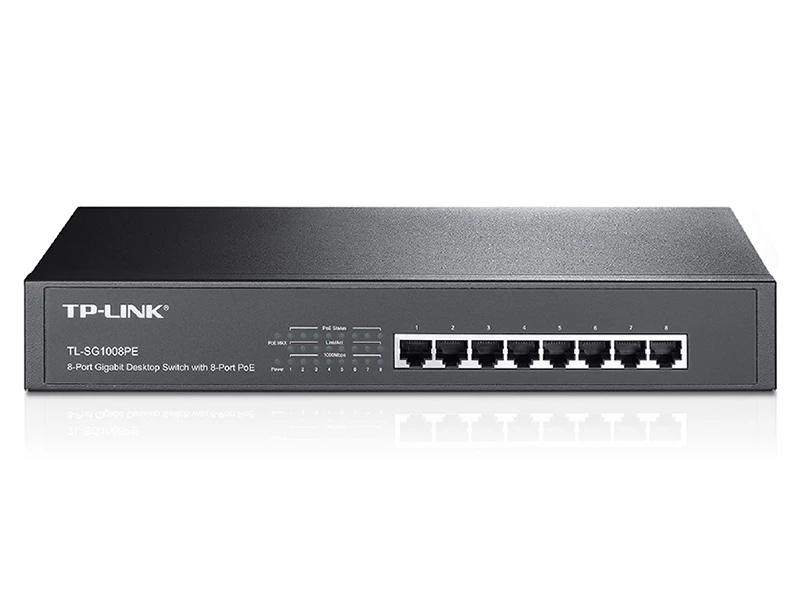

TP-LINK TL SG1008PE 10/100/1000 PoE Plus Switch
Özellikler
- Equipped with 8 PoE+ ports
- Supports PoE+ standard with total power budget of 124W and up to 30W per port
- Supports PoE+ IEEE 802.3af/at compliant devices
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 8K entry MAC address table of the TL-SG1008PE with auto-learning and auto-aging
- LED indicators to monitoring power, link, activity and speed
- Internal power supply
Teknik Özellikler
| Interface : 8 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX |
| Network Media : 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity : 1 |
| Power Supply : 100-240VAC, 50/60Hz |
| Power Consumption : Maximum (PoE on): 133.8W (220V/50Hz) |
| Maximum (PoE off): 9.8W (220V/50Hz) |
| PoE+ Ports(RJ45) : Standard: 802.3at/af compliant |
| PoE+ Ports : 8 Ports |
| Power Supply : 124W |
| Backbound Bandwidth : 16Gbps |
| Mac Address Table : 8K |
| Buffer Size : 2Mbits |
| Dimensions ( W x D x H ) : 11.6*7.1*1.7 in. (294*180*44 mm) |
| Certification : FCC, CE, RoHS |
| Package Contents : TL-SG1008PE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Consumption : 9.5 watts (max. no PD connected) |
| 140.1 watts (max. with 124w PD connected) |
| Environment : Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
Yazılım Özellikleri
- Advanced Features : Compatible With IEEE 802.3af/at Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
- Transfer Method : Store-And-Forward
TP-LINK TL SG1008PE 10/100/1000 PoE Plus Switch Pdf Dosyası540.46 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Rack Mount
Çalışma Mesafesi : 100Mt.
