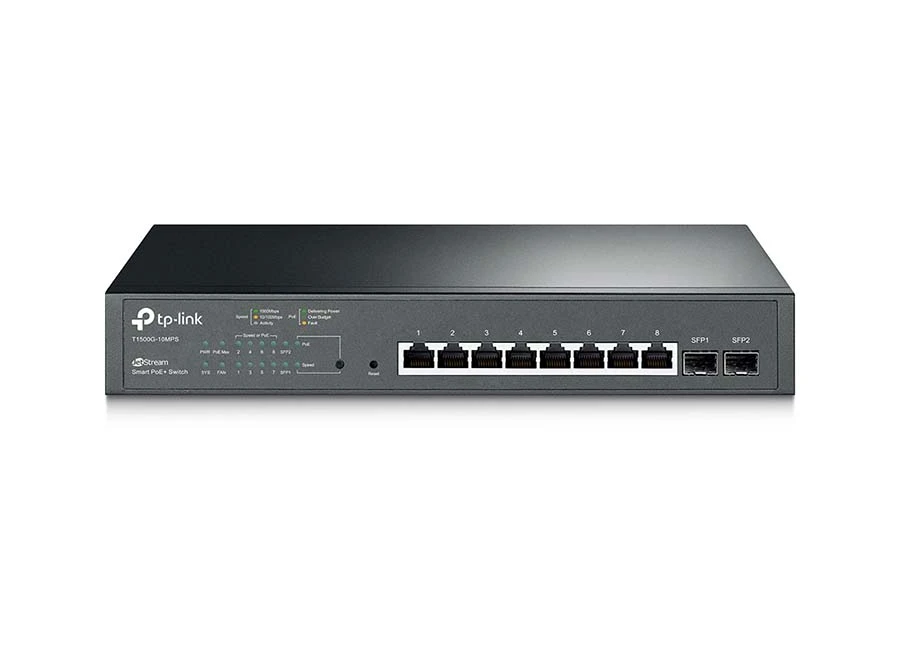

TP-Link TL1500G 10MPS PoE Switch
Özellikler
- Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 116W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image improves reliability and up-time of your network
Teknik Özellikler
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface | 8 10/100/1000Mbps RJ45 Ports, all supporting PoE+ |
2 100/1000Mbps SFP Slots | |
(Auto-Negotiation/Auto MDI/MDIX) | |
Network Media | 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) |
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) | |
100BASE-FX: MMF, SMF | |
1000BASE-X: MMF, SMF | |
Fan Quantity | 1 |
Power Supply | 100-240V, 50/60Hz |
Power Consumption | Maximum (PoE on): 136.6W (220V/50Hz) |
Maximum (PoE off): 20.6W (220V/50Hz) | |
PoE+ Ports(RJ45) | Standard: 802.3at/af compliant |
PoE+ Ports: 8 Ports | |
Power Supply: 116W | |
Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 15.61W (220V/50Hz with no PD connected) |
139.52W (220V/50Hz with 116W PD connected) | |
Max Heat Dissipation | 53.26 BTU/h (with no PD connected) |
476.04 BTU/h (with 116W PD connected) | |
PERFORMANCE | |
Switching Capacity | 20Gbps |
Packet Forwarding Rate | 14.9Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 512KB |
Jumbo Frame | 9KB |
SOFTWARE FEATURES | |
Quality of Service | • 802.1p CoS/ DSCP priority |
• 8 priority queues | |
• Priority Schedule Mode | |
- SP (Strict Priority) | |
- WRR (Weighted Round Robin) | |
• Queue Weight Config | |
• Bandwidth Control | |
- Port/Flow based Rating Limit | |
• Smoother Performance | |
• Actions for flows | |
- Mirror(to supported interface) | |
- Redirect(to supported interface) | |
- Rate Limit | |
- QoS Remark | |
• Storm Control | |
- Multiple Control Modes(kbps/ratio/pps) | |
- Broadcast/Multicast/Unknown-Unicast Control | |
L2 Features | • Link Aggregation |
- static link aggregation | |
- Up to 8 aggregation groups and up to 8 ports per group | |
- 802.3ad LACP | |
• Spanning Tree Protocol | |
- 802.1D STP | |
- 802.1w RSTP | |
- 802.1s MSTP | |
- STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect | |
• Loopback Detection | |
• Flow Control | |
- 802.3x Flow Control | |
• Mirroring | |
- Port Mirroring | |
- One-to-One | |
- Many-to-One | |
- Flow-Based | |
- Ingress/Egress/Both | |
- CPU Mirroring | |
• Device Link Detect Protocol(DLDP) | |
L2 Multicast | • 512 IPv4,IPv6 shared multicast groups |
• IGMP Snooping | |
- IGMP v1/v2/v3 Snooping | |
- Fast Leave | |
- IGMP Snooping Querier | |
- IGMP Authentication | |
- Static Group Config | |
• MLD Snooping | |
- MLD v1/v2 Snooping | |
- Fast Leave | |
- MLD Snooping Querier | |
- Static Group Config | |
• Multicast VLAN Registration | |
• Multicast Filtering | |
IPv6 Support | • IPv6 Dual IPv4/IPv6 |
• Multicast Listener Discovery(MLD) Snooping | |
• IPv6 neighbor discovery (ND) | |
• Path maximum transmission unit (MTU) discovery | |
• Internet Control Message Protocol (ICMP) version 6 | |
• TCPv6/UDPv6 | |
• IPv6 applications | |
- DHCPv6 Client | |
- Ping6 | |
- Tracert6 | |
- Telnet(v6) | |
- IPv6 SNMP | |
- IPv6 SSH | |
- IPv6 SSL | |
- Http/Https | |
- IPv6 TFTP | |
VLAN | • VLAN Group |
- Max. 4K VLAN Groups | |
• 802.1Q tag VLAN | |
• MAC VLAN | |
• Protocol VLAN | |
• GVRP | |
• Voice VLAN | |
Access Control List | • Support up to 230 entries |
• Time-Range | |
- Time Slice | |
- Week Time-Range | |
- Absolute Time-Range | |
- Holiday | |
• Time-based ACL | |
• MAC ACL | |
- Source MAC | |
- Destination MAC | |
- VLAN ID | |
- User Priority | |
- Ether Type | |
• IP ACL | |
- Source IP | |
- Destination IP | |
- IP Protocol | |
- TCP Flag | |
- TCP/UDP Source Port | |
- TCP/UDP Destination Port | |
- DSCP/IP TOS | |
• IPv6 ACL | |
• Combined ACL | |
• Rule Operation | |
- Permit/Deny | |
• Policy Action | |
- Mirror | |
- Rate Limit | |
- Redirect | |
- QoS Remark | |
• ACL Rules Binding | |
- Port Binding | |
- VLAN Binding | |
Security | • AAA |
• 802.1X | |
- Port based authentication | |
- MAC(Host) based authentication | |
- Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP | |
- MAB | |
- Guest VLAN | |
- Support Radius authentication and accountability | |
• IP/IPv6-MAC Binding | |
- 512 Binding Entries | |
- DHCP Snooping | |
- DHCPv6 Snooping | |
- ARP Inspection | |
- ND Detection | |
• IP Source Gurad | |
- 253 Entries | |
- Source IP+Source MAC | |
• IPv6 Source Gurad | |
- 183 Entries | |
- Source IPv6 Address+Source MAC | |
• DoS Defend | |
• Static/Dynamic/Permanent Port Security | |
- Up to 64 MAC addresses per port | |
• Broadcast/Multicast/Unicast Storm Control | |
- kbps/ratio/pps control mode | |
• Port Isolation | |
• Secure web management through HTTPS with SSLv3/TLS1.0 | |
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
• IP/Port/MAC based access control | |
Management | • Web-based GUI |
• Command Line Interface(CLI) through console port, telnet | |
• SNMPv1/v2c/v3 | |
• SNMP Trap/Inform | |
• RMON (1,2,3,9 groups) | |
• SDM Template | |
• DHCP/BOOTP Client | |
• Dual Image, Dual Configuration | |
• CPU Monitoring | |
• Cable Diagnostics | |
• EEE | |
• System Log | |
• 802.1ab LLDP/ LLDP-MED | |
MIBs | • MIB II (RFC1213) |
• Interface MIB (RFC2233) | |
• Ethernet Interface MIB (RFC1643) | |
• Bridge MIB (RFC1493) | |
• P/Q-Bridge MIB (RFC2674) | |
• RMON MIB (RFC2819) | |
• RMON2 MIB (RFC2021) | |
• Radius Accounting Client MIB (RFC2620) | |
• Radius Authentication Client MIB (RFC2618) | |
• Remote Ping, Traceroute MIB (RFC2925) | |
• Support TP-Link private MIBs | |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | T1500G-10MPS |
Power Cord | |
Installation Guide | |
Resource CD | |
Rackmount Kit | |
Rubber Feet | |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); |
Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
Teknik Kısa
PoE : PoE
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
