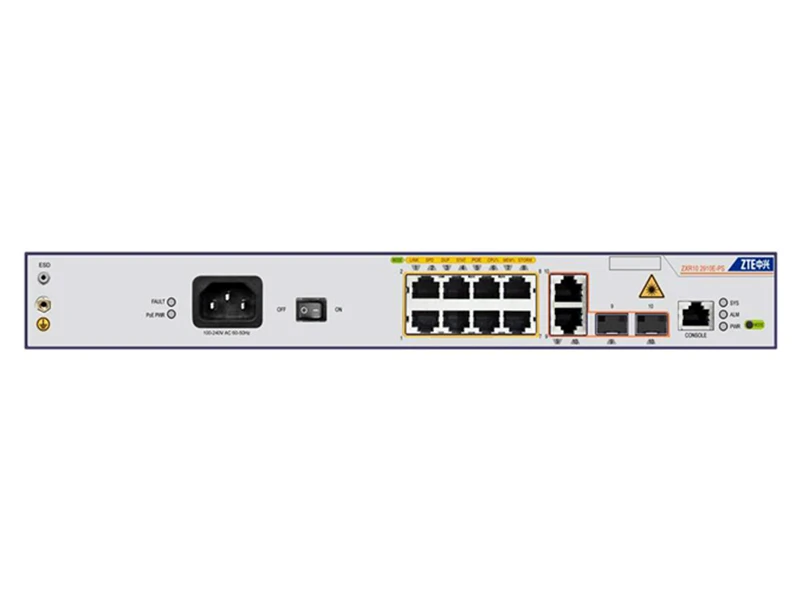

ZTE RS 2910E PS PoE Switch
Özellikler
Teknik Özellikler
| Interface Combination |
| Fixed interfaces |
| 8 FE RJ45 ports (POE/POE+)+2 GE Combo ports |
| Basic Parameters |
| Switching Capacity |
| 5.6Gbps |
| Packet Forwarding Rate |
| 4.2Mpps |
| MAC table Depth |
| 16K |
| Features |
| L2 Features |
| IEEE 802.1q VLAN,IEEE 802.1p, IEEE 802.3ad, STP, RSTP, MSTP, Selective QinQ, VLAN translation, PVLAN, DHCP Snooping, 802.1x |
| L3 Features |
| Static Routing |
| IPv6 |
| IPv6 Ping,IPv6 Telnet, ND(Neighbor Discovery), MLD Snooping, DHCPv6 Snooping,IPv6 ACL |
| Multicast |
| IGMP Snooping, Filtering, Proxy and Fast Leave, MVR, SGR (Static Group Register), UGAC (User Group Access Control), UGAR (User Group Access Record) |
| QOS |
| Marking, modification of Qos priority and mapping between 802.1p, IP DSCP. 8 hardware-based queues per port, SP, WRR, SP+WRR queue scheduling mechanisms, Policing/shaping based on port/flow, Tail-Drop |
| Security |
| CPU anti-attack, CPU overload protection, STP Root Guard, BPDU guard, ARP attack protection, IP source Guard, DAI, DHCP snooping, DHCP option82, Bidirectional ACL |
| Reliability |
| LACP, ZESS, ZESR/ZESR+ |
| Enhanced Features |
| Bidirectional ACL, M-BUTTON, Zero-Configuration, POE/POE+ |
| Equipment Management |
| RS232 Console (RJ45), 2928E-PS Supports Ethernet management port, CLI, Telnet, SSH, Local and Remote Authentication of User, Web management, SNMP, NetNumen U31, Cluster Management(ZGMP) |
| Physical Parameters |
| Dimensions(H*W*D) |
| 43.6mm*340mm*220mm |
| Maximum Weight |
| 3kg |
| AC power supply |
| 100V~240V, |
| 50Hz~60Hz |
| Maximum power consumption |
| 306W (Among which system power 66W, POE power output 240W) |
| Heat dissipation pattern |
| Fan cooling |
| Heat dissipation |
| 185 BTU/h |
| Temperature, humidity |
| Working temperature: -5oC~+50oC, humidity: 10%~90% |
| Working altitude |
| 3000 meters |
| MTBF/MTTR |
| 100000 hours/ <30 minutes="" --30="" --30--=""> |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 200-400 Watt
