Ürün arama
Açıklama

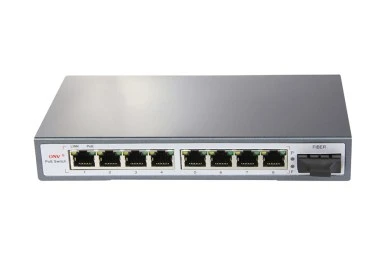

ONV ONV-POE31008PLD PoE Switch
Özellikler
Teknik Özellikler
| Model | ONV-POE31008PLD |
| Interface Characteristics | |
| Fixed Port | 8*10/100Base-TX PoE ports (Data/Power) |
| 1*10/100Base-TX uplink RJ45 port (Data) | |
| Ethernet Port | Port 1-9 support 10/100 Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Function Switch | E is the "ON" state, port 1-8 can support long-distance transmission 10M/250m and VLAN transmission mode; when "OFF", 100 meters transmission. |
| D is the "ON" state, port 1-8 can support AI self-healing mode; when "OFF", no communication self-healing function. | |
| P is the "ON" state, POE outputs total power and priority indication mode; when "OFF", no power indication function. | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 1.8Gbps |
Forwarding Rate@64byte | 1.34Mpps |
| MAC | 2K |
| Buffer Memory | 1.25M |
| Jumbo Frame | 1632byte |
| LED Indicator | Power: PWR (green), Network: Link (yellow), POE: PoE (green) |
| PoE & Power Supply | |
| PoE Port | Port 1 to 8 IEEE802.3af/at @ POE |
| Power Supply Pin | Default 1/2 (+), 3/6 (-), optional 4/5(+), 7/8(-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 110W/ (DC52V) |
| Power Consumption | Standby<5W, Full load<110W |
| Power Supply | External power adapter, AC100~240V 50-60Hz 2.0A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
| Dimension (L*W*H) | 191*105*29mm |
| Net /Gross Weight | <0.5kg / <1.0kg |
| Installation | Desktop.Wall-mounted |
| Certification & Warranty | |
| Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950, FCC Part 15 Class B, RoHS |
| Warranty | 3 years, lifelong maintenance. |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
Montaj Tipi : Desk Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
