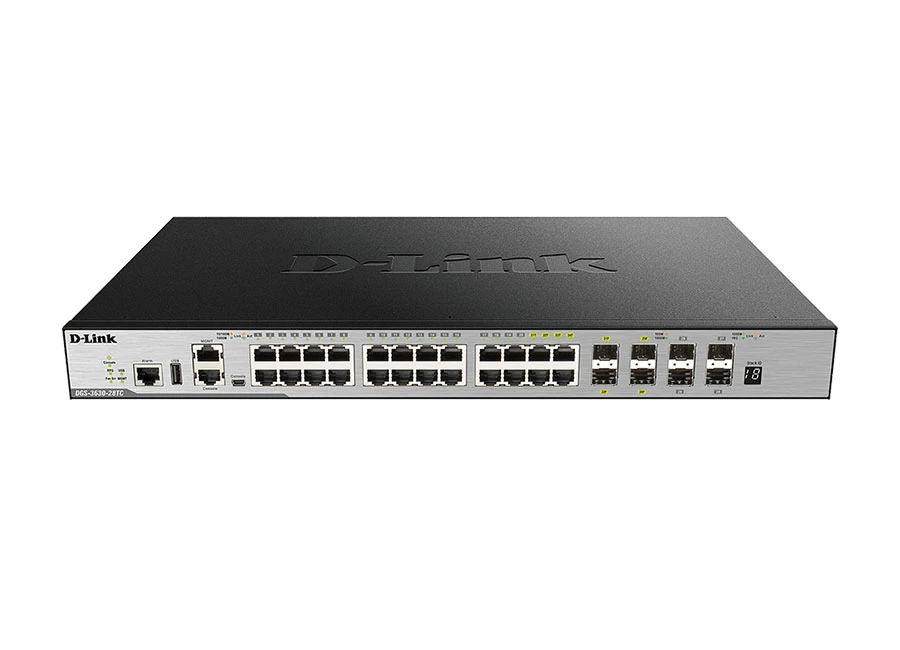

D-Link DGS-3630-28TC Layer 3 Gigabit Switch
Özellikler
- 20 x 10/100/1000BASE-T ports
- 4 x Combo 10/100/1000BASE-T/SFP ports
- 4 x 10G SFP+ ports
- 6 kV surge protection on all RJ-45 access ports
- Switch Resource Management (SRM) for flexible management of system resources
- Redundant Power Supply (RPS) support
- MPLS L2VPM/L3 VPN support
- Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
- SDN-enabled switch, compatible with Openflow 1.3
Teknik Özellikler
| 1000Base-T Interface | 20 |
| 10G SFP+ Interface | 4 |
| Combo 1000Base-T/SFP | 4 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| RJ-45 Management Port | Yes |
| Alarm Port | Yes |
| USB Port | Yes |
| Switching Capacity | 128 Gbps |
| Max. Packet Forwarding Rate | 95.24 million packets |
| Dimension | 441mm x 259.8mm x 44mm |
| Weight | 3.74 kg |
| Operation Temperature | -5-50°C |
| Storage Temperature | -40 - 70 ˚C |
| Operation Humidity | 10%-95% RH |
| Storage Humidity | 5% ~ 95% RH |
| Operating Altitude | Up to 2000 M |
| Maximum Power Consumption | 42.4 Watt |
| Packet Buffer Size | 4 MB |
| FAN | Yes |
| Power Input | AC Input: 100 – 240 VAC, 50-60 Hz |
| Redundant Power Supply | Yes |
| Physical Stacking | Yes |
D-Link DGS-3630-28TC Layer 3 Gigabit Switch Pdf Dosyası1000.42 KB
