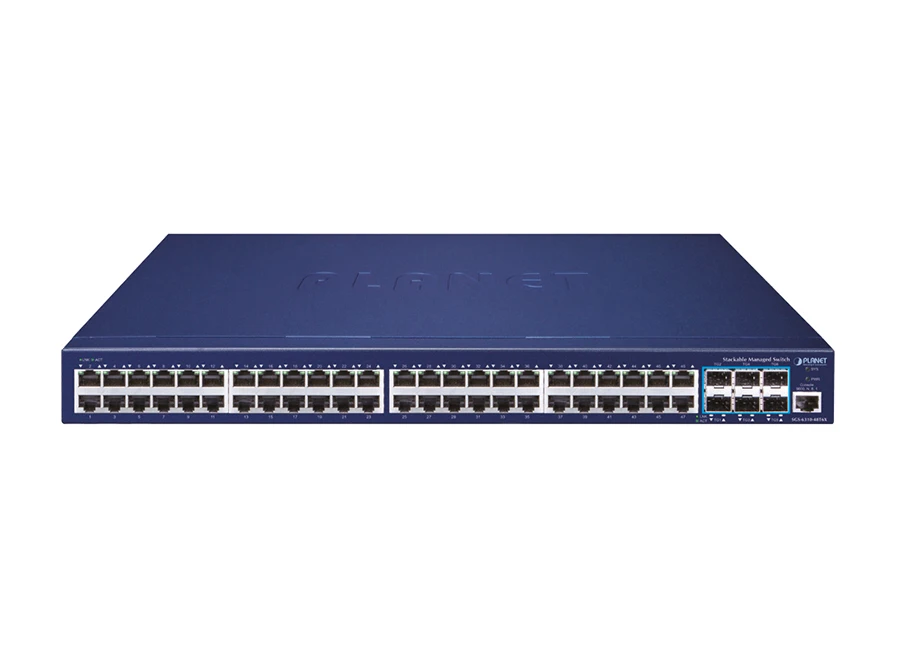

Planet SGS-6310-48T6X L3 Ethernet Switch
Teknik Özellikler
| Hardware Specifications | |
| Copper Ports | 48 10/100/1000BASE-T RJ45 copper ports |
| 10G SFP+ Ports | 6 10GBASE-SR/LR SFP+ interface |
| Backward compatible with 1000BASE-SX/LX/BX SFP transceiver | |
| Console Port | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| DRAM | 512Mbytes |
| Flash Memory | 16Mbytes |
| Dimensions (W x D x H) | 440 x 280 x 44 mm |
| Weight | 4300g |
| Power Consumption | 48 watts/ 163.68 BTU |
| Power Requirements- AC | AC: 100~240V, 50/60Hz |
| Fan | 2 |
| LED | System: |
| SYS, PWR Green | |
| Ports: | |
| 10/100/1000T RJ45 Port: LNK/ACT Green | |
| 1/10G SFP+ Port: LNK/ACT Green | |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 216Gbps/non-blocking |
| Switch Throughput | 160.7Mpps |
| Address Table | 16K MAC address table with auto learning function |
| ARP Table | 2K |
| Routing Table | 2040 |
| VLAN Interface | 64 |
| IP Interface | 64 |
| ACL Table | 1024 |
| Shared Data Buffer | 1.5MB |
| Jumbo Frame | 9KBytes |
| Flow Control | Back pressure for half duplex |
| IEEE 802.3x pause frame for full duplex | |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | Static route |
| RIPv1/v2 | |
| OSPFv2 | |
| Hardware-based Layer 3 routing | |
| Routing Features | VRRP v1/v3 |
| ARP | |
| ARP Proxy | |
| IGMP Proxy | |
| IPv6 Layer 3 Functions | |
| IP Routing Protocol | RIPng |
| OSPFv3 | |
| IPv6 LPM Routing | |
| IPv6 Policy-based Routing (PBR) | |
| IPv6 VRRPv3 | |
| IPv6 RA (Router Advertisement) | |
| Hardware-based Layer 3 routing | |
| Routing Features | Configured Tunnels |
| GRE Tunnel | |
| ISATAP Tunnel,6 to 4 tunnel | |
| Manual tunnel | |
| Other | ICMPv6, IPv6 ND |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
| Flow control disable/enable | |
| Bandwidth control on each port | |
| Port loopback detect | |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and |
| auto negotiation status | |
| VLAN | 802.1Q tagged VLAN, up to 4K VLAN groups |
| 802.1ad Q-in-Q (VLAN stacking) | |
| GVRP for VLAN management | |
| Private VLAN Edge (PVE) supported | |
| Protocol-based VLAN | |
| MAC-based VLAN | |
| Spanning Tree Protocol | STP, IEEE 802.1D (Classic Spanning Tree Protocol) |
| RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) | |
| MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) | |
| Supports BPDU and root guard | |
| Multicast | IPv4 IGMP v1/v2/v3 snooping |
| Querier mode support | |
| IPv6 MLD v1 snooping | |
| Multicast VLAN Register (MVR) | |
| Up to 1024 multicast groups (IPv4 + IPv6) | |
| Link Aggregation | IEEE 802.3ad LACP/static trunk |
| Supports 64 groups with 8 ports per trunk group | |
| Bandwidth Control | TX/RX/Both |
| At least 64Kbps step | |
| QoS | 8 priority queues on all switch ports |
| Supports strict priority and Weighted Round Robin (WRR) CoS policies | |
| Traffic classification: | |
| CAR, HQoS, MAC/IP/TCP/UDP | |
| IEEE 802.1p CoS/ToS | |
| IPv4/IPv6 DSCP | |
| Port-based WRR | |
| Tail-Drop, WRED, flow monitoring and traffic shaping | |
| Ring | Supports ITU-G G.8032 ERPS |
| Recovery time < 10ms @ 3units | |
| Recovery time < 50ms @ 16units | |
| Security Functions | |
| Access Control List | Supports Standard and Expanded ACL |
| IP-based ACL/MAC-based ACL | |
| Time-based ACL | |
| Up to 1024 entries | |
| Security | Port isolation, Port security, |
| “IP+ MAC+ port” binding | |
| MAC sticky DAI & IP source guard, PPPoE+ | |
| L2/L3/L4 ACL flow identification | |
| Filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood | |
| Broadcast / multicast / unknown unicast storm-control | |
| Supports MD5, SHA-256, RSA-1024, AES256 | |
| AAA Authentication | TACACS+ and IPv4/IPv6 over RADIUS |
| Network Access Control | IEEE 802.1x port-based network access control |
| MAC-based authentication | |
| RADIUS/TACACS authentication | |
| Switch Management Functions | |
| System Configuration | Console and Telnet |
| Web browser | |
| SNMP v1, v2c | |
| Secure Management Interfaces | SSHv1/v2, TLSv1.2 and SNMPv3 |
| System Management Event ManagementHardware Stacking | Supports both IPv4 and Ipv6 addressing |
| Supports the user IP security inspection for Ipv4/Ipv6 SNMP | |
| Supports MIB and TRAP | |
| Supports RMON 1, 2, 3, 9 four groups | |
| Supports IPv4/IPv6 FTP/TFTP | |
| Supports IPv4/IPv6 NTP | |
| Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password | |
| The right configuration for users to adopt RADIUS server’s shell management | |
| Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area | |
| Supports IPv4 and IPv6 DHCP server | |
| Supports Syslog server for IPv4 and IPv6 | |
| 8 members max. | |
| 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces | |
| Hardware Stacking Compatibility List | SGS-6310-24T4X |
| SGS-6310-24P4X | |
| SGS-6310-16S8C4XR | |
| SGS-6310-48T6X | |
| SGS-6310-48P6XR | |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1215 Internet Engineering Task Force | |
| RFC 1271 RMON | |
| RFC 1354 IP-Forwarding MIB | |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ether-like MIB | |
| RFC 1907 SNMP v2 | |
| RFC 2011 IP/ICMP MIB | |
| RFC 2012 TCP MIB | |
| RFC 2013 UDP MIB | |
| RFC 2096 IP forward MIB | |
| RFC 2233 if MIB | |
| RFC 2452 TCP6 MIB | |
| RFC 2454 UDP6 MIB | |
| RFC 2465 IPv6 MIB | |
| RFC 2466 ICMP6 MIB | |
| RFC 2573 SNMP v3 notify | |
| RFC 2574 SNMP v3 vacm | |
| RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) | |
| RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) | |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3z Gigabit 1000BASE-SX/LX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3ae 10Gb/s Ethernet | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1X port authentication network control | |
| IEEE 802.1ab LLDP | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet PLUS | |
| RFC 768 UDP | |
| RFC 783 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| RFC 2328 OSPF v2 | |
| RFC 1058 RIP v1 | |
| RFC 2453 RIP v2 | |
| ITU-T G.8032 ERPS Ring | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 10 ~ 90% (non-condensing) | |
| Storage | Temperature: -20 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
