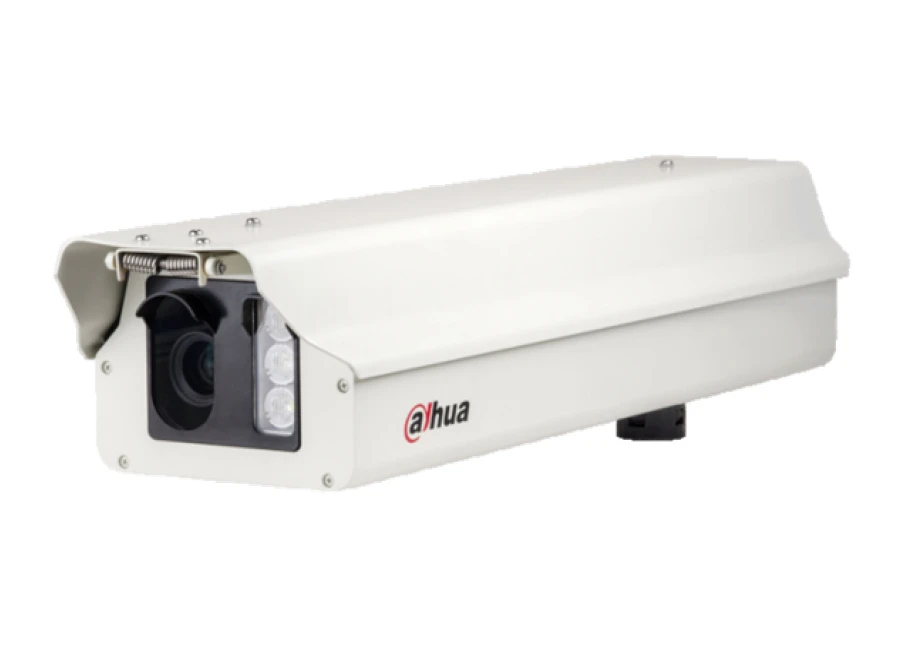

Dahua ITC602 RU1A IRHL Trafik Bullet Kamera
Özellikler
- All-in-one camera(EXCEPT LENS)
- Built-in HD camera ,heater,lamp, easy to install.
- High performance CCD image sensor, high color reduction degree, high sensitivity
- Embedded integration component design, built-in a variety of algorithms
- Rich variety of signal, data and communication interface
- Saving 30% power consumption compared to traditional solutions
- Built-in thunder-proof module to prevent being struck by lightning
- Temperature -40°C~+80°C, Humidity 10%~90%, suitable for the rough work scene
Teknik Özellikler
Technical Data | |
Image Sensor | 1 progressive CCD |
Max. Resolution | 6.8MP, 3392 (H) ×2008 (V) |
Lenses | C-Model. Automatic control (P-IRIS drive) |
Video Frame | Up to 25 fps |
Camera Speed Shutter | 1/25~ 1/100000 |
Day/Night | Auto ICR (with polarized lens and infrared filter) |
Lamp | White /IR light |
Video Signal Interface | 1 ×CVBS port and 2 ×100/1000M Ethernet port |
Digital I/O | 2 Relay output – 1 optical coupling input – 8 optical coupling input |
Extra Interface | 2 ×Mini USB and 1 ×SD interface |
Speed Range | 0~200km/h |
Power,Size,Environment | |
Power | AC 90~265V, Max. 87W w/o adapter(Camera: Max. 15W, LED Lamp: Max. 6W,Fan: Max. 16W, Heater Max. 50W) |
Dimensions | 540mm×205mm×143mm |
Ingress Protection | IP66 |
Working Environment | Temperature -40°C~+80°C, Humidity 10%~90% |
Software Features | |
License Plate Recognition (LPR) | Embedded |
Monitor Lane | 1-3 lanes |
Video Compression | H.264H, H.264M, H.264B, MJEPG |
Remote control function | Configure through WEB client |
OSD information superimposed | Information of the picture includes time and place (channel address), lane information (number,/direction), plate information(license plate), vehicle information (speed and the type of vehicle), illegal (illegal event name and the illegal code) and so on. |
Image Records Tamper-resistance | Video/Image with watermark tech and check function |
Certificaions | |
CE | SECE1606281 |
FCC | SEFD1606281 |
Dahua ITC602 RU1A IRHL Trafik Bullet Kamera Pdf Dosyası271.89 KB
