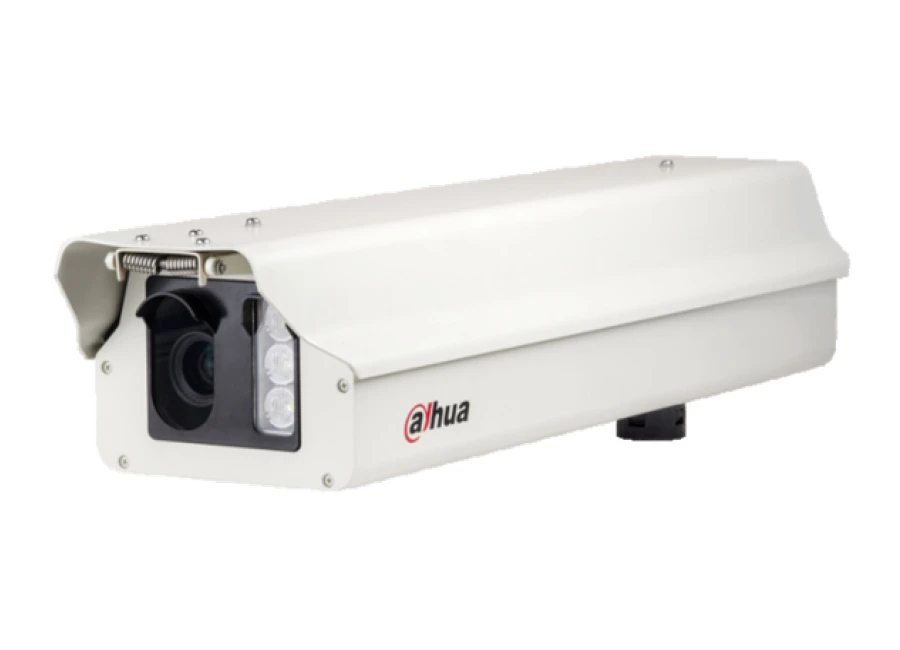

Dahua ITC602 RU1A HL Trafik Bullet Kamera

All-in-one camera(EXCEPT LENS)
Built-in HD camera ,heater,lamp, easy to install.
High performance CCD image sensor, high color reduction degree, high sensitivity
Embedded integration component design, built-in a variety of algorithms
Rich variety of signal, data and communication interface
Saving 30% power consumption compared to traditional solutions
Built-in thunder-proof module to prevent being struck by lightning
Temperature -40°C~+80°C, Humidity 10%~90%, suitable for the rough work scene

Technical Data
Image Sensor	1 progressive CCD
Max. Resolution	6.8MP, 3392 (H) ×2008 (V)
Lenses	C-Model. Automatic control (P-IRIS drive)
Video Frame	Up to 25 fps
Camera Speed Shutter	1/25~ 1/100000
Day/Night	Auto ICR (with polarized lens and infrared filter)
Lamp	White /IR light
Video Signal Interface	1 ×CVBS port and 2 ×100/1000M Ethernet port
Digital I/O	2 Relay output – 1 optical coupling input – 8 optical coupling input
Extra Interface	2 ×Mini USB and 1 ×SD interface
Speed Range	0~200km/h
Power,Size,Environment
Power	AC 90~265V, Max. 87W w/o adapter(Camera: Max. 15W, LED Lamp: Max. 6W,Fan: Max. 16W, Heater Max. 50W)
Dimensions	540mm×205mm×143mm
Ingress Protection	IP66
Working Environment	Temperature -40°C~+80°C, Humidity 10%~90%
Software Features
License Plate Recognition (LPR)	Embedded
Monitor Lane	1-3 lanes
Video Compression	H.264H, H.264M, H.264B, MJEPG
Remote control function	Configure through WEB client
OSD information superimposed	Information of the picture includes time and place (channel address), lane information (number,/direction), plate information(license plate), vehicle information (speed and the type of vehicle), illegal (illegal event name and the illegal code) and so on.
Image Records Tamper-resistance	Video/Image with watermark tech and check function
Certificaions
CE	SECE1606281
FCC	SEFD1606281
