Açıklama

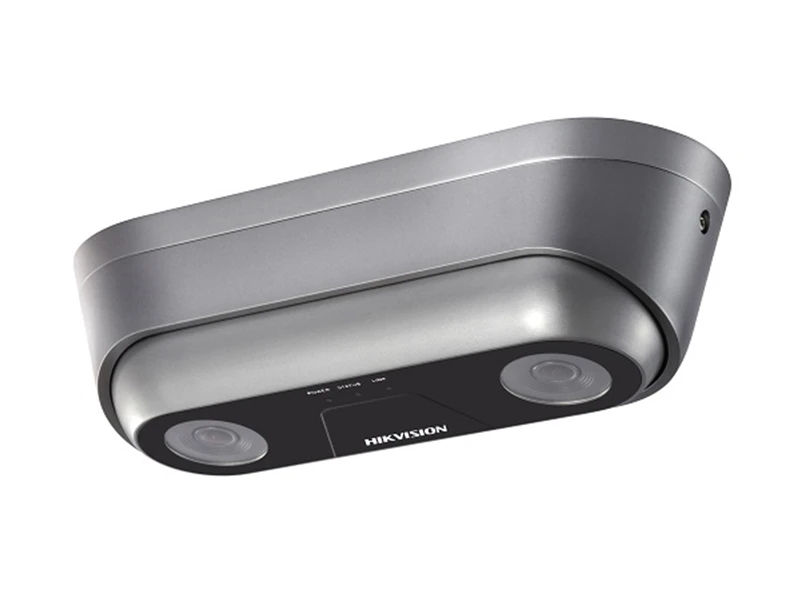

Hikvision iDS 2CD6810F IV/C Analitik Ip Kamera
Özellikler
- Support real-time people entering/exiting/passing by data.
- Support statistical traffic report based on configurable time interval (day/week/month/year).
- Flash memory storing people counting data
- 1/3'' progressive scan CMOS sensor
- Support Smart Codec, high bandwidth efficiency, low time delay and optimized bit rate.
- Support 3D DNR.
- Black and white image
- IP66
- Up to 5m IR
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Signal System | PAL/NTSC |
Shutter time | 1/25 s – 1/10,000 s |
Lens | 2.8/4mm optional |
Lens Mount | M12 |
Adjustment Range | 2.8 mm: horizontal FOV 83°, vertical FOV 68° |
4 mm: horizontal FOV 63°, vertical FOV 55° | |
Digital noise reduction | 3D DNR |
Compression Standard | |
Video Compression | H.264 |
H.264 code profile | Baseline Profile/Main Profile |
Video bit rate | 32Kbps~8Mbps |
Dual Stream | Yes |
Image | |
Max. Image Resolution | 640 × 960 |
Frame Rate | Main stream: |
50Hz: 25fps (640 × 480) | |
60Hz: 24fps (640 × 480) | |
Sub Stream | 50Hz: 25fps (640 × 960) |
60Hz: 24fps (640 × 960) | |
Image Settings | Brightness is adjustable by client software or web browser |
3D DNR | Support |
Network | |
Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
mask, Watermark, IP address filtering | |
System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
Intelligent | |
People Counting | Support separate counting of people entering, exiting, and passing by |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port, 1 RS-485 interface |
Alarm | 2 inputs, 1 output (up to 24 VDC 1 A, or 110 VAC 500 mA) |
Reset Button | Yes |
General | |
IR Range | Up to 5m |
Operation Condition | -30°C to +60°C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption | 12 VDC, max. 7 W, 0.6A |
PoE(802.3af, 36 V to 57 V), max. 7 W, 0.2 A to 0.13 A | |
Weather Proof | -V: IP66 |
Dimensions | Camera: 226 × 88 × 64 mm (8.88″ × 3.48″ × 2.50″) |
Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″) | |
Weight | Approx.850 g (1.87 lb.), 1050 g (2.31 lb.) with package |
Hikvision iDS 2CD6810F IV C Analitik Ip Kamera Pdf Dosyası798.74 KB
Teknik Kısa
Depolama : Var
Ses : Var
