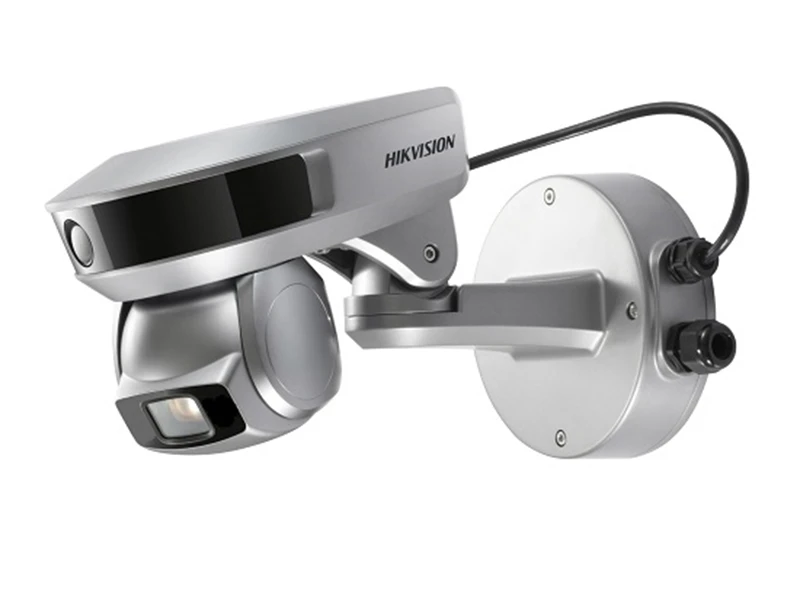

Hikvision iDS 2PT9122IX DE/S Analitik Ip Kamera
Özellikler
Distant View Camera
- 1/2.7" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Horizontal field of view: 92°
- Min. illumination:
- Color: 0.002 Lux@(F1.0, AGC ON),
- B/W: 0.0005 Lux@(F1.0, AGC ON)
Tracking PTZ Camera
- 1/2.7" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Horizontal field of view: 61.3° to 6.26°
- Pan and tilt range: 210° (Pan), -22° to 22° (Tilt)
- Min. illumination:
- Color: 0.0035 Lux@(F1.6, AGC ON)
- 0 Lux with IR
- 10× optical zoom, 16× digital zoom
Teknik Özellikler
Panoramic Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Max. Image Resolution | 1920 × 1080 |
Min. Illumination | Color: 0.002 Lux@(F1.0, AGC ON), B/W: 0.0005 Lux@(F1.0, AGC ON) |
Lens | 4.0 mm |
Angle of View | 92° |
Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
50fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) |
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
Image Compression | H.265+/H.265/H.264+/H.264/MJPEG |
Basic Event Detection | Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login |
Smart Image Enhancement | Digital WDR, Defog, HLC, EIS, BLC |
Tracking PTZ Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Max. Image Resolution | 1920 × 1080 |
Minimum Illumination | Color: 0.0035 Lux@(F1.6, AGC ON), 0 Lux with IR |
Angle of View | 61.3° to 6.26° (Wide-Tele) |
Zoom Speed | Approx.2.5 s (Optical Wide-Tele) |
Focal Length | 5 mm to 50 mm, 10× optical zoom |
Day & Night | IR Cut Filter |
Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
50fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) |
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
Image Compression | H.265+/H.265/H.264+/H.264/MJPEG |
WDR | Digital WDR |
Scheduled Task | Preset/Patrol Scan/Dome Reboot/Dome Adjust/Aux Output |
Pan and Tilt | |
Pan Range | Pan: 210° |
Pan Speed | Pan Manual Speed: 0.1°/s to 200°/s (Configurable), Pan Preset Speed: 300°/s |
Tilt Range | Tilt: -22° to 22° |
Tilt Speed | Tilt Manual Speed: 0.1°/s to 120°/s (Configurable), Tilt Preset Speed: 120°/s |
Number of Preset | 300 |
Patrol | 8 patrols, up to 32 presets per patrol |
Park Action | Preset/Patrol Scan |
Power-off memory | Support |
System Function | |
IR | PTZ support, IR distance: 100 m; IR brightness and angle are adjustable. |
Calibration Mode | Auto/Manual |
PTZ Linkage | Support |
One-touch Link | Support |
Smart Detection | Detects human body, face, and vehicle automatically. |
Input & Output | |
Audio Input | 1-ch audio input |
Audio Output | 1-ch audio output |
Network | |
Audio compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
Application programming | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
System Integration | |
Security Measures | User authentication (ID and PW); Host authentication (MAC address); IP address filtering |
Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
Ethernet | 1 RJ45 10 M/100 M Ethernet |
Onboard Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
General | |
Power supply | 12 VDC & Hi-PoE |
Consumption (without hard disk) | 45 W Max. (IR 6 W Max.) |
Working temperature | Outdoor: -40°C to 70°C (-40°F to 158°F) |
Working humidity | ≤ 90% |
Protection Level | IP66 Standard, TVS 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
Dimensions (W×D×H) | 195.1 mm × 280.8 mm × 174.8 mm (7.68" × 11.06" × 6.88" ) |
Weight | Approx. 2.5 kg (5.51 lb) |
Hikvision iDS 2PT9122IX DE S Analitik Ip Kamera Pdf Dosyası712.91 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
